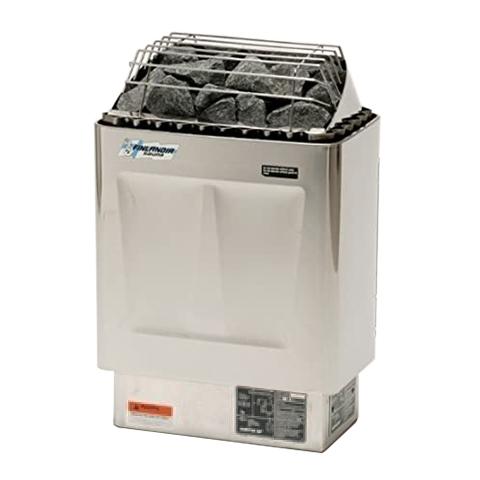

Finlandia FIN Series Sauna Heater - 4.5kW, 6kW, 8kW
*Stones included.
-
FIN-45 (4.5kW) - engineered for home saunas up to 210 cubic feet (CF).
-
FIN-60 (6kW) - engineered for home saunas up to 300 cubic feet (CF).
-
FIN-80 (8kW) - engineered for sauna rooms up to 425 cubic feet (CF).
DESCRIPTION
In the rich tradition of authentic Finnish saunas, the wall-mounted FIN sauna heater generates a satisfying, penetrating heat. The FIN heater includes professional-grade stainless steel heating elements and stainless steel components.
The unit is designed so that the sauna rocks are in direct contact with the heating elements for improved efficiency. The FIN sauna oven features triple-wall construction for greater safety and lower surface temperatures. Its exceptionally large rock capacity provides optimal heat storage.
When you buy a sauna, quality and value are important. Finlandia sauna heaters are engineered to provide years of safe, reliable, and efficient operation. Finlandia sauna heating units are made by Harvia and imported from Finland, the home of sauna.
The FIN electric sauna heater creates a traditional sauna experience by blanketing the room with an intense heat. Finlandia FIN Series heaters are perfect for any home sauna kit.
The Finlandia FIN heater is available in 240V, single-phase (1PH) or 208V, three-phase (3PH) configurations. The unit may be ordered with the standard red finish or the optional stainless steel exterior.
The FIN sauna heater requires a control for operation, sold separately. For 240V/1PH operation, the CX170 control or F1T control can be used. For 208V/3PH operation, the CX170 control or FT2 control with FX303 contactor can be used. For commercial applications, the FIN can be run 24 hours a day with the CX170 control and 24H7D time clock, or the F2 control with its respective contactor and 24H7D time clock.
The digital control comes with a power supply. The manual F-2 and F-2T controls require a contactor.
The FIN carries a limited lifetime warranty and is fully serviceable. All Finlandia and Harvia sauna heaters are UL and ETL listed and tested for your safety.
FEATURES
- 240V/1PH Operation with CX170 or F2T control with FX402 contactor
- 208V/3PH Operation with CX170 control or F2T control with FX303 contactor
- 24-Hour Operation with CX170 control and 24H7D time clock or F2 control with respective contactor and 24H7D time clock
- Wall-mounted
- Stainless steel elements
- Requires wall-mounted time/temperature control
- Requires contactor with F-2 and F-2T controls
- Available in 240V/1PH and 208V/3PH operation
- Stainless steel construction
- Optional Stainless Steel exterior or Standard Red Finish
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- Direct rock-to-heating element contact
- 24"H x 16"W x 11"D
INCLUDES
- Sauna Heater
- 45 lbs of Igneous Sauna Stones
- Installation and Operation Manual
- Manufacturer Warranty
SPECIFICATIONS
FIN-45 (4.5kW)
| Model |
FIN-45 |
| Kilowatt Rating |
4.5kW |
|
|
| Cubic Feet |
|
| Minimum |
100 CF |
| Maximum |
210 CF |
|
|
| Weight |
|
| Heater Weight |
40 lbs |
| Shipping Weight with Sauna Stones |
90 lbs |
|
|
| Nominal Amperage |
|
| 240V, Single Phase |
18.8 Amps |
| 208V, 3-Phase |
12.5 Amps |
|
|
| Recommended Minimum Copper Wire Supply |
|
| 240V, Single Phase |
10 AWG |
| 208V, 3-Phase |
14 AWG |
|
|
| Dimensions |
|
| Width |
16" |
| Depth |
11" |
| Height |
24" |
FIN-60 (6kW)
| Model |
FIN60 |
| Kilowatt Rating |
6.0 KW |
|
|
| Cubic Feet |
|
| Minimum |
170 CF |
| Maximum |
300 CF |
|
|
| Weight |
|
| Heater Weight |
40 lbs |
| Shipping Weight with Sauna Stones |
90 lbs |
|
|
| Nominal Amperage |
|
| 240V, Single Phase |
25 Amps |
| 208V, 3-Phase |
16.7 Amps |
|
|
| Recommended Minimum Copper Wire Supply |
|
| 240V, Single Phase |
10 AWG |
| 208V, 3-Phase |
12 AWG |
|
|
| Dimensions |
|
| Width |
16" |
| Depth |
11" |
| Height |
24" |
FIN-80 (8kW)
| Model |
FIN80 |
| Kilowatt Rating |
8.0 KW |
|
|
| Cubic Feet |
|
| Minimum |
250 CF |
| Maximum |
425 CF |
|
|
| Weight |
|
| Heater Weight |
40 lbs |
| Shipping Weight with Sauna Stones |
90 lbs |
|
|
| Nominal Amperage |
|
| 240V, Single Phase |
33.3 Amps |
| 208V, 3-Phase |
22.2 Amps |
|
|
| Recommended Minimum Copper Wire Supply |
|
| 240V, Single Phase |
8 AWG |
| 208V, 3-Phase |
10 AWG |
|
|
| Dimensions |
|
| Width |
16" |
| Depth |
11" |
| Height |
24" |
