Epoch Batteries 70.4V (72V) 105Ah Lithium LiFePO4 Golf Cart Battery - Complete Kit
Pre-Order. Expected to ship out end of January.
FEATURES:
- Complete Lithium Conversion Kit
- 72V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

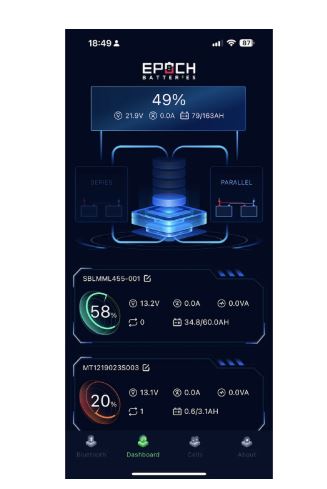

- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 250A Max Continuous Discharge
- 500A @ 15s, 1000A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 500A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11 Year Warranty
SPECIFICATIONS:
Configuration
- Cell Configuration: 1P22S
- Chemistry: LiFePO4
Current
- Ah Capacity: 105Ah
- Max Continuous Discharge Amps: 250A
- Max Charge Current Amps: 105A Continuous , 500A @ 15s
- Max Discharge Peak Current Amps: 500A @ 15s, 1000A @ 2s
Voltage
- Voltage: 70.4V
- Max Charge Voltage: 79.2V
- Operating Voltage Range: 55.0V - 79.2V
Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight & Dimensions
- Weight: 132lbs
- Length: 21.7 (inches)
- Width: 13.4 (inches)
- Height: 9.9 (inches)
RECOMMENDED CHARGING SETTINGS:
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
