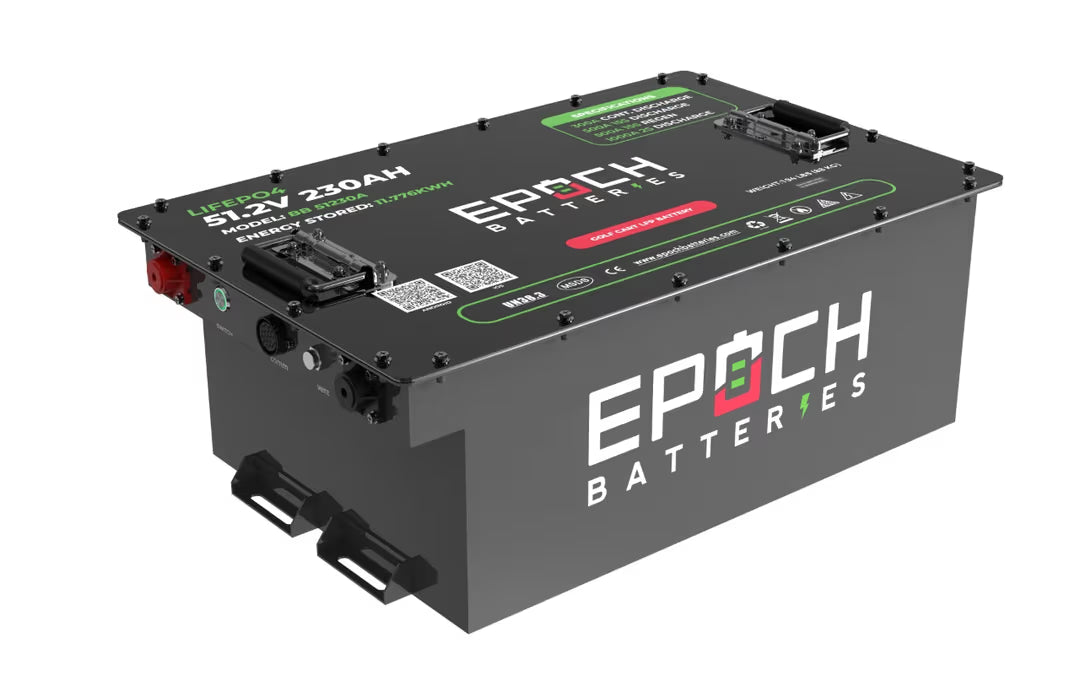

Epoch Batteries 48V 230Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 48V 230Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

by Epoch Batteries
SKU BB51230A-KIT-1 EZGO TXT
$3,499.00 - $3,499.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 48V 230Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

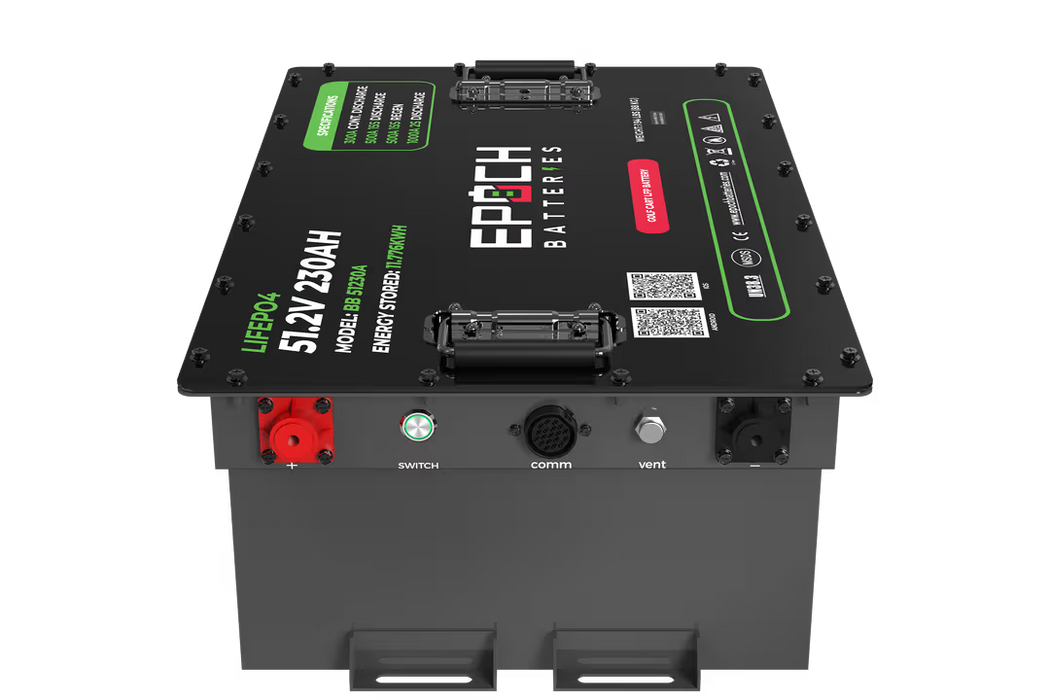

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 2

DESCRIPTION:

  • Complete Lithium Conversion Kit
  • 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

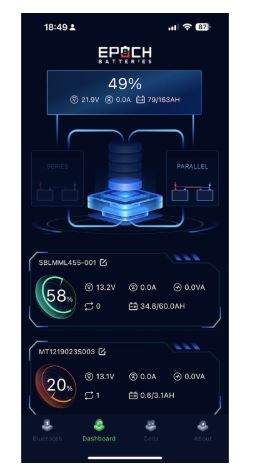

  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 300A Max Continuous Discharge
  • 500A @ 15s, 1,000A @ 2s Peak Discharge
  • 230A Max Continuous Charge
  • 500A @ 15s Peak Charge/Regen
  • 4,000 Cycle Life
  • 11 Year Warranty

SPECIFICATIONS:

Configuration

  • Cell Configuration: 1P16S
  • Chemistry: LiFePO4

Current

  • Ah Capacity: 230Ah
  • Max Continuous Discharge Amps: 300A
  • Max Charge Current Amps: 230A Continuous, 500A @ 15s
  • Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s
  • Series | Parallel: Max (2) in Parallel

Voltage

  • Voltage: 51.2V
  • Max Charge Voltage: 58.4V
  • Operating Voltage Range: 40 - 58.4V

Temperature

  • Charge Temp Range: 0°C (32°F) / 55°C (131°F)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight and Dimensions

  • Weight: 196 (LBS)
  • Length: 23.5 (inches)
  • Width: 14.4 (inches)
  • Height: 9.9 (inches)

GUIDE:

Specification Sheet (BMS-CAN Protocol)

Material Safety Data Sheet

Data Sheet (Quick Spec Sheet)

Safety Data Sheet (SDS)

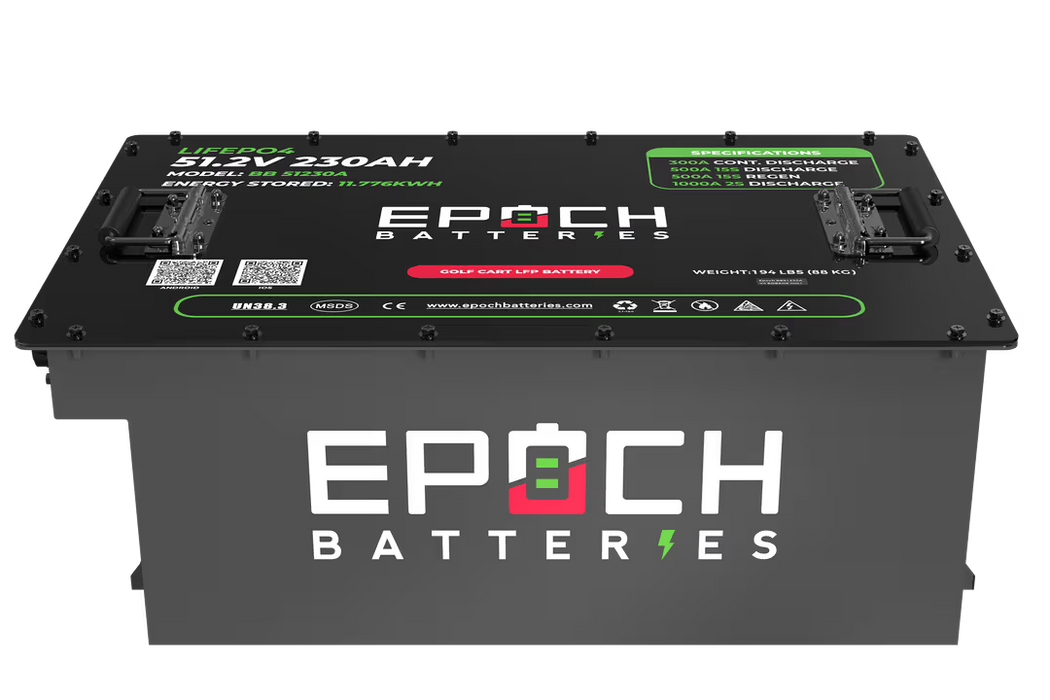

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 3
