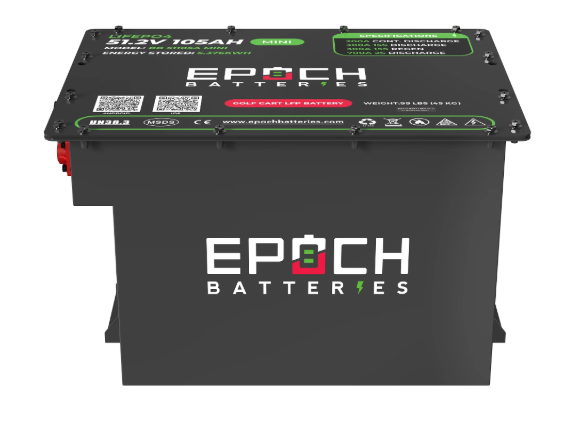

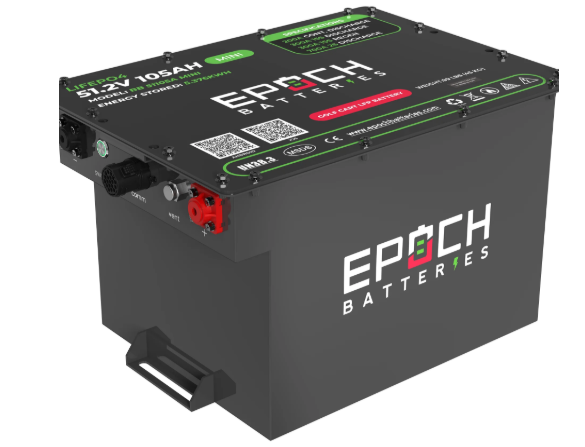

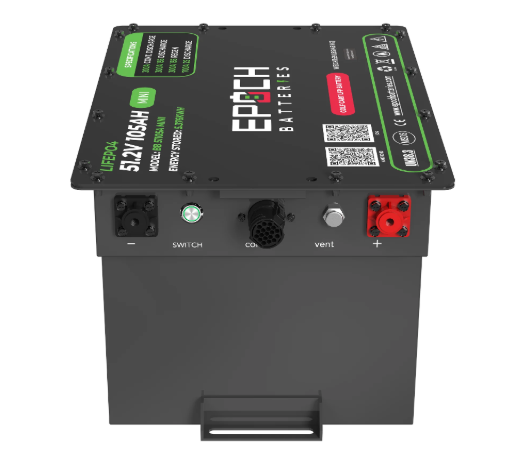

Epoch Batteries 48V 105Ah MINI LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 48V 105Ah MINI LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

by Epoch Batteries
SKU BB51105A_MINI-KIT-1 Club Car DS
$2,299.00 - $2,299.00
$2,299.00
$2,299.00 - $2,299.00
$2,299.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 48V 105Ah MINI LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 2

DESCRIPTION:

  • Complete Lithium Conversion Kit

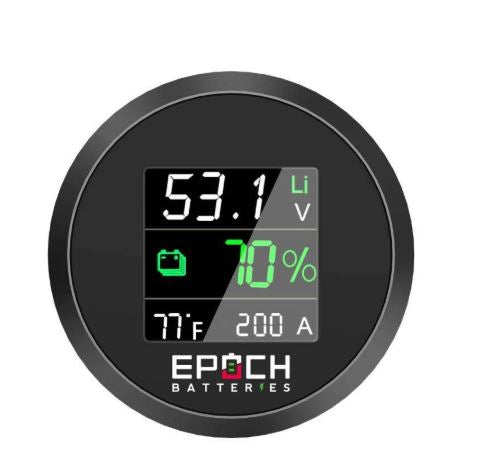

  • 48V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
  • Cart Specific Mounting Brackets INCLUDED

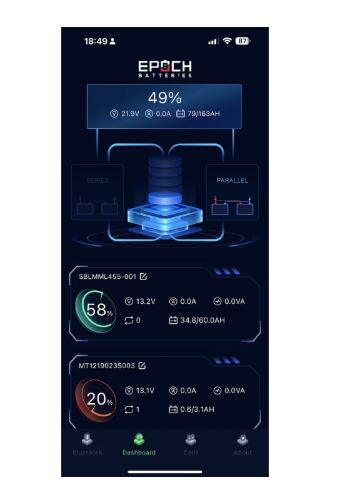

  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 200A Max Continuous Discharge
  • 300A @ 15s, 700A @ 2s Peak Discharge
  • 100A Max Continuous Charge
  • 300A @ 15s Peak Charge/Regen
  • 3,500 Cycle Life
  • 11 Year Warranty

SPECIFICATIONS:

Configuration

  • Cell Configuration: 1P16S
  • Chemistry: LiFePO4
Current
  • Ah Capacity: 105Ah
  • Max Continuous Discharge Amps: 200A
  • Max Charge Current Amps: 100A Continuous, 300A @ 15s
  • Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
  • Series | Parallel: Max (2) in Parallel

Voltage

  • Voltage: 51.2V
  • Max Charge Voltage: 58.4V
  • Operating Voltage Range: 40 - 58.4V

Temperature

  • Charge Temp Range: 0°C (32°F) / 55°C (131°F)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

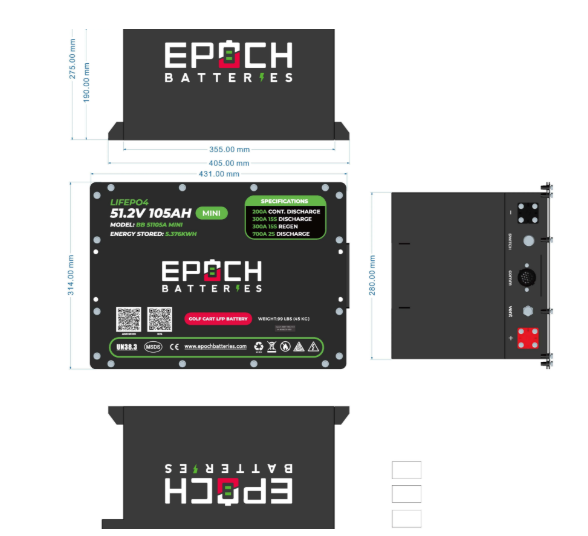

Weights and Dimensions

  • Weight: 99 (LBS)
  • Length: 15.8 (inches)
  • Width: 11.1 (inches)
  • Height: 10.9 (inches)

GUIDE:

Data Sheet (Quick Spec Sheet)

Safety Data Sheet (SDS)

48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 3
