Epoch Batteries 48V 105Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 48V 105Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

by Epoch Batteries
SKU BB51105A-KIT Club Car Precedent
$1,999.00 - $1,999.00
$1,999.00
$1,999.00 - $1,999.00
$1,999.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 48V 105Ah LiMax Series Lithium (LiFePO4) Golf Cart Battery - Complete Kit

48V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 2

DESCRIPTION:

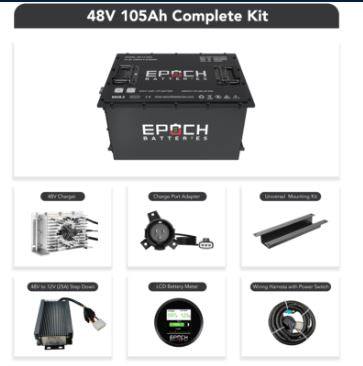

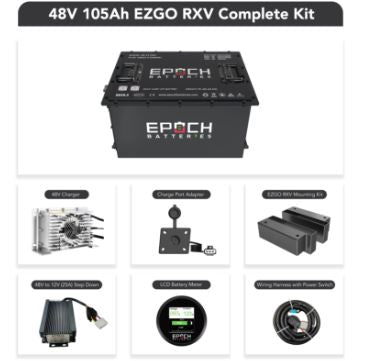

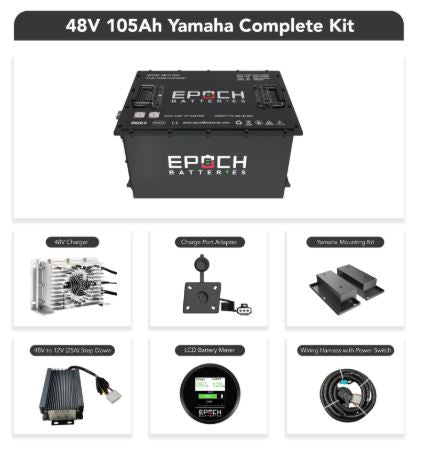

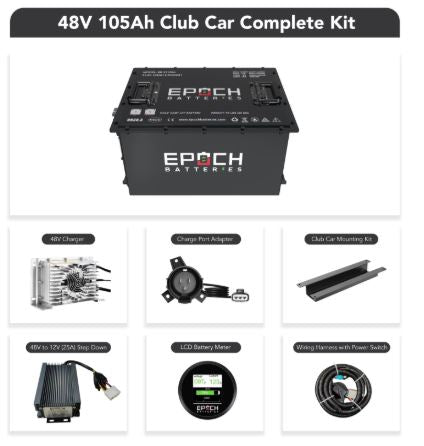

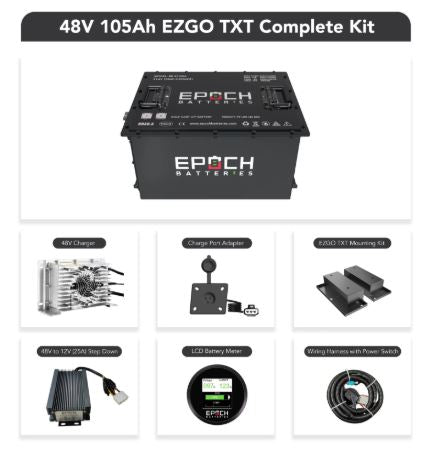

  • Complete Lithium Conversion Kit

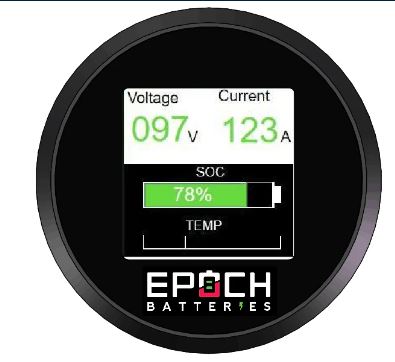

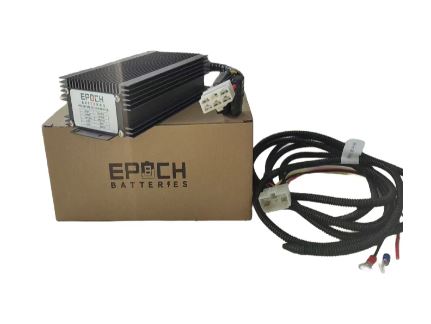

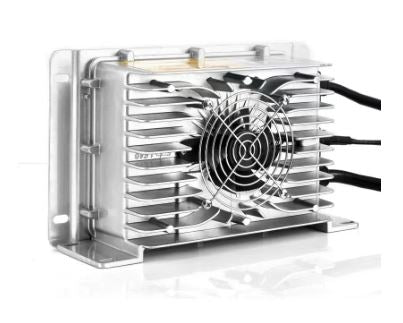

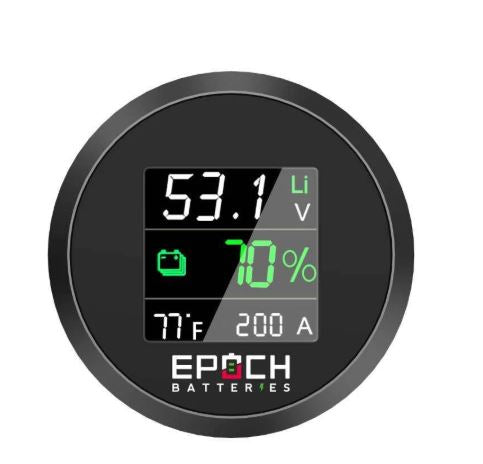

  • 48V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

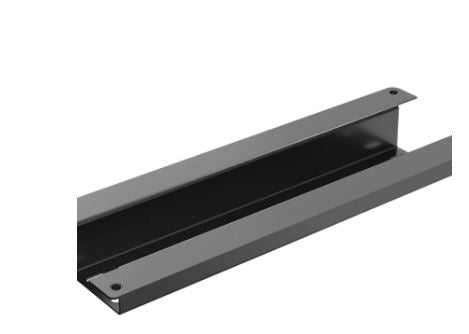

  • Cart Specific Mounting Brackets INCLUDED

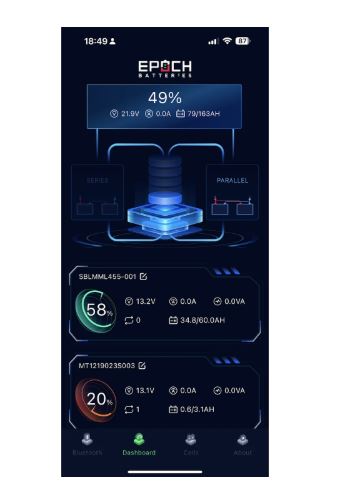

  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 200A Max Continuous Discharge
  • 300A @ 15s, 700A @ 2s Peak Discharge
  • 100A Max Continuous Charge
  • 300A @ 15s Peak Charge/Regen
  • 3,500 Cycle Life
  • 11 Year Warranty

SPECIFICATIONS:

Configuration

  • Cell Configuration: 1P16S
  • Chemistry: LiFePO4

Current

  • Ah Capacity: 105Ah
  • Max Continuous Discharge Amps: 200A
  • Max Charge Current Amps: 100A Continuous, 300A @ 15s
  • Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
  • Series | Parallel: Max (2) in Parallel

Voltage

  • Voltage: 51.2V
  • Max Charge Voltage: 58.4V
  • Operating Voltage Range: 40 - 58.4V

Temperature

  • Charge Temp Range: 0°C (32°F) / 55°C (131°F)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weights and Dimensions

  • Weight: 99 (LBS)
  • Length: 18.1 (inches)
  • Width: 13.4 (inches)
  • Height: 9.8 (inches)

48V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit additional image 3

RECOMMENDED CHARGING SETTINGS:

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
  • Bulk/Absorption: 14.2V – 14.6V
  • Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
  • Float: 13.4V – 13.8V
  • Equalization: 14.4V/ Disabled
  • Temperature Compensation: 0/Disabled
  • Charge Rate: 50% of the battery or battery bank capacity
  • Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
  • Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
  • Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
  • Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

GUIDE:

Specification Sheet (BMS-CAN Protocol)

Material Safety Data Sheet

Data Sheet (Quick Spec Sheet)

Safety Data Sheet (SDS)
