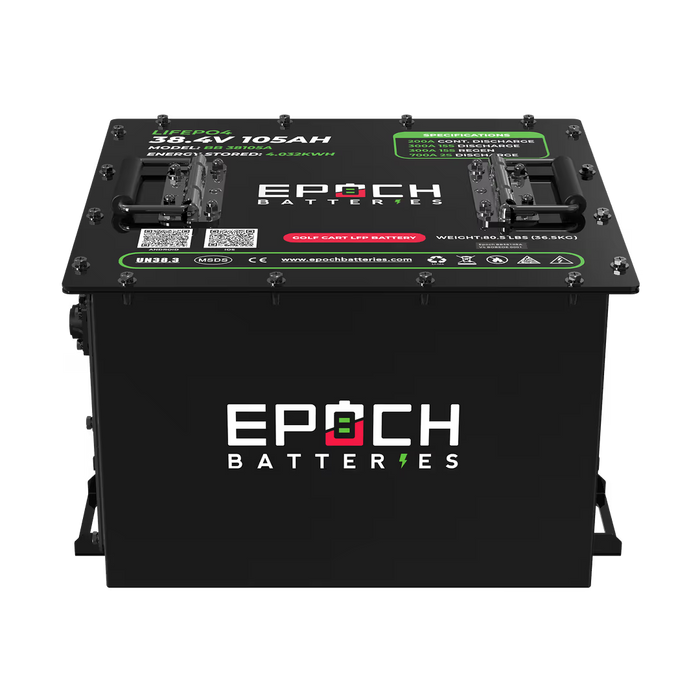

Epoch Batteries 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

OVERVIEW:

• IP 67 Waterproof
• iOS, Android Apps
• 3500+ Cycles
• Advanced BMS

• Safe & Reliable

DESCRIPTION:

• Complete Lithium Conversion Kit
• 36V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

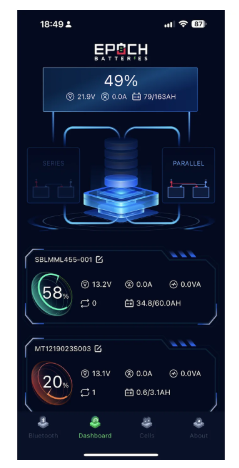

• Bluetooth App (iOS & Android)
• Over the air firmware updates available
• 200A Max Continuous Discharge
• 300A @ 15s, 700A @ 2s Peak Discharge
• 100A Max Continuous Charge
• 300A @ 15s Peak Charge/Regen
• 3,500 Cycle Life
• 11 Year Warranty

SPECIFICATIONS:

CONFIGURATION

• Cell Configuration: 1P12S
• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 105Ah
• Max Continuous Discharge Amps: 200A
• Max Charge Current Amps: 100A Continuous, 300A @ 15s
• Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
• Series | Parallel: Max (2) in Parallel


VOLTAGE

• Voltage: 38.4V
• Max Charge Voltage: 43.8V
• Operating Voltage Range: 30 - 43.8V


TEMPERATURE

• Charge Temp Range: 0°C (32°F) / 55°C (131°F)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

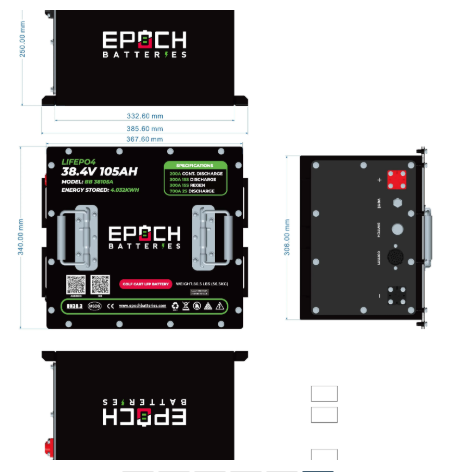

WEIGHT AND DIMENSIONS

• Weight:  81 (LBS)
• Length: 14.6 (inches)
• Width: 13.4 (inches)
• Height: 9.9 (inches)
