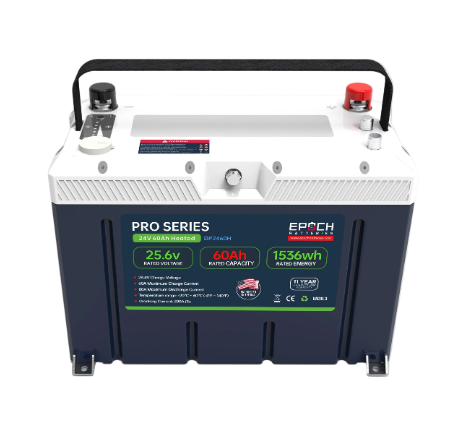

Epoch Batteries 24V 60Ah Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

SKU DP2460H
Original price $699.00 - Original price $699.00
Original price
$699.00
$699.00 - $699.00
Current price $699.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 24V 60Ah Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

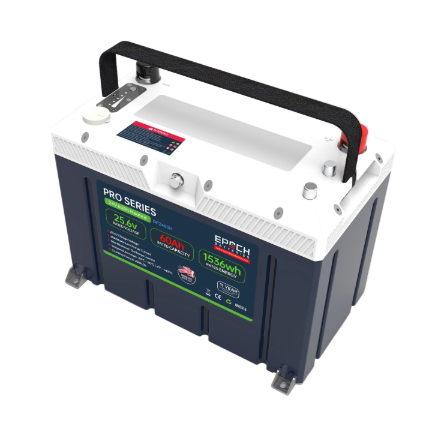

24V 60Ah Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery additional image 5

DESCRIPTION:

  • LiFePO4 Chemistry - GROUP 27 SIZE
  • 80A Max Continuous Discharge
  • 200A 3s Peak Discharge Current
  • HEATED - Internal heating allows for charging in sub-zero conditions
  • BLUETOOTH - iOS and Android Apps
  • BLUETOOTH - Over the air Firmware update via the app
  • Victron Comms - Communicate all battery information directly to the Victron Ecosystem
  • IP67 Rated, Dust and WATERPROOF
  • 5" Touch Screen Battery Gauge (Optional)
  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (16) in Parallel
  • 6000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty

SPECIFICATIONS:

Configuration

  • Chemistry: LiFePO4

Current

  • Ah Capacity: 60Ah
  • Max Continuous Discharge Amps: 80A
  • Max Charge Current Amps: 60A
  • Max Discharge Peak Current Amps: 200A 3 seconds
  • Series | Parallel: Max (16) in Parallel

Voltage

  • Voltage: 25.6V
  • Max Charge Voltage: 29.2V
  • Operating Voltage Range: 20 - 29.2V

Temperature

  • Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight and Dimensions

  • Weight: 30
  • Length: 12.25 (inches)
  • Width: 6.75 (inches)
  • Height: 9 (inches)

RECOMMENDED CHARGING SETTINGS:

  • Maximum Continuous Charge Current: 60A
  • Bulk/Absorption: 28.4V-28.8V
  • Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
  • Float Voltage: Disabled (preferred) or 26.6V-27.2V
  • Re-bulk: 26.4V
  • Temperature Compensation: 0 mV/°C (none)
  • Equalization: Disabled
  • Battery Charge Temperature Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)
  • BMS High Voltage Cutoff: 29.2V
  • SoC Recalibration: 29.2V

GUIDE:

Material Safety Data Sheet

Data Sheet

User Manual

Safety Data Sheet (SDS)
