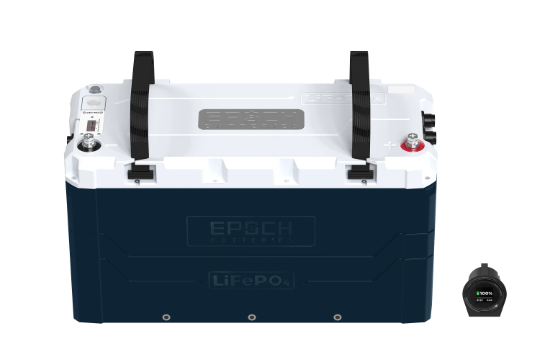

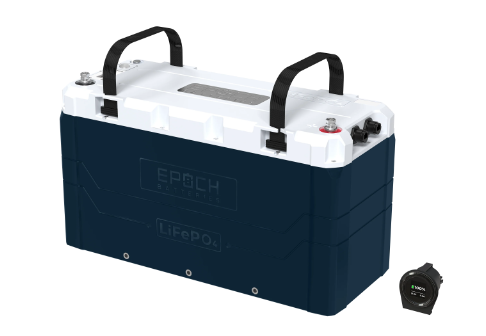

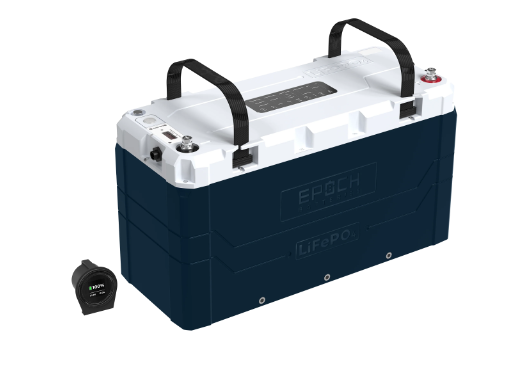

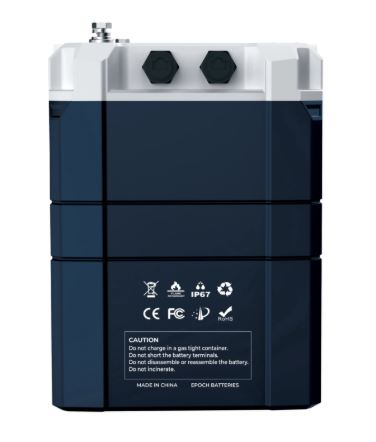

Epoch Batteries 24V 230Ah V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

Epoch Batteries 24V 230Ah V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

by Epoch Batteries
SKU C24230A
$1,799.00 - $1,799.00
$1,799.00
$1,799.00 - $1,799.00
$1,799.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 24V 230Ah V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

Pre-Order. Expected to ship out end of January.

WHAT'S NEW?

  • Improved Victron Communications: High Voltage Alarm Fix: This addresses issues where high voltage alarms were triggered incorrectly in the V1 model. Improved communication should result in better monitoring and control of the battery system.
  • Improved Scalability: Parallel Capability: The system can now handle up to 16 batteries in parallel, compared to the previous limitation of just 4. This greatly expands the potential for energy storage, allowing for larger systems.
  • Upgraded Internal Components: Certified Components: The internal fuse is UL60691 certified, and the battery cells meet a range of safety and quality standards, including UL1642, UL1973, U9540A, IEC 62619:2017, and RoHS. This indicates that the battery is built to high safety standards and is suitable for various applications.
  • Battery UL Listing: The battery is in the process of receiving its UL Listing (a certification for safety and quality). This will further confirm its compliance with industry standards.
  • Improved Bluetooth App Compatibility: All-Battery Dashboard: The app now supports connecting to and monitoring all batteries from a single dashboard, even if you have up to 16 batteries in your system. This makes it easier to manage large-scale installations.
  • BMS Over-the-Air Firmware Updates: The system can now receive firmware updates remotely via the app. This ensures the battery management system (BMS) is always running the latest software, which can improve performance, security, and features over time.
  • Upgraded Battery Gauge: Better Monitoring: The new battery gauge provides more detailed information, including State of Charge (SOC), voltage, current flow, and alarm alerts. This is a significant improvement over the older version, which only had a 10-segment gauge. The added details help with better monitoring of the system's health and performance.

FEATURES:

  • LiFePO4 Chemistry
  • Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
  • 230Ah Capacity
  • 230A Max Continuous Discharge (500A 30s Discharge)
  • 230A Max Continuous Charge (400A 5s Charge)
  • IP67 Rated, Dust and WATERPROOF
  • HEATED - Internal heating for below 0C charging
  • BLUETOOTH - iOS and Android Apps
  • CANBUS Communication allows BMS to communicate directly with Victron OS
  • Mountable ON/OFF Switch
  • Mountable Battery gauge
  • Built-in Smart Battery Management System (BMS)
  • Internal fuse with current and temperature protections
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • 3500+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty

SPECIFICATIONS:

Configuration
  • Cell Configuration: 8S1P
  • Chemistry: LiFePO4
Current
  • Ah Capacity: 230Ah
  • Max Continuous Discharge Amps: 230A
  • Max Charge Current Amps: 230A
  • Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)
  • Series | Parallel: Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P
Voltage
  • Voltage: 25.6V
  • Max Charge Voltage: 29.2V
  • Operating Voltage Range: 20.0 - 29.2V
Temperature
  • Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight & Dimensions
  • Weight: 97 (LBS)
  • Length: 20.75 (inches)
  • Width: 8.5 (inches)
  • Height: 12 (inches)

RECOMMENDED CHARGING SETTINGS:

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

  • Bulk/Absorption: 14.2V – 14.6V
  • Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
  • Float: 13.4V – 13.8V
  • Equalization: 14.4V/ Disabled
  • Temperature Compensation: 0/Disabled
  • Charge Rate: 50% of the battery or battery bank capacity
  • Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
  • Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
  • Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

GUIDE:

Material Safety Data Sheet
