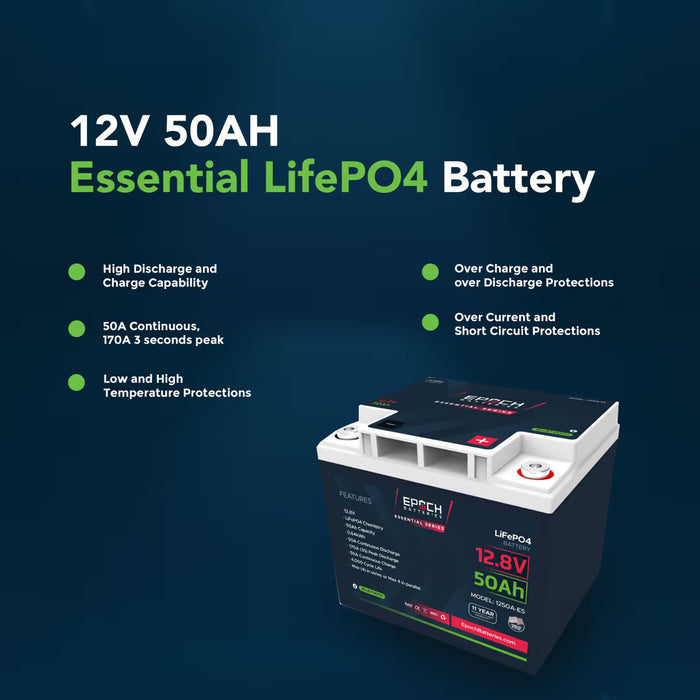

Epoch Batteries 12V 50Ah Essential Series - Bluetooth LiFePO4 Battery
DESCRIPTION:
- LiFePO4 Chemistry - Deep Cycle Battery

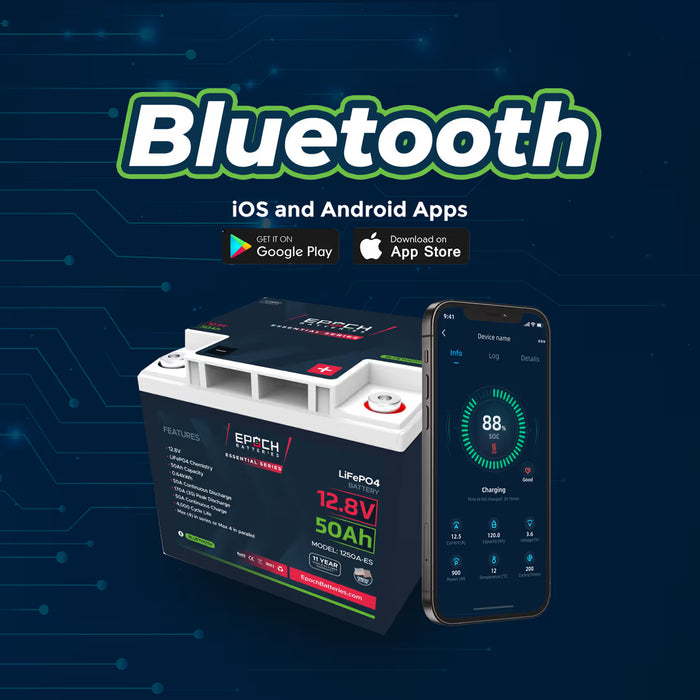

- BLUETOOTH - iOS and Android Apps
- BLUETOOTH - Epoch Pro App allows you to manage entire system of batteries from one screen (ex. 36V 50Ah setup)

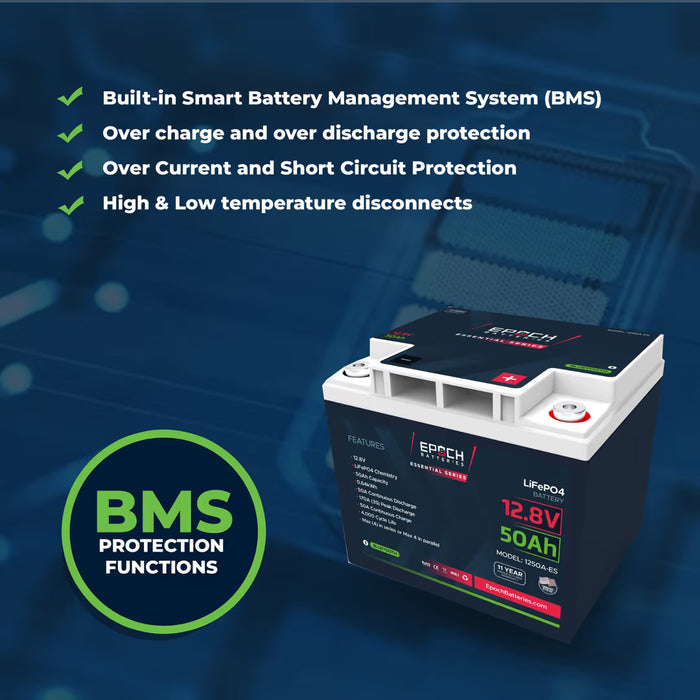

- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (8) in Parallel up to 400Ah
- Unlimited in Parallel

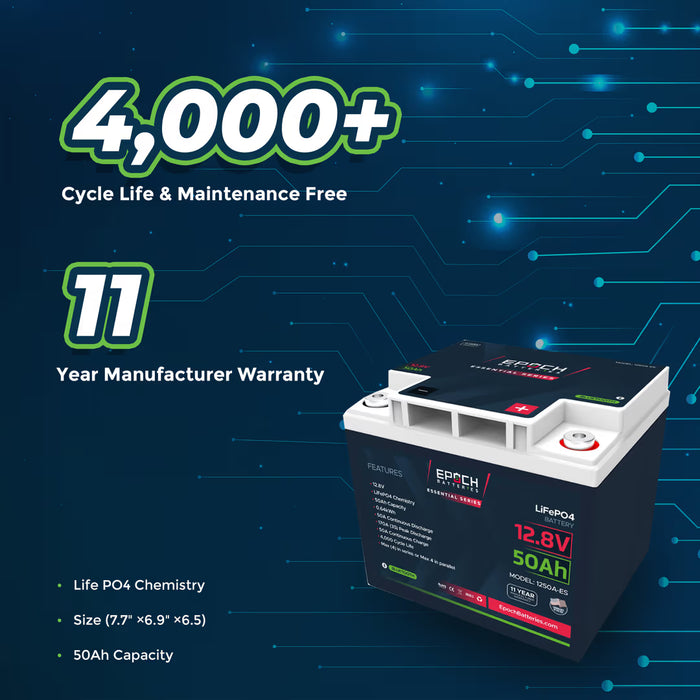

- 4,000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
SPECIFICATIONS:
Configuration
- Cell Configuration: 4S
- Chemistry: LiFePO4
Current
- Ah Capacity: 50Ah
- Max Continuous Discharge Amps: 50A
- Max Charge Current Amps: 50A
- Max Discharge Peak Current Amps: 170A (3 Seconds)
- Series | Parallel: Max (4) in Series | Max (4) in Parallel
Voltage
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

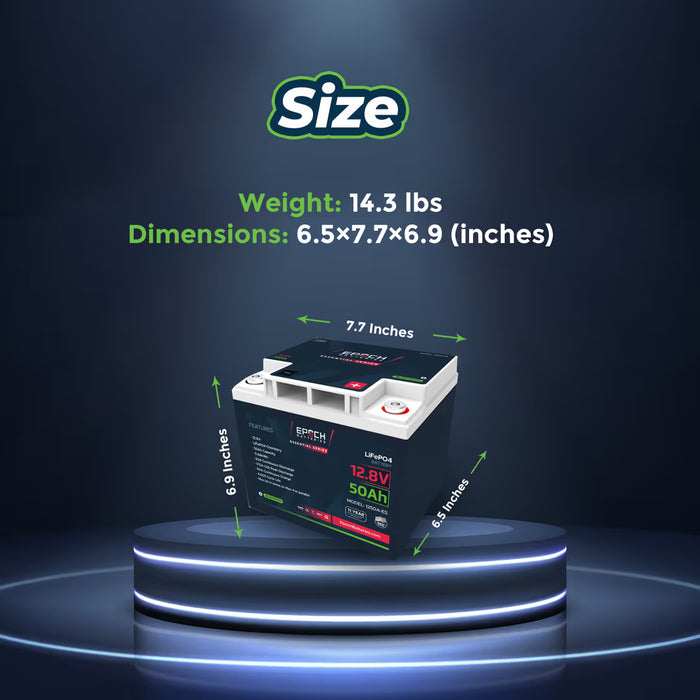

Weight and Dimensions
- Weight: 14.3 (LBS)
- Length: 7.75 (inches)
- Width: 6.5 (inches)
- Height: 7 (inches)
RECOMMENDED CHARGING SETTINGS:
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
- Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
