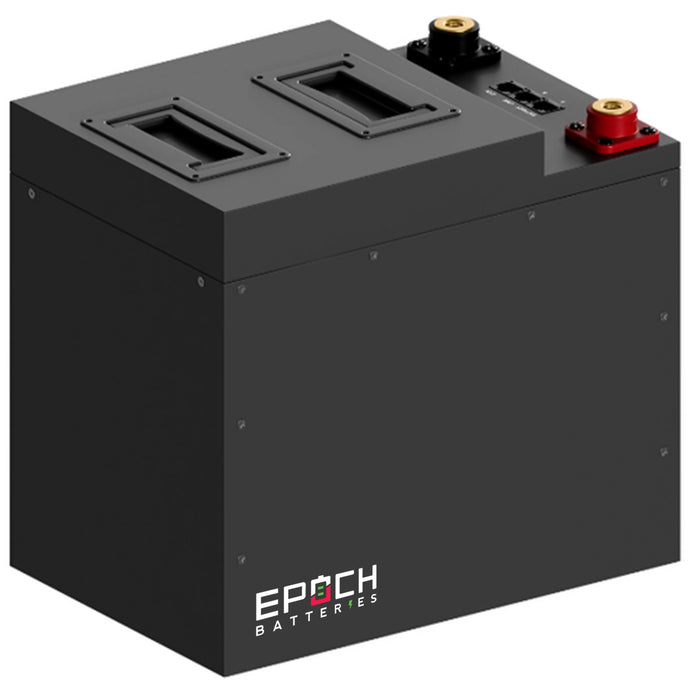

12V 334Ah Essential Series LiFePO4 (4.28kWh): High-capacity, premium deep-cycle lithium power designed to deliver massive, reliable off-grid energy for RVs, vans, marine setups, and solar systems in a single footprint.
-
Plug-and-Play VICTRON COMMS: Seamlessly integrates with Victron ecosystems. Automatically detects the master battery with zero manual configuration required, creating an unlimited, scalable data network for full system visibility.
-
High-Output Power Delivery: Engineered to easily run heavy loads (like A/C units and 3000W+ inverters) with a massive 300A max continuous discharge, 600A peak discharge (10s), and rapid 150A continuous charging.
-
HEATED for Sub-Zero Charging: Built-in internal heating technology automatically activates in freezing weather, ensuring safe and efficient charging even in extreme winter conditions.
-
BLUETOOTH Smart Monitoring: Track real-time battery capacity, voltage, temperature, and overall health directly from your smartphone via the Epoch iOS and Android apps.
-
2A Active Cell Balancing: Advanced internal balancing automatically detects and corrects voltage differences between individual cells to ensure perfectly smooth performance and maximize battery lifespan.
-
Advanced Smart BMS Protection: The fully integrated Battery Management System safeguards your massive power bank against over-charging, over-discharging, over-current, short circuits, and extreme temperatures.
-

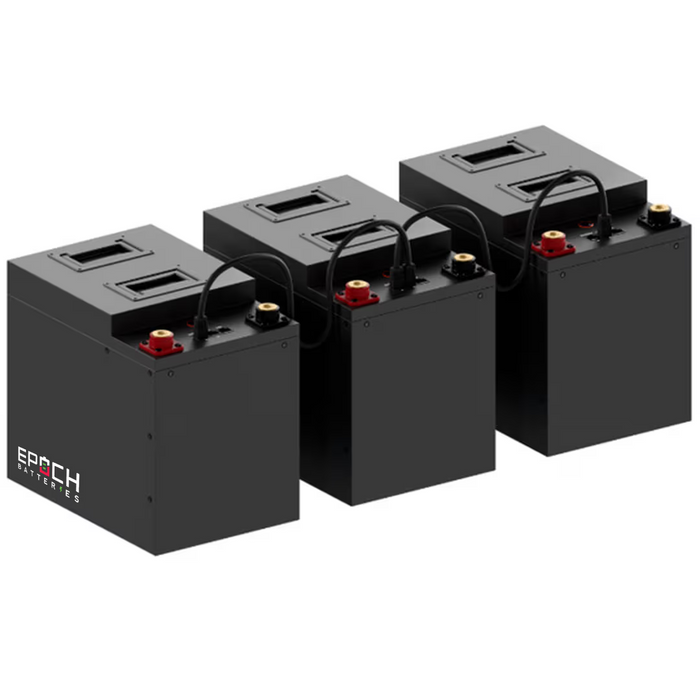

Massive Scalability (Up to 16 in Parallel): Easily expand your off-grid energy storage by safely wiring up to sixteen (16) units in parallel for an immense 68.4kWh power system.
-
4,500+ Cycle Life & 11-Year Warranty: Exceptional maintenance-free durability built to vastly outlast traditional lead-acid batteries, backed by an industry-leading manufacturer warranty for total peace of mind.
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
Temperature
- Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight and Dimensions
- Weight: 75 (LBS)
- Length: 15.35" (inches)
- Width: 8.07" (inches)
- Height: 11.02" (inches)
RECOMMENDED CHARGING SETTINGS:
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
- Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
GUIDE:
