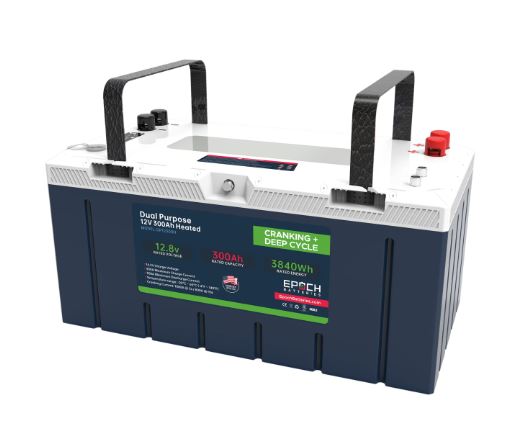

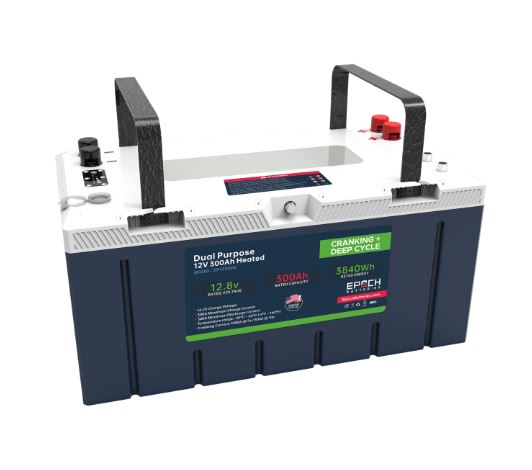

Epoch Batteries 12V 300Ah Pro Series - LiFePO4 Cranking & Deep Cycle Lithium Battery (Dual Purpose)
Victron Communications, Self-Heating and Bluetooth
300A Continuous Charge & Discharge
Cranking power of 1,000A @ 5s, 800A @ 10s
FEATURES:
- LiFePO4 Chemistry
- Peak Discharge of 1,000A @ 5s, 800A @ 10s
- Max Charge Current of 300A (Continuous)
- Max Discharge Current of 300A (Continuous)
- Victron Comms - CANBUS entire string of batteries to Victron Ecosystem
- HEATED - Internal heating allows for charging in sub-zero conditions
- BLUETOOTH - iOS and Android Apps
- BLUETOOTH - Over the air Firmware update via the app
- External Battery Gauge - Touch Screen (Optional - Coming soon)
- Communications Box for more Inverter, NMEA2k compatibility (Optional - Coming soon)
- IP67 Rated, Dust and WATERPROOF
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel
- 6000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
SPECIFICATIONS:
Configuration
- Cell Configuration: 4S3P
- Chemistry: LiFePO4
Current
- Ah Capacity: 300Ah
- Max Continuous Discharge Amps: 300A
- Max Charge Current Amps: 300A
- Max Discharge Peak Current Amps: 1,000A @ 5s
- Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
- Voltage: 12.8V
- Max Charge Voltage: 15.4V
- Operating Voltage Range: 10.0 - 15.4V
Temperature
- Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight and Dimensions
- Weight: 81 lbs
- Length: 19.70 (inches)
- Width: 10.5 (inches)
- Height: 9.75 (inches)
ADDITIONAL INFORMATION:
Magnuson-Moss Warranty Act: A vehicle manufacturer cannot legally void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)). Epoch Batteries have proprietary software embedded in the Battery Management Systems that make them 100% compatible with Mercury 250 hp motors and other leading brands.
Certifications: UL1973, RoHS, CE
RECOMMENDED CHARGING SETTINGS:
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
