Epoch Batteries 12V 105Ah Essential Series - Bluetooth & Heated LiFePO4 Battery

Epoch Batteries 12V 105Ah Essential Series - Bluetooth & Heated LiFePO4 Battery

by Epoch Batteries
SKU 12105A-H
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Epoch Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Epoch Batteries 12V 105Ah Essential Series - Bluetooth & Heated LiFePO4 Battery

DESCRIPTION:

  • LiFePO4 Chemistry - Deep Cycle Battery

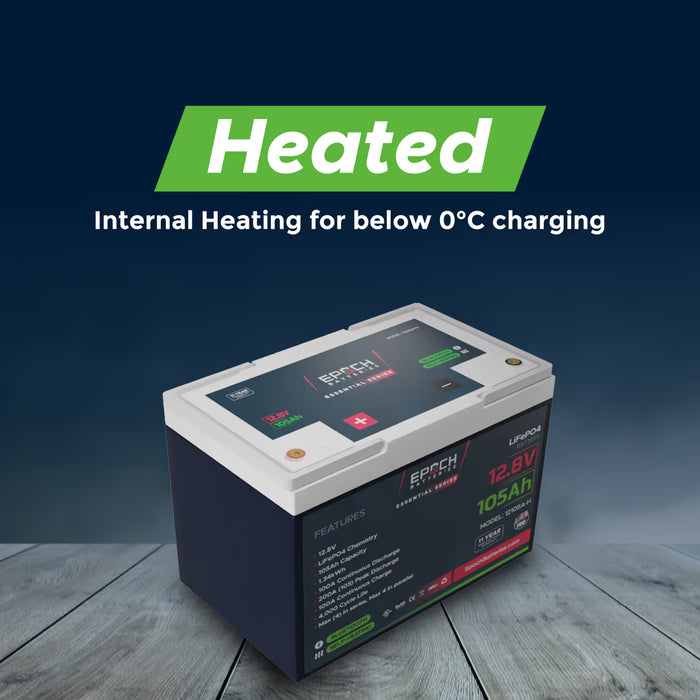

  • HEATED - Internal heating allows for charging in sub-zero conditions

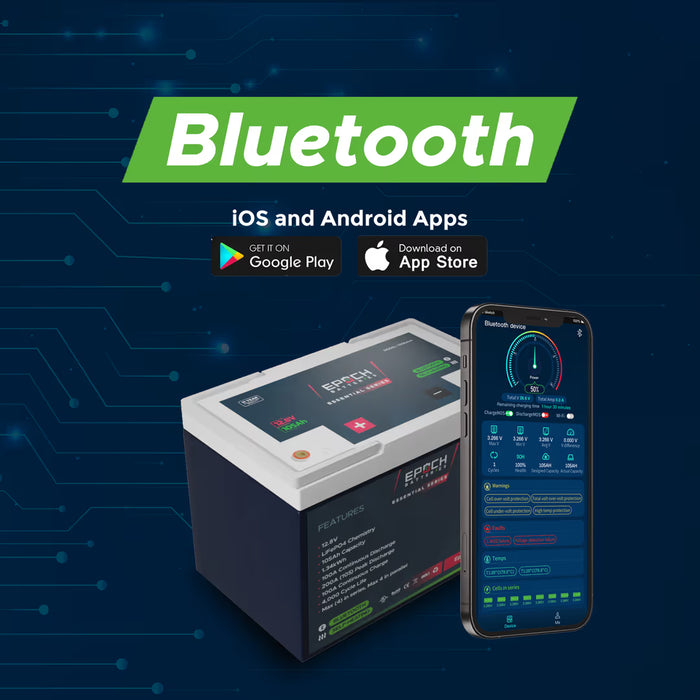

  • BLUETOOTH - iOS and Android Apps

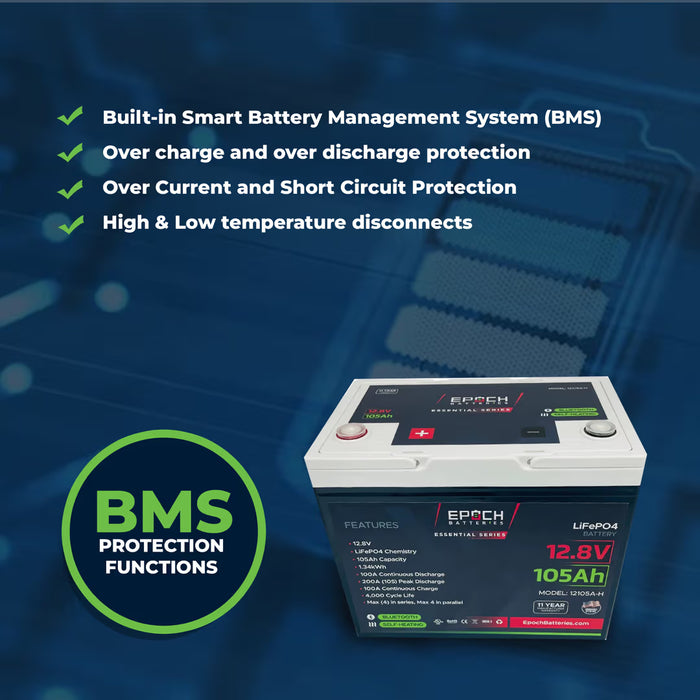

  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (4) in Parallel up to 420Ah
  • 4,000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty

SPECIFICATIONS:

Configuration
  • Cell Configuration: 4S1P
  • Chemistry: LiFePO4

Current

  • Ah Capacity: 105Ah
  • Max Continuous Discharge Amps: 105A
  • Max Charge Current Amps: 100A
  • Max Discharge Peak Current Amps: 200A (10 Seconds)
  • Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P

Voltage

  • Voltage: 12.8V
  • Max Charge Voltage: 14.6V
  • Operating Voltage Range: 10.0 - 14.6V

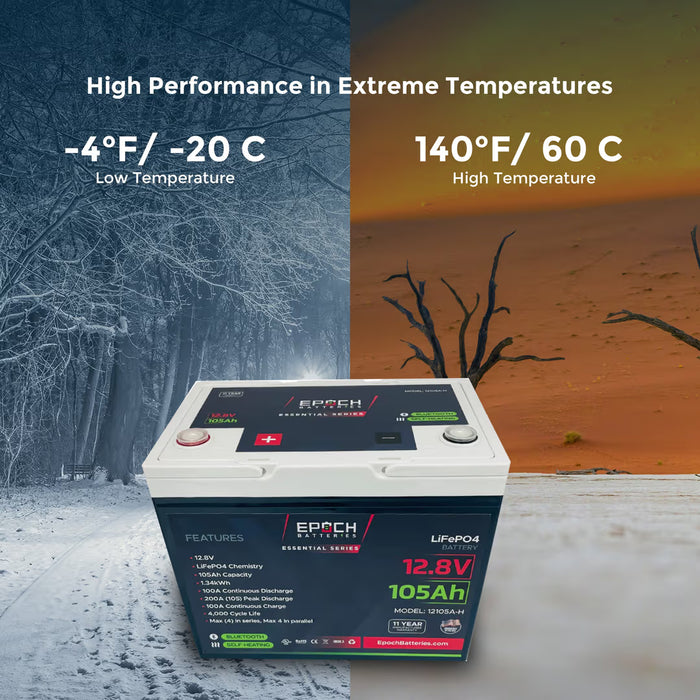

Temperature

  • Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F)

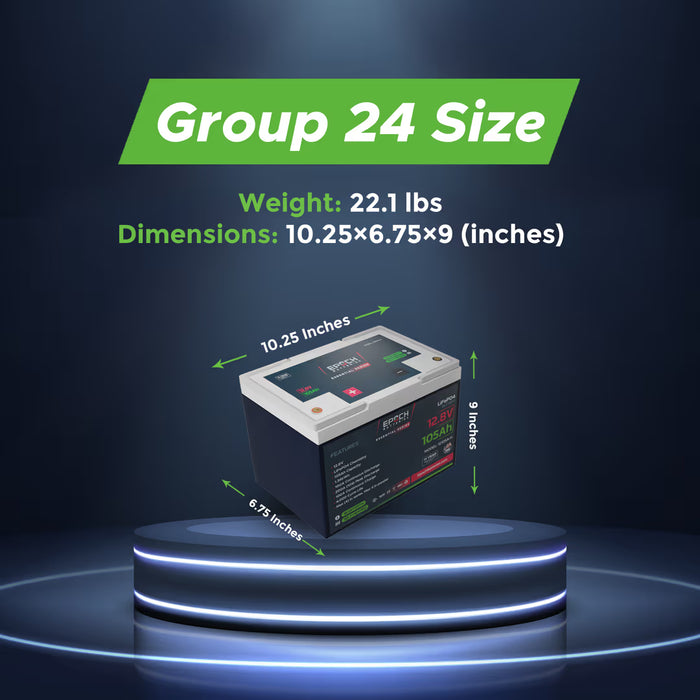

Weight and Dimensions

  • Weight: 22.1 (LBS)
  • Length: 10.25 (inches)
  • Width: 6.75 (inches)
  • Height: 9 (inches)

RECOMMENDED CHARGING SETTINGS:

  • Maximum Continuous Charge Current: 100A
  • Bulk/Absorption: 14.2V-14.4V
  • Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
  • Float Voltage: Disabled (preferred) or 13.3V-13.6V
  • Re-bulk: 13.2V
  • Temperature Compensation: 0 mV/°C (none)
  • Equalization: Disabled
  • Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
  • BMS High Voltage Cutoff: 14.6V
  • SoC Recalibration: 14.6V
