Epoch Batteries | 48V 50Ah | Heated & Bluetooth | LiFePO4 Battery

Overview

• IP 67 Waterproof
• iOS, Android Apps
• 3500+ Cycles
• Advanced BMS
• Internal Heating
• Safe & Reliable

Description

• LiFePO4 Chemistry - Deep Cycle Battery
• HEATED - Internal heating allows for charging in sub-zero conditions
• BLUETOOTH - iOS and Android Apps

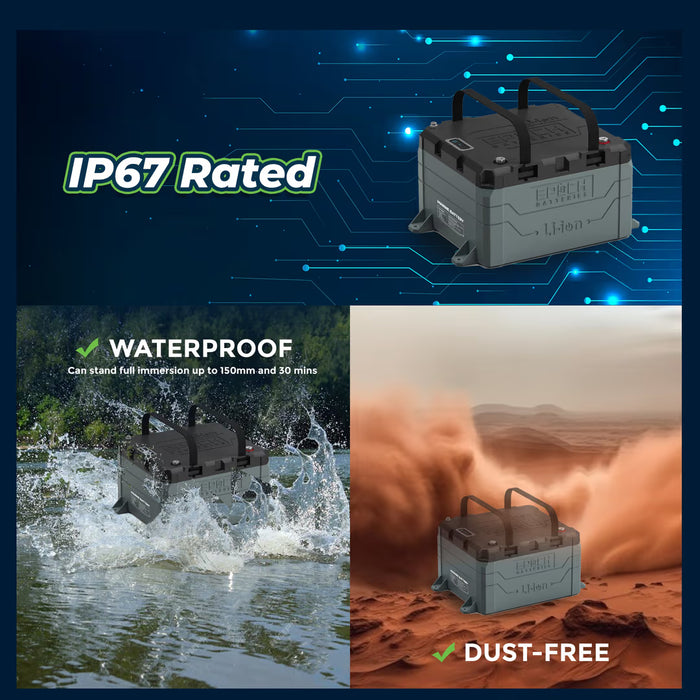

• IP67 Rated, Dust and WATERPROOF

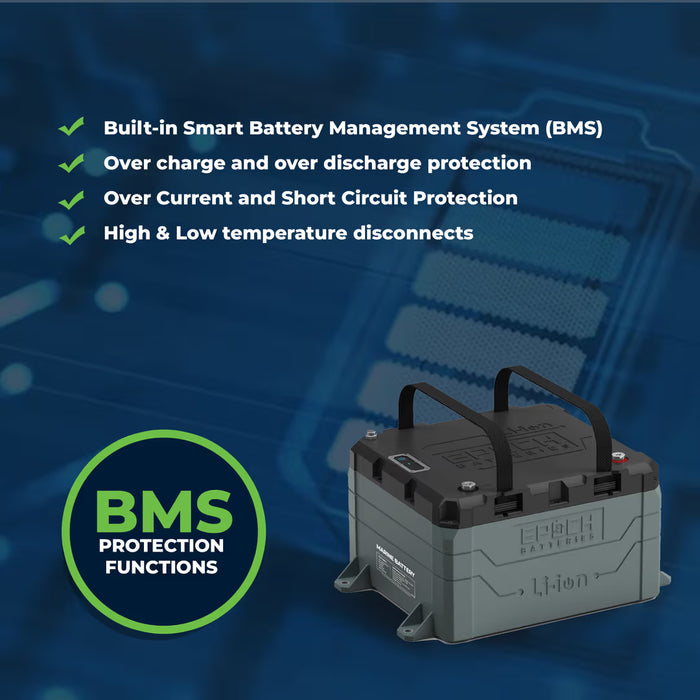

• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty
• Weight: 66 (LBS)
• Dimension: Length: 14.75 (inches) x Width: 15.25 (inches) x Height: 11.5 (inches)

Specification

CONFIGURATION

• Cell Configuration: 16S
• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 50Ah
• Max Continuous Discharge Amps: 100A
• Max Charge Current Amps: 150A (10 Seconds)
• Max Discharge Peak Current Amps: 150A (30 Seconds)
• Series | Parallel: Max (2) in Series | Max (4) in Parallel

VOLTAGE

• Voltage: 48V
• Max Charge Voltage: 58.4V
• Operating Voltage Range: 40 - 58.4V

TEMPERATURE

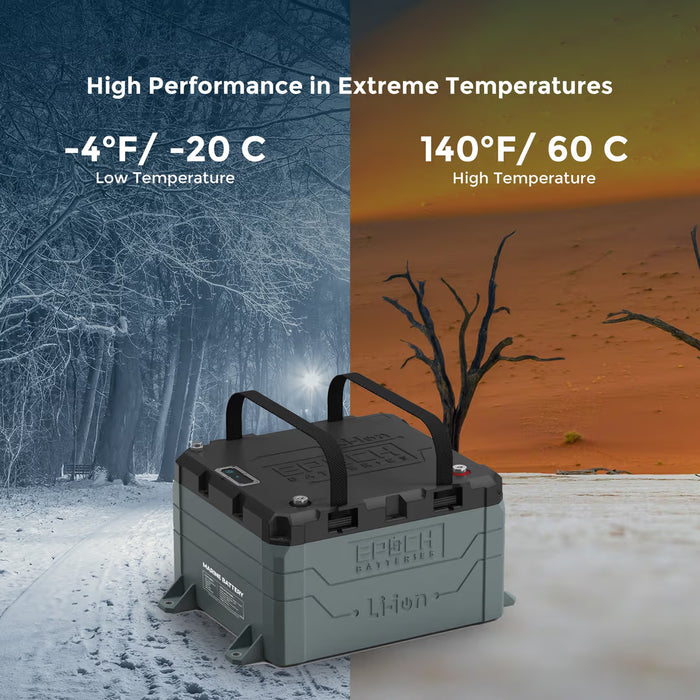

• Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
