Eco-Worthy Upgraded 6 String PV Combiner Box with 25A Current Fuse & 125A Circuit Breaker

OVERVIEW:

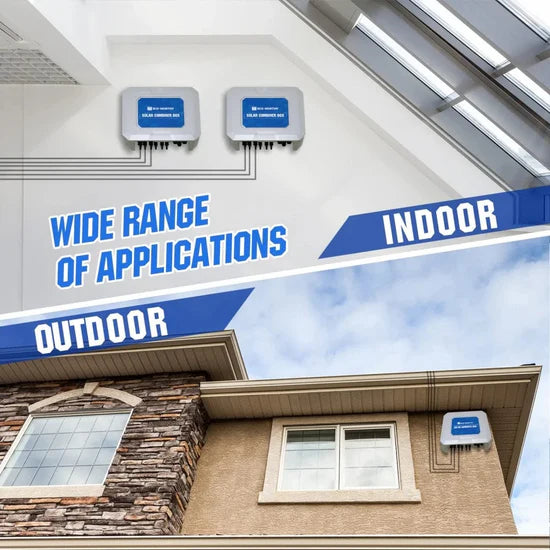

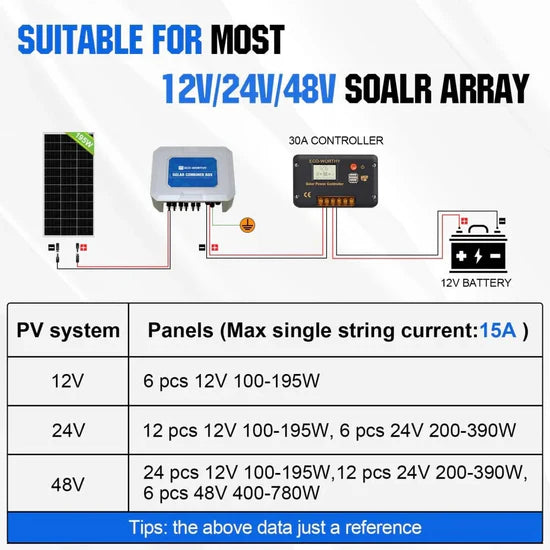

• Wide Range of Applications: Compatible with any brand of solar panels and connectors. Suitable for photovoltaic grid-connected & off-grid power generation systems, solar panel systems, photovoltaic arrays, RV solar energy, and household solar panel systems, etc., and can support solar panel systems up to 1620W in 12V, 3240W in 24V, and 6480W in 48V systems.
• High Quality Configuration: Equipped with photovoltaic special 9AWG cable, Maximum 15A single array input, 25A fuse, 125A circuit breaker, more tolerable for high combined current, high voltage resistance, and providing short circuit fault protection and overvoltage and overcurrent protection.

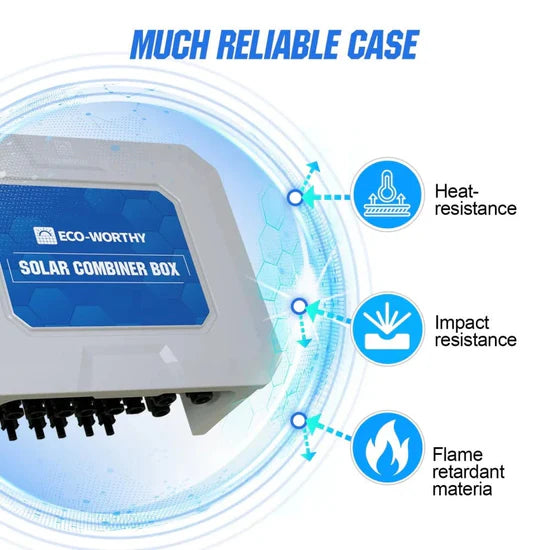

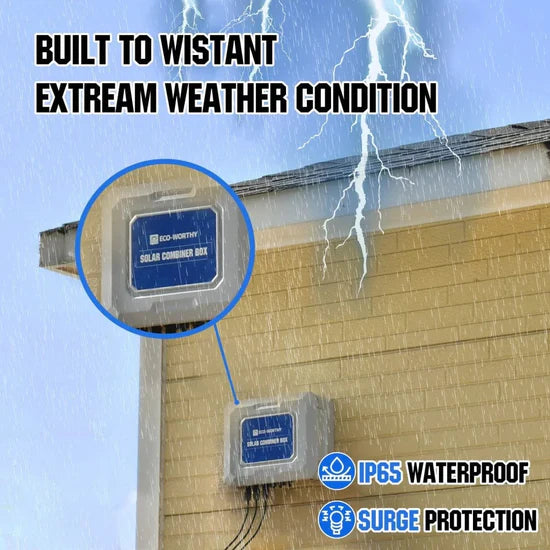

• Excellent Reliability Performance: Equipped with ABS & PC & flame retardant material, IP65 waterproof case, stronger, shock-proof and high temperature resistant, providing protection against short circuit fault and lightning surge.

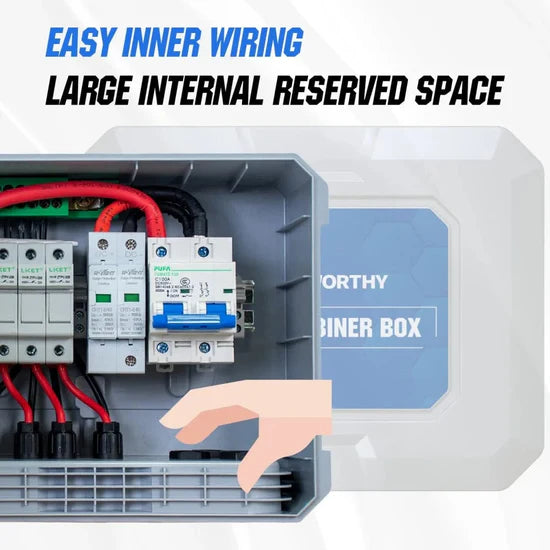

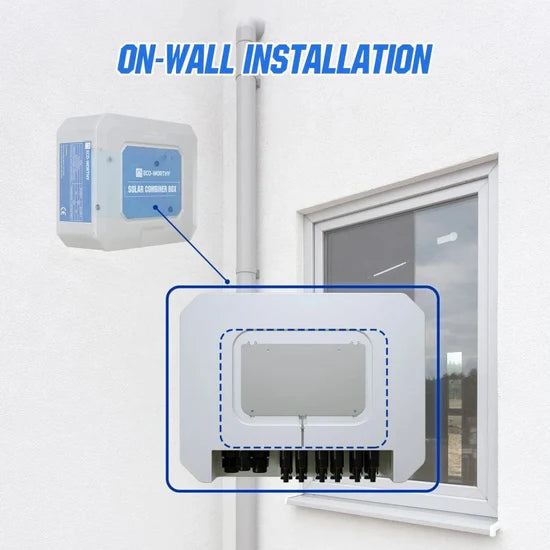

• Easy Installation: Metal bracket plate with on-wall installation and a detachable PV connector, equipped tool for easy disconnecting solar cables; larger space for manual wirings and with instant lock for the box.

INCLUDES:

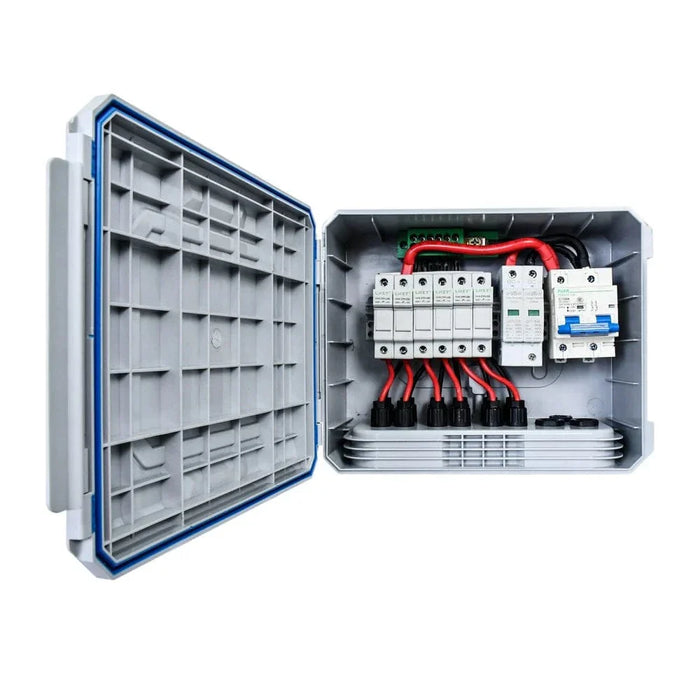

• 1 x 6 String PV combiner box
• 2 x Extra Fuses
• 4 x Screws

SPECIFICATIONS:
