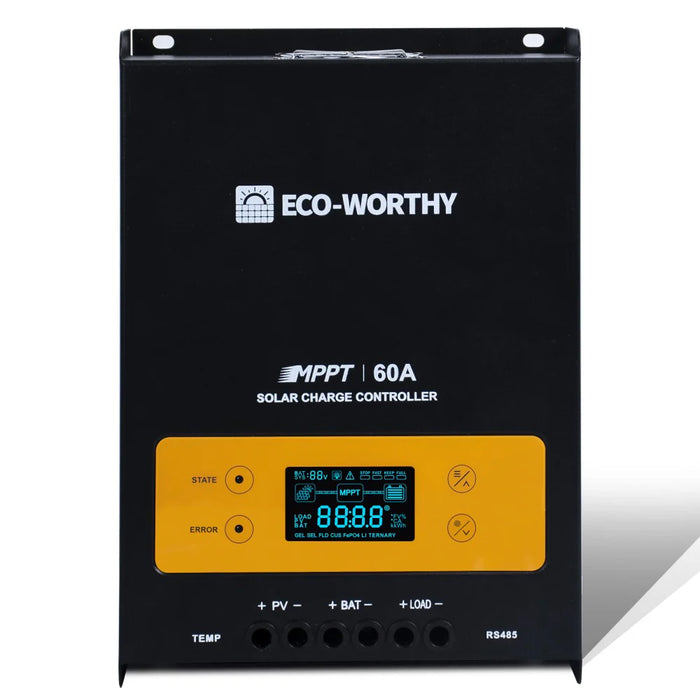

Eco-Worthy 60A 12/24/36/48V MPPT OLED Display Solar Charge Controller Regulator
ECO-WORTHY 60A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank. It's able to charge and discharge different kinds of 12/24/36/48V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries.
-

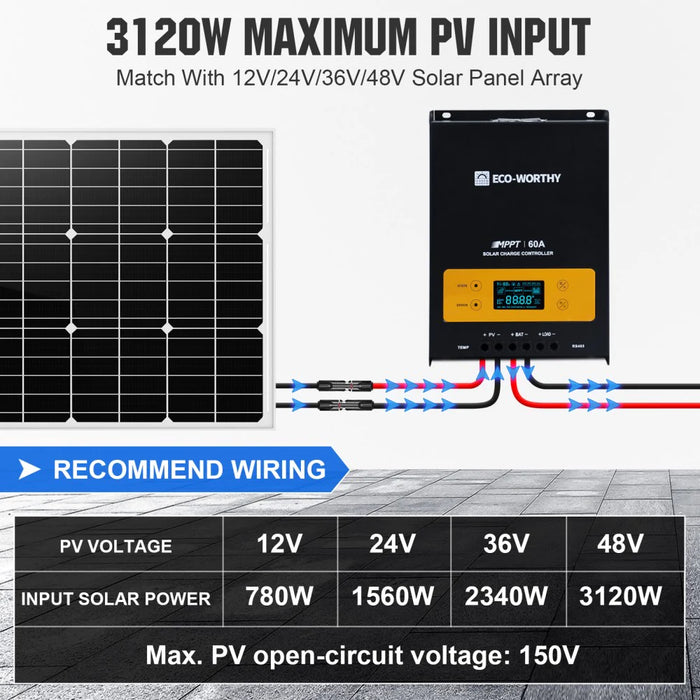

Wide Range of Input & Output: Compatible with 12V ~ 48V DC input, it's able to handle maximum of 780W(12V)/3120W(48V) input solar array, and can draw maximum of 60A output current to battery bank.
-

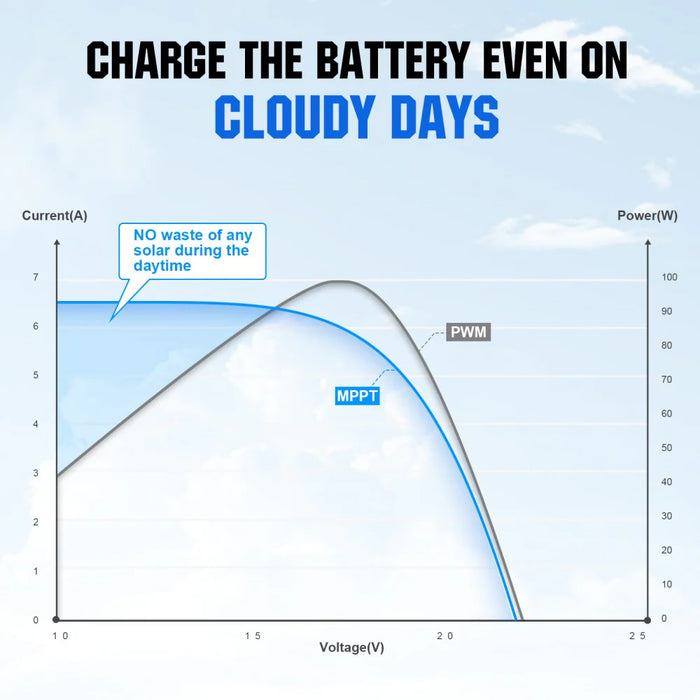

99% Efficient MPPT Technology: Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It can keep a stable charging current even on cloudy days, making no waste of any sunlight.
-

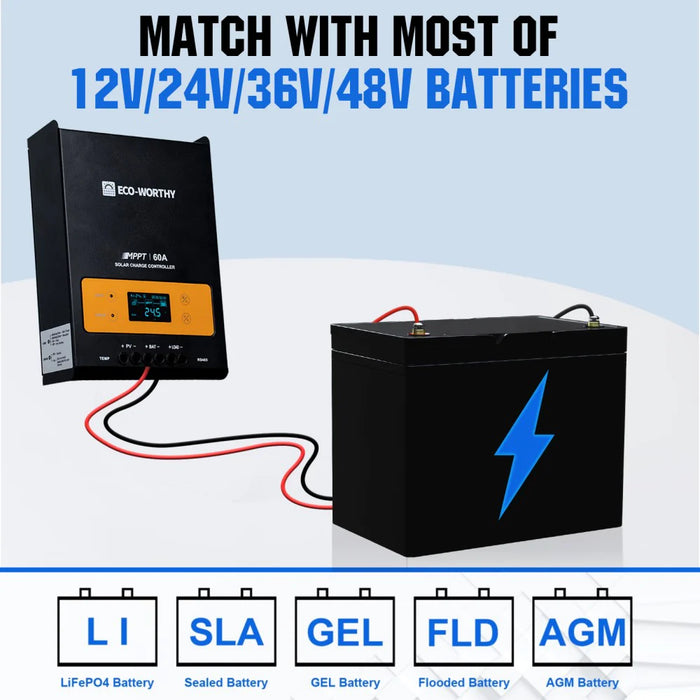

Compatible with All Kinds of Batteries: It's able to charge and discharge different kinds of 12/24/36/48V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries.
-
OLED Screen for Real-time Monitoring: Equipped with OLED screen, which can display the status of PV voltage, battery voltage, charging current, charging power, and the button can be used to change the battery's type.
-

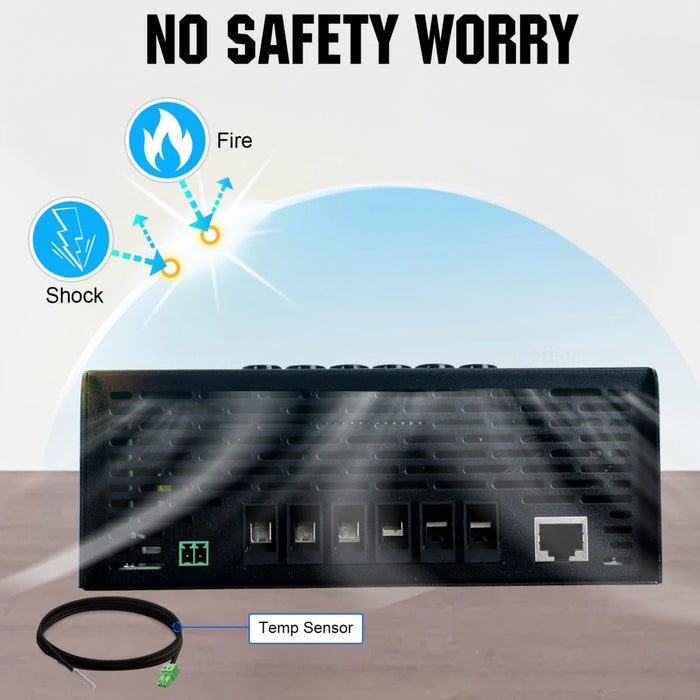

Reliable Electronic Protections: It has multiple protections to prevent those circuit issues, including Reverse Polarity, Short-Circuit, High Temperature, Over-Current, and Over-Voltage/Low-Voltage. Prevent explosions and fire conditions, keep the controller safe during working.
SPECIFICATIONS:
| Battery voltage：12V/24V/36V/48V |
Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode: MPPT |
Rated Load Current：30A |
| Charge Efficiency (Peak)：97% |
Max Charge current：60A |
| Battery Type：LiFePO4,AGM,Sealed,Gel,Flooded |
No-load static loss: 0.5W-1.2W |

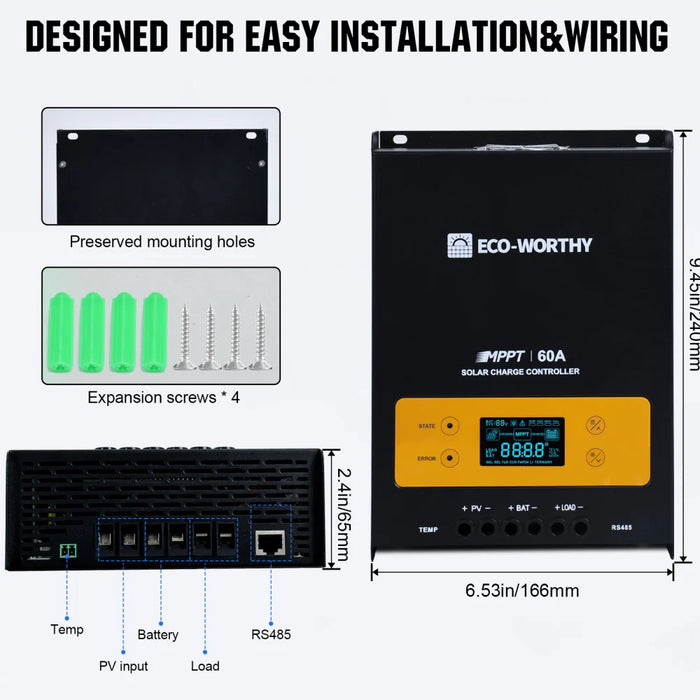

| Size：240*166*65mm |
Weight：1.96KG |
| Maximum wire size: 20mm2 |
|
