Eco-Worthy 1100W Off Grid Pure Sine Wave Inverter 12V to 110V
ECO-WORTHY 1100W Off Grid Pure Sine Wave Inverter 12V to 110V is a high-quality solar accessory that is perfect for off-grid systems, including cabins and tiny homes. A power inverter is an electrical device that transforms the DC power stored in batteries into standard household AC power for consumer electronic needs. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics without interference.
-
Power DC-AC Performance : 1100w Pure Sine Wave Power Inverter Provides DC 12V to AC 120V continuous power. Suitable for most electrical appliances in solar systems, homes, RVs, camping, including TVs, mobile phones, laptops, drones, cameras, etc.
-
ECO MODE : Conserving your system's energy. If you turn on ECO MODE, it will automatically enter ultra-low power standby mode when your load power is below 50W and a It will automatically supply power to the load once connected to a device with more than 50 power.
-
Remote-Real-time monitoring systems : 1100W inverter with Bluetooth Module, you can monitor the inverter status anytime and anywhere through APP, including battery voltage, output load power, temperature, current and other data.
-

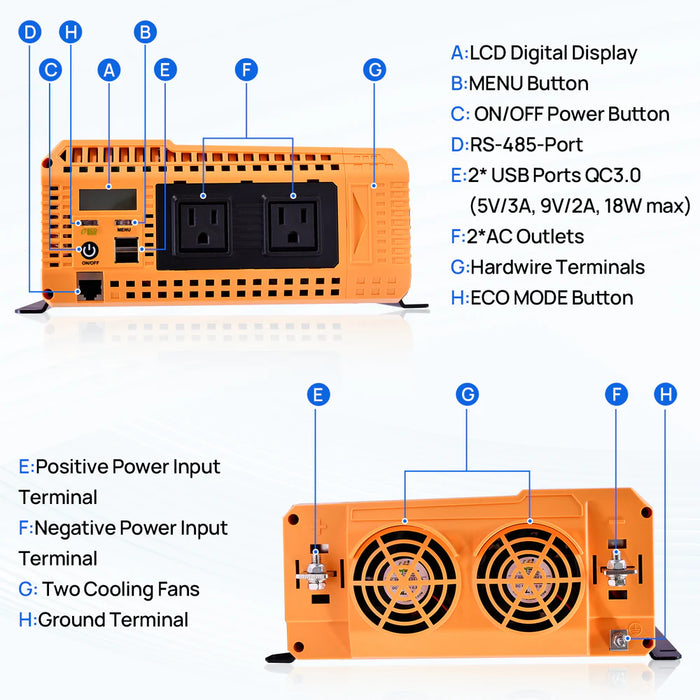

Safety Multi-Protection : LCD screen with warning message, overload protection, over-voltage protection, the built-in GFCI and double cooling fan, External transparent box with a 100A fuse (replaceable) to ensure heat dissipation and double guarantee your equipment safety.
INCLUSIONS:
- 1 x 1100W inverter
- 2 x US 15A AC outlets
- 2 x 18W USB ports(5V/3A, 9V/2A,18W max)
- 16.4 ft. extension cord
- 4AWG Battery Cable
- 100A Fuse Box
SPECIFICATIONS:
| Output Continuous Watts(W): 1100W+18W USB | Surge Capacity (Peak Power): 2200W |
| Rated Input DC (V,A): 12V Battery, 100A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 | Rated Output AC (V,A): 115Vac±10%, 9.5A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1A |
| Optimum Efficiency: 85% min | Fuse (A): 30A*4 |
| Fuse Type: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 10.6*9.8*4.1 in |
| Assembled Weight (kg): 3.65kg | External Fuse (Max Load Current):120A |
