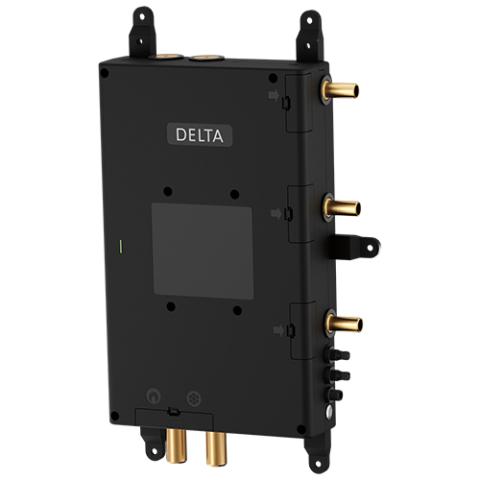

Delta ShowerSense 3-Port Digital Thermostatic Shower Rough (R53000E)
The Delta ShowerSense 3-Port Digital Thermostatic Shower Rough is the key to elevating your digital shower experience. Each port supports the connection of a single shower head, hand shower, or set of body sprays, with a maximum of 3 body sprays per port. Each port also features independent temperature and volume control.
Plus, when using the DFC@Home app, you can craft the ideal settings with up to 12 shower presets, so you can have the perfect shower every time. And when someone runs the washing machine or turns on the dishwasher, that perfect shower stays perfect thanks to the TempAssure thermostatic valve that prevents sudden and possibly unsafe changes in water temperature.
FEATURES:
- Includes 3 ports
- TempAssure thermostatic valve keeps water temperature within a safe range, protecting you from sudden temperature changes
- Separate mixing valves independently calibrated for each outlet
- Access customizable presets when connected to a compatible control interface
- Independent temperature and water volume control for each outlet port
- Built-in Wi-Fi for connection to the DFC@Home app and other Wi-Fi enabled devices
- When starting the shower from the DFC@Home app, the shower will pause once the desired temperature is reached
- Firmware updates via user interface when connected to Wi-Fi
- Test button for rough-in pressure check
- Diagnostic LED light
- Dimensions: 11.5"W (29.2 cm) x 3.0"D (7.6 cm) x 19.6"H (49.8 cm)
- Limited 2-year warranty (consumer use)
INCLUDES:
- Digital Shower Rough
- 12VDC/60W Power Adapter with 2.5m Wire
- 35' Interface Cable
- Interface Cable Adapter
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use)
SPECIFICATIONS:
| Model |
R53000E |
| Required Outlet |
120V |
| Maximum Power Requirement |
60W |
| Maximum Flow Rate (Per Outlet) |
9 gpm (36 L/min) at 80 PSI (550 kPa) |
| Maximum Flow Rate (All Outlets) |
27 gpm (102 L/min) at 80 PSI (550 kPa) |
| Minimum Flow Per Outlet Device or Shower Head |
1.2 gpm (4.5 L/min) |
| Maximum Operating Pressure |
100 psi (690 kPa) |
| Maximum Water Temperature |
150°F (66°C) |
| Inlet Connection |
3/4" NPT |
| Outlet Connection |
1/2" NPT |
| Width |
11.5" (29.2 cm) |
| Depth |
3.0" (7.6 cm) |
| Height |
19.6" (49.8 cm) |
| Weight |
6 lbs (2.7 kg) |
