Brizo Mystix Elemental Experience Steam Set - Round/Square Options
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. Lumicoat™ Technology repels liquid for advanced protection from spots, stains and build-up, without altering the appearance of the existing finish. With the featured Patented Dual Sensor Technology and the ability to program up to two user presets, you'll discover a ritual of wellness. The Mystix™ Elemental Experience Steam Set combines a Square/Round Control and a Linear Square Steam Head or a Contemporary Round Steam Head.
Steam Generator Sold Separately
FEATURES:
- Classic Steam Head offers 360° dispersion and 3/4" NPD
- Digital display of elapsed time and temperature
- Programmable for 2 user presets including time and temperature
- Timer goes up to 60 minutes
- Temperature ranges from 60˚F min to 125˚F max
- Patented Dual Sensor Technology delivers accurate temperature precision
- Essential oil reserve on top of Steam Head
- -L = Lumicoat™ Technology combats water spots and stains
- Selectable RapidMist preheats for quick starts only when connected to 8GE-TSG Series Steam Generators
- Optional 8CN-220L Exterior Control allows access from outside the shower space or steam room
INCLUDES:

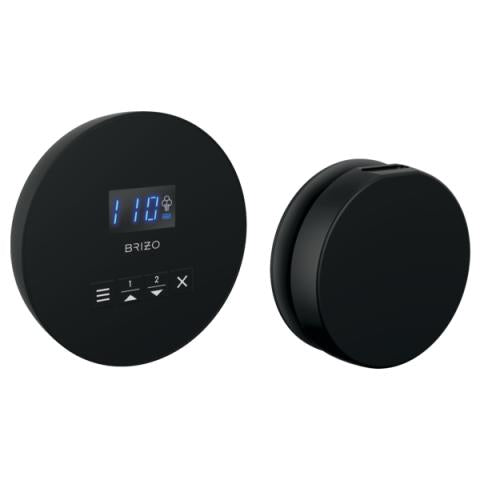

- Mystix™ Square/Round Control
- Linear Square Steam Head / Contemporary Round Steam Head
- Silicone Steam Head Cover
- Silicone Sealant
- 6-Pin Coupler
- Installation and Operation Manual
- 2-Year Limited Warranty
SPECIFICATIONS:
SQUARE
| Model |
8CH-250L |
|
|
| Control |
|
| Construction Material |
ABS Plastic |
| Display |
Digital Character Display |
| Interface |
Push Buttons |
| Maximum Time |
60 Minutes |
| Maximum Temperature |
125˚F |
| Length |
3.75" (95 mm) |
| Width |
.63" (16 mm) |
| Height |
3.75" (95 mm) |
|
|
| Steam Head |
|
| Construction Material |
Brass |
| Stead Head Connection |
3/4" NPT Female Thread |
| Length |
3.19" (81 mm) |
| Width |
1.25" (32 mm) |
| Height |
3.19" (81 mm) |
|
|
| Shipping Weight |
2 lbs |
ROUND
| Model |
8CH-250R |
|
|
| Control |
|
| Construction Material |
ABS Plastic |
| Display |
Digital Character Display |
| Interface |
Push Buttons |
| Maximum Time |
60 Minutes |
| Maximum Temperature |
125˚F |
| Diameter |
4" (102 mm) |
| Depth |
.63" (16 mm) |
|
|
| Steam Head |
|
| Construction Material |
Brass |
| Stead Head Connection |
3/4" NPT Female Thread |
| Diameter |
3.38" (86 mm) |
| Depth |
1.25" (32 mm) |
|
|
| Shipping Weight |
.8 lbs |
GUIDE:
