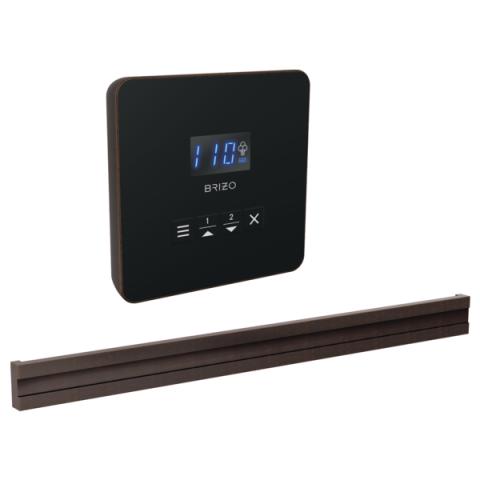

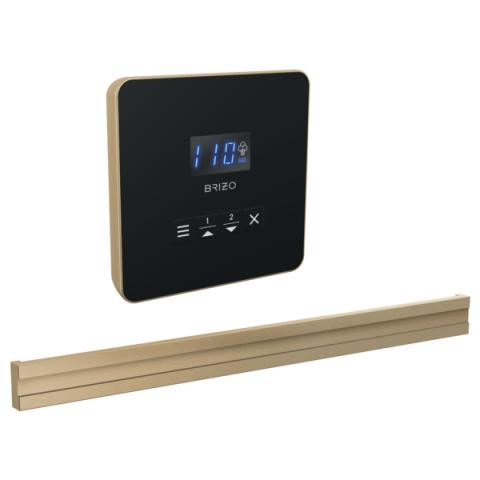

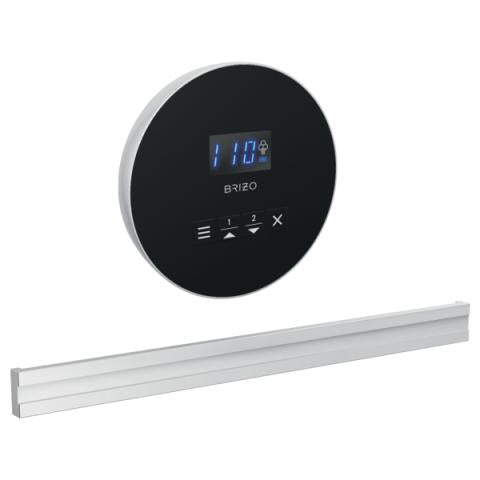

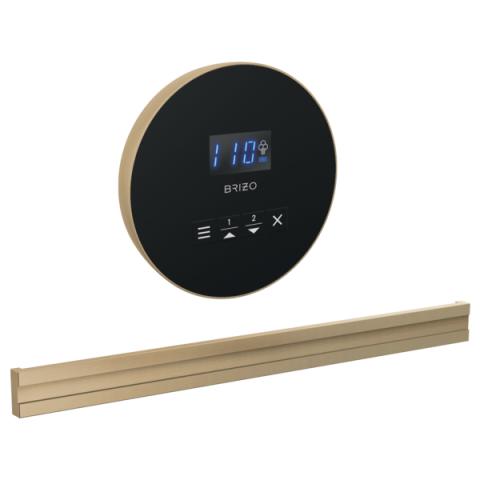

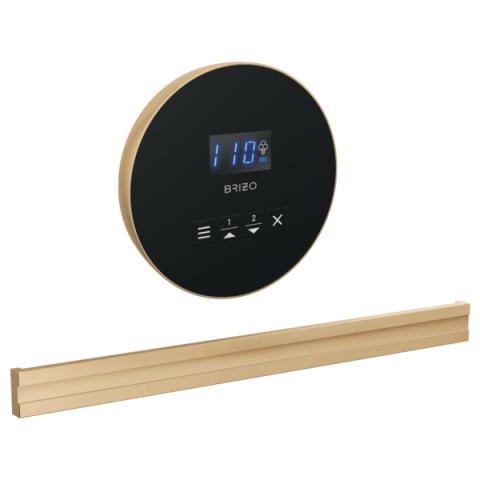

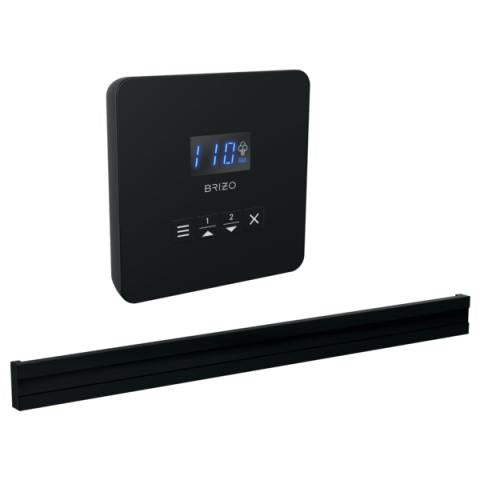

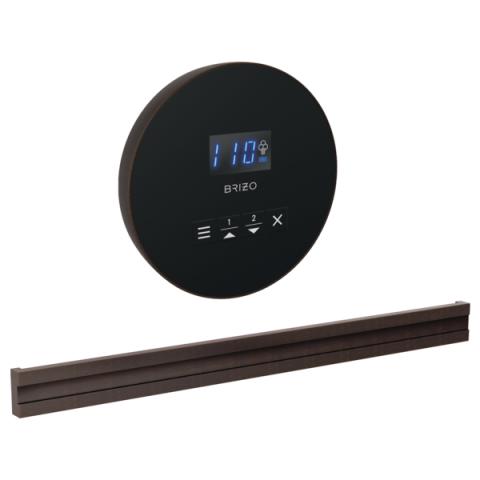

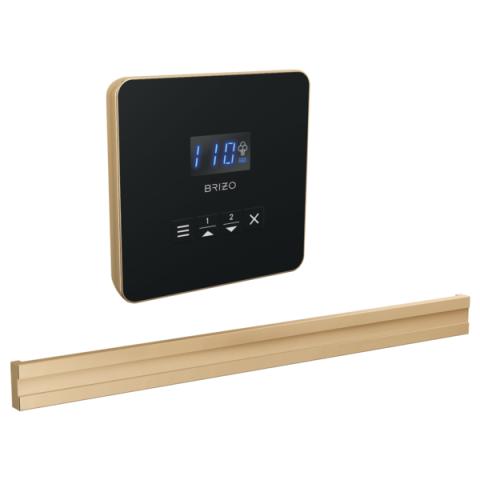

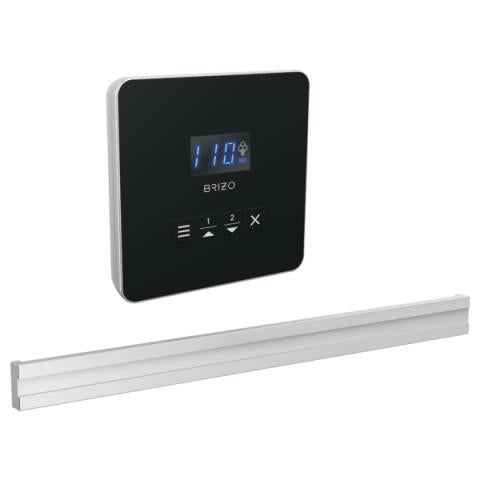

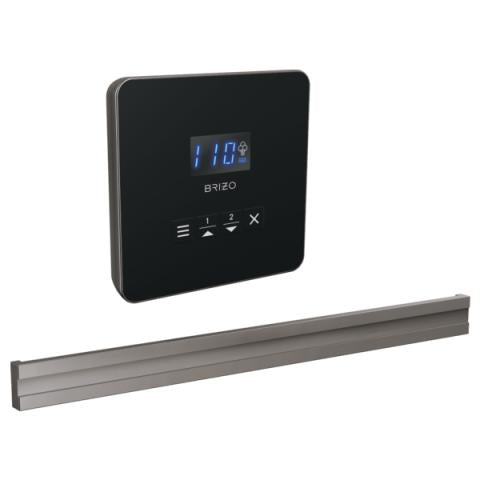

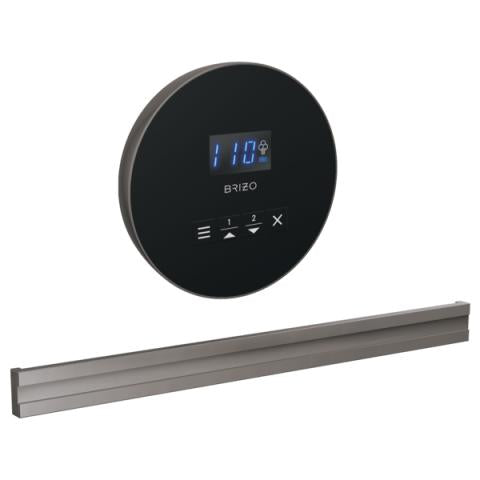

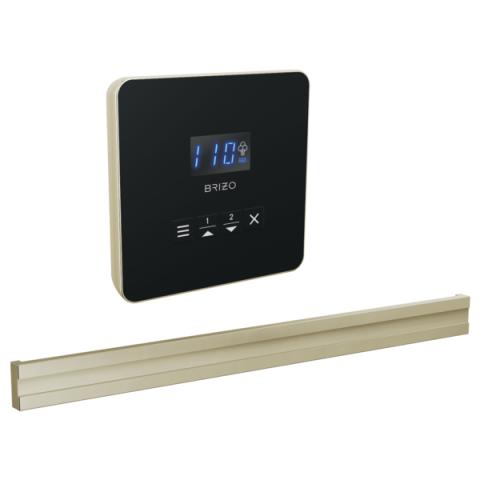

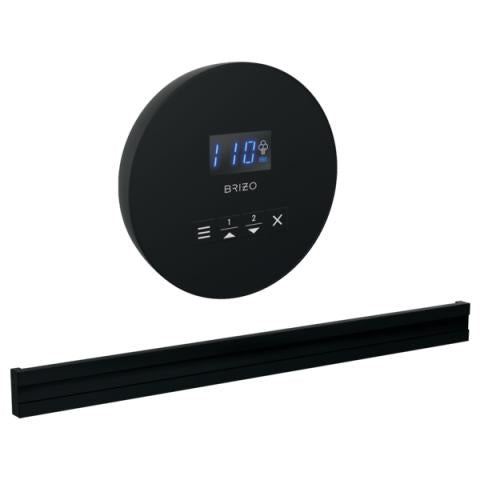

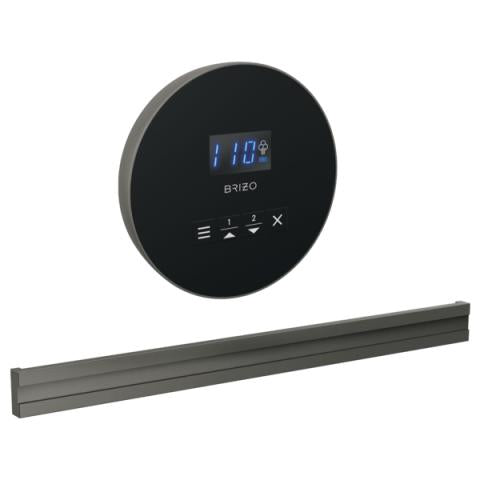

Brizo Mystix™ Elemental Experience Square/Round + Bilateral Steam Set
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. Lumicoat™ Technology repels liquid for advanced protection from spots, stains and build-up, without altering the appearance of the existing finish. With the featured Patented Dual Sensor Technology and the ability to program up to two user presets, you'll discover a ritual of wellness. The Mystix™ Elemental Experience Steam Set combines a Square/Round Control and a Bilateral Steam Head.
NOTE: Steam Generator Sold Separately
FEATURES:
- Bilateral Steam Head directs steam up and down for even dispersion and user comfort
- Digital display of elapsed time and temperature
- Programmable for 2 user presets including time and temperature
- Timer goes up to 60 minutes
- Temperature ranges from 60˚F min to 125˚F max
- Patented Dual Sensor Technology delivers accurate temperature precision
- -L = Lumicoat™ Technology combats water spots and stains
- Selectable RapidMist preheats for quick starts only when connected to 8GE-TSG Series Steam Generators
- Optional 8CN-220L Exterior Control allows access from outside the shower space or steam room
INCLUDES:
- Mystix™ Square/Round Control
- Bilateral Steam Head
- Solid Brass Steam Head Cover Plate
- Silicone Sealant
- 6-Pin Coupler
- Installation and Operation Manual
- 2-Year Limited Warranty
SPECIFICATIONS:
SQUARE
| Model |
8CB-250L |
|
|
| Control |
|
| Construction Material |
ABS Plastic |
| Display |
Digital Character Display |
| Interface |
Push Buttons |
| Maximum Time |
60 Minutes |
| Maximum Temperature |
125˚F |
| Length |
3.75" (95 mm) |
| Width |
.63" (16 mm) |
| Height |
3.75" (95 mm) |
|
|
| Steam Head |
|
| Construction Material |
Brass |
| Stead Head Connection |
3/4" NPT Female Thread |
| Length |
12" (305 mm) |
| Width |
.38" (10 mm) |
| Heigh |
1" (25 mm) |
|
|
| Shipping Weight |
3.5 lbs |
ROUND
| Model |
8CB-250R |
|
|
| Control |
|
| Construction Material |
ABS Plastic |
| Display |
Digital Character Display |
| Interface |
Push Buttons |
| Maximum Time |
60 Minutes |
| Maximum Temperature |
125˚F |
| Length |
4" (102 mm) |
| Width |
.63" (16 mm) |
| Height |
4" (102 mm) |
|
|
| Steam Head |
|
| Construction Material |
Brass |
| Stead Head Connection |
3/4" NPT Female Thread |
| Length |
12" (305 mm) |
| Width |
.38" (10 mm) |
| Height |
1" (25 mm) |
|
|
| Shipping Weight |
3.5 lbs |
