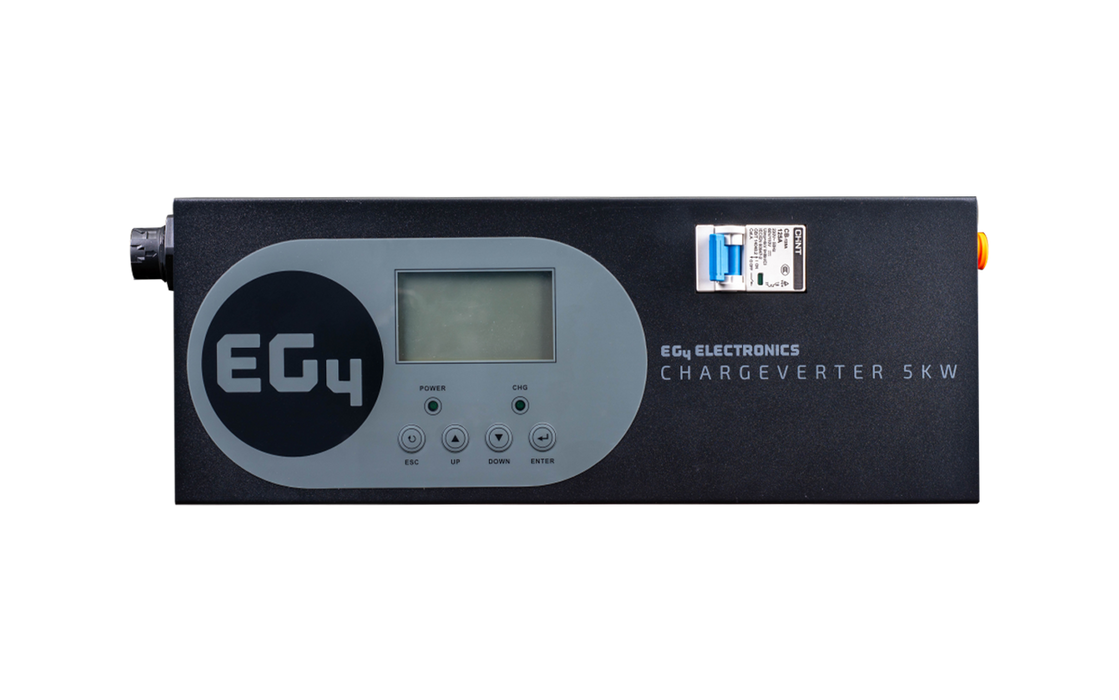

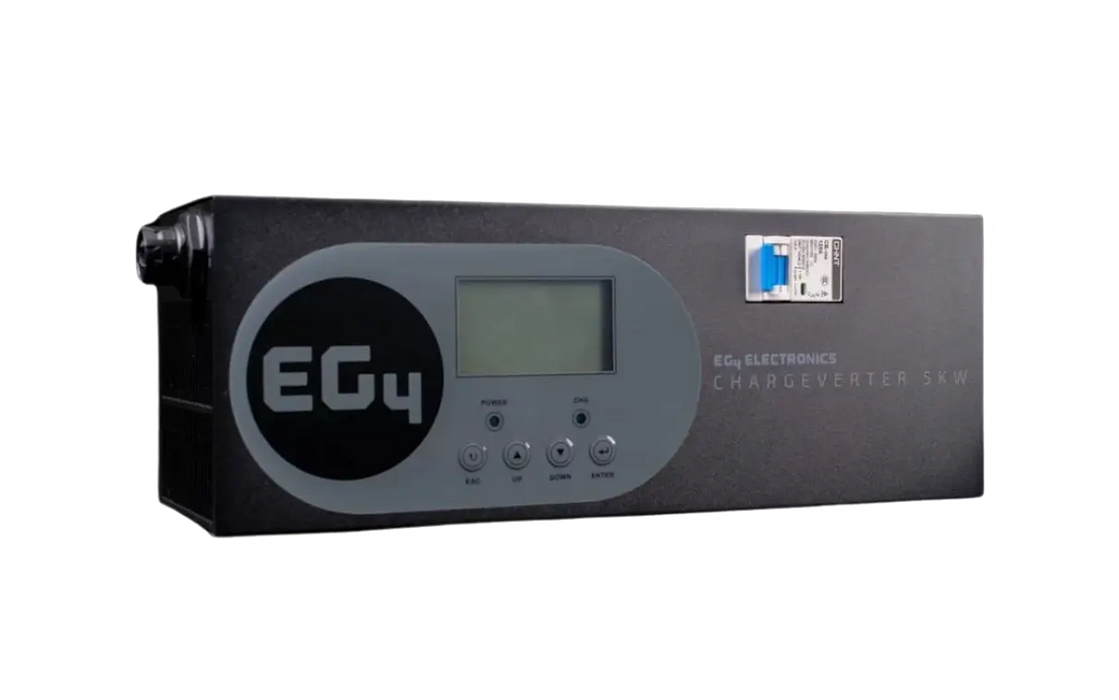

EG4 Chargeverter GC
FEATURES:
- 5120W Output
- Adjustable Charge Parameters
- Power Quality Protection
- Direct Generator Compatibility
- Dry Contacts
- Closed Loop Communications
- Built-In 125A Breaker
- Integration With EG4 Components
- Cables & Mounting Bracket Included
The EG4 Chargeverter GC is a powerful and efficient 48V battery charger, built to deliver up to 100A, with a 5120W output. Capable of charging a 5kWh battery in approximately one hour, this advanced charger ensures fast, reliable power delivery to any battery system, and features adjustable charge parameters so you can optimize output for your batteries.
The Chargeverter GC was built with safety and longevity in mind, and not only features a built-in circuit breaker for failsafe protection during operation, but this charger is also protected against unstable sine waves from lower-quality generators, helping to protect system components and guarantee consistent delivery.
Designed for seamless integration with EG4 components, the Chargeverter GC features full closed-loop communications, allowing it to charge intelligently based on the battery’s state of charge. This feature optimizes system efficiency and prolongs battery life, making it an essential component for any serious power storage system. Ensure you’re always powered and prepared with the Chargeverter GC from EG4!
SPECIFICATIONS:
AC INPUT:
| AC Input Voltage Range: |
90 – 264VAC |
| AC Frequency: |
50 – 60 Hz |
| Max. Input Current: |
26A @ 240VAC | 28A @ 120VAC |
| Idle Consumption: |
~10W |
CHARGER OUTPUT:
| Nominal Battery Voltage: |
48VDC |
| Default Charge Voltage: |
54VDC |
| Charge Voltage Range: |
43 – 57VDC |
| Charge Current Range: |
0 – 100A @ 240VAC | 0 – 50A @ 208VAC | 0 – 45A @ 120VAC |
| Max. Output: |
5120W @ 240VAC | 3050W @ 120VAC |
| Max. Efficiency: |
94% @ 240VAC | 92% @ 120VAC |
OPERATING ENVIRONMENT:
| Operating Temperature Range: |
14ºF – 131ºF (-10ºC – 55ºC) |
| Storage Temperature Range: |
5ºF – 140ºF (-15ºC – 60ºC) |
| Operating Altitude: |
0 ~ 4291 ft (1500 m) |
| Relative Humidity (Non-Condensing): |
5 – 95% |
| Protection Rating: |
IP21 |
| Interface Connector: |
NO, NC, & C (RJ11 Jack) |
| Communication Port: |
RS485 (RJ45 Jack) |
DIMENSIONS:
| Weight: |
13 lbs (5.9 kg) |
| Depth: |
4.9 in (124 mm) |
| Width: |
13.2 in (335 mm) |
| Height: |
5 in (127 mm) |
