Big Battery Apollo 5K Ultra-Fast Portable Solar Power Station with Kit Options
Apollo 5K Ultra-Fast Portable Solar Power Station
The Apollo 5K Ultra-Fast Portable Solar Power Station is one of the fastest-charging and most powerful portable solar generators available. Featuring a 5,376 Wh LiFePO₄ battery, the Apollo 5K can fully recharge from solar in as little as 90 minutes at 4.4 kW, delivering reliable power for homes, off-grid living, emergency backup, and professional use. A single charge can run a full-size refrigerator for up to 60 hours, while the long-life battery is engineered for 20+ years of regular use.

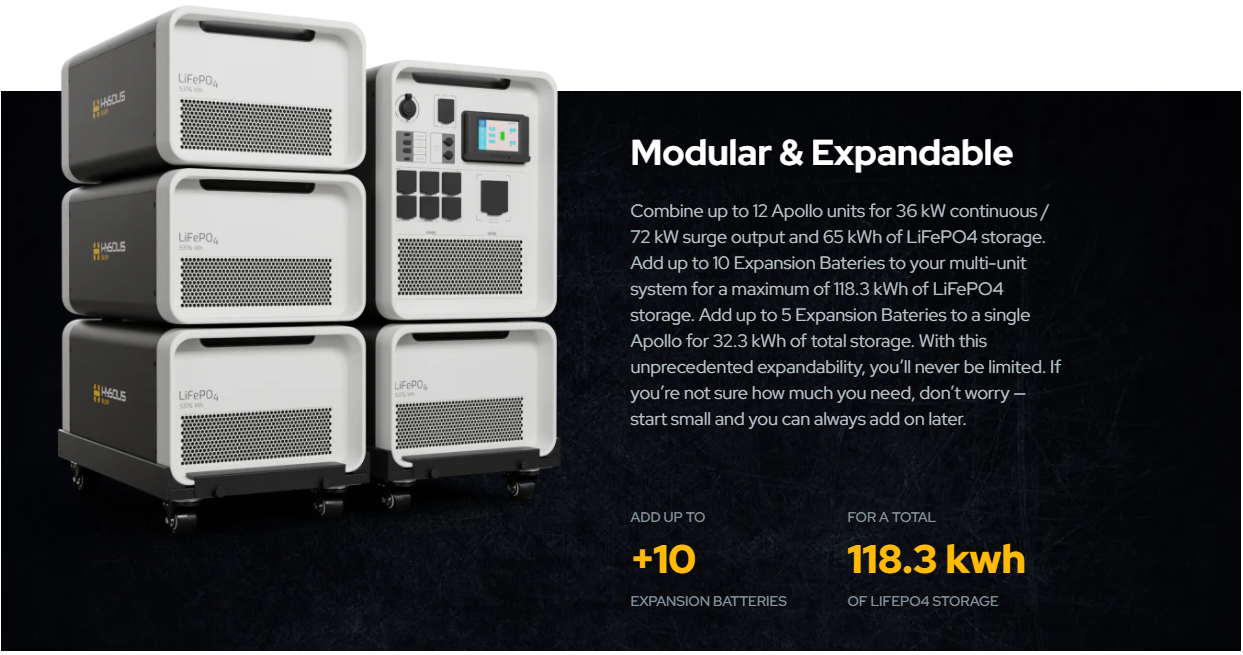

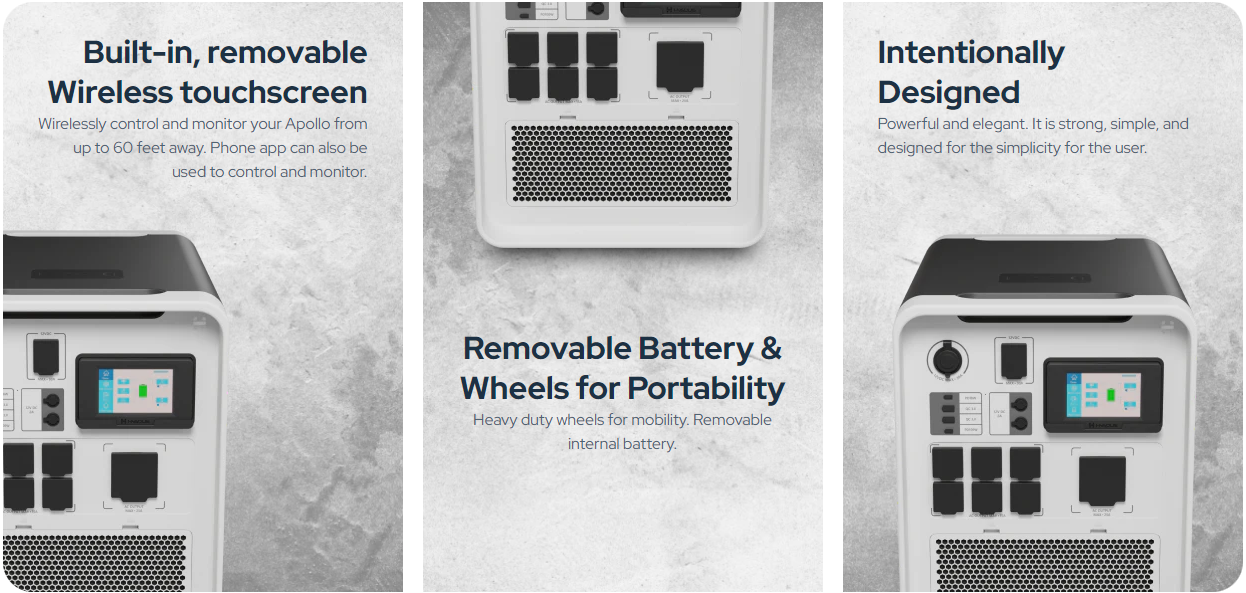

Designed for flexibility and scalability, the Apollo 5K supports modular expansion up to 118 kWh of LiFePO₄ storage – enough to power an average home for multiple days. Users can monitor and control the system via a wireless touchscreen or mobile app from up to 60 feet away, while a wide range of AC and DC inputs and outputs allows charging from solar, grid, or alternative sources. Trusted by 1,200+ homeowners, off-grid users, and the U.S. Forest Service, and backed by 100% U.S.-based customer support, the Apollo 5K delivers unmatched performance, reliability, and peace of mind wherever power matters most.
Apollo 5K Expansion Battery
The Apollo 5K Expansion Battery is a high-capacity 5,376 Wh LiFePO₄ battery designed to seamlessly expand the Hysolis Apollo 5K power system. Built for long-term performance, it delivers 6,000+ life cycles and integrates directly into the Hysolis ecosystem for easy, reliable capacity expansion.
Each expansion battery features its own integrated BMS and can operate as a standalone power source, compatible with solar, wind, AC, and DC charging. Stack up to three expansion batteries on Apollo wheels, combine one expansion battery with one Apollo unit, or connect additional batteries alongside the system using the included cable. With support for up to five expansion batteries per Apollo, the Apollo 5K Expansion Battery provides flexible, scalable energy storage for backup power, off-grid use, and renewable energy systems.
SPECIFICATIONS:
120VAC (240VAC with 2 Units) 3,000 W Continuous / 6,000 W Surge (6,000 W Continuous / 12,000W Surge w/ 2 Units)
BATTERY BANK
| Rated Voltage |
51.2V |
| Battery Type |
LiFePO4 |
| Battery Capacity |
5,376Wh |
| Life Cycles |
6,000+ |
BMS SETTINGS
| High Voltage Protection |
60.0 V DC |
| Low Voltage Protection |
40.0 V DC |
| Low Voltage Recovery |
44.8 V DC |
| Floating charge voltage |
58.4 V DC |
| Max Current |
105 A |
| AC Input Voltage |
65 V – 140 V |
| Frequency |
60 Hz or 50 Hz (Auto detection) |
CHARGE
| AC Charger |
3,000 W |
| Car / DC Charger |
240 W |
| Solar Charger |
4,400 W, MPPT Input (Manufacturer Warrantied Voc range 60 V DC – 500 V DC) |
|
|
AC OUTPUT
| Voltage Range |
120 V AC +/- 5% (Inverter Mode) |
| Output Wave |
Pure Sine Wave |
| Efficiency |
>94% |
| Frequency |
60 Hz or 50 Hz +/- 1% (Inverter Mode) |
| Transfer Time |
<20 ms (Typical load) |
DC OUTPUT
| 5 V USB |
USB 2.0 x2, USB 3.0 x1, USB-C x1 |
| 12 V DC 30A Anderson Port |
x1 |
| 12 V DC 15A Cigarette Lighter |
x1 |
| 5 V Wireless Charging Pad |
x1 |
| 12 V DC 2A DC5221 Port |
x2 |
WORKING TEMPERATURES
| Operating Ambient Temp |
+32 to +104 F (0 to +40 C) |
| Storage Ambient Temp |
+14 to +115 F (-10 to +45 C) |
SIZE / WEIGHT
| Product Size |
L 23.2 in x W 14.6 in x H 18.6 in (18.9 including feet) (L 589mm x W 371mm x H 472mm [480mm including feet]) |
| Weight |
131 lbs (59.5 kg) |
| AC Input (UPS + Charge) |
3,600 W |
| Solar Input (Inversion + Charge) |
5,000 W |
| AC + Solar (UPS + Charge) |
7,400 W |
INCLUDES:
Apollo 5K
- 1x Apollo 5K
- 1x AC Charging Cord + RV Plug Adapter
- 1x DC Charging Cord
- 1x Solar Breaker
- 1x Grounding Rod + Cable
Apollo 5K with 10.6kWh Battery
- 1x Apollo 5K
- 1x AC Charging Cord + RV Plug Adapter
- 1x DC Charging Cord
- 1x Solar Breaker
- 1x Grounding Rod + Cable
- 1× Apollo 5K Expansion Battery
Apollo 5K with 15.9kWh Battery
- 1x Apollo 5K
- 1x AC Charging Cord + RV Plug Adapter
- 1x DC Charging Cord
- 1x Solar Breaker
- 1x Grounding Rod + Cable
- 2× Apollo 5K Expansion Battery
