Battery Evo Walrus Arctic Extension Pack - 200Ah 15.5kWh
OPTIONS:
- Walrus Arctic Extension Pack - 200Ah 15.5kWh
- Walrus Arctic Extension Pack (2X Kit) - 400Ah 31kWh
- Walrus Arctic Extension Pack (3X Kit) - 600Ah 46.5kWh
PRODUCT INFORMATION:
The WALRUS ARCTIC Extension Pack provides an opportunity to increase storage capacity, serving as a sophisticated and portable power solution suitable for various uses, including solar setups, off-grid configurations, and as an emergency power source. This extension pack, when paired with the WALRUS ARCTIC unit, brings an additional 15.5 kWh of external battery capacity, promising consistent power across a multitude of environments.
Featuring our state-of-the-art Battery Management System (BMS), the WALRUS ARCTIC Extension Pack is optimized for operation in a wide temperature spectrum, making it especially useful in cold weather. Equipped with high-quality LiFePO4 cells and equipped with durable caster wheels, it provides flexible storage options, ensuring you can easily relocate it as needed.
Redefining the standards for battery management and safety within its class, the pack guarantees a steady power supply and upholds the utmost safety protocols. Its built-in LED Smart Display allows for the real-time tracking of battery conditions and performance. Elevate your energy setup and maximize your power capabilities with the WALRUS ARCTIC Battery Extension Pack today!
SPECIFICATIONS:
| SKU: |
EXT-WLRS-72155L-G1 |
| Name: |
WALRUS ARCTIC Extension Pack |
| System Voltage: |
72V |
| Nominal Voltage: |
76.8V |
| Chemistry: |
LFP |
| kWh Capacity: |
15.5kWh |
| Ah Capacity: |
200Ah |
| Charging Voltage: |
82.8V - 87.6V |
| Max Charge Voltage: |
88.2V |
| Operating Voltage Range: |
67.2V - 87.6V |
| Suggested Low Voltage Cutoff: |
67.2V - 76.2V |
| Cell Configuration: |
24S1P |
| Max Continuous Discharge Current: |
100A |
| Max Continuous Power: |
8000W |
| Max Discharge Peak Power: |
16000W (5 seconds) |
| Max Charge Current: |
100A |
| Charge Temperature Range: |
0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: |
-20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: |
15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: |
-5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: |
440lbs (199.6kg) |
| Depth: |
24.4in (620mm) |
| Width: |
15.4in (390mm) |
| Height: |
41.78in (1061.45mm) |
| Safety Features: |
Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: |
Up To (8) Parallel |
| Battery Spec Sheet: |
View |
SUITABLE FOR:
- LEAD ACID REPLACEMENT
- OFF-GRID SYSTEMS
- GRID-TIE
- RESIDENTIAL BACKUP
- EMERGENCY POWER
- COMMERCIAL SYSTEMS
- WORKSITE BACKUP
Walrus Arctic Extension Pack - 200Ah 15.5kWh
- 1 X WALRUS ARCTIC EXTENSION PACK-S
- 1 X 4AWG BE175 to BE175 Extension Cable

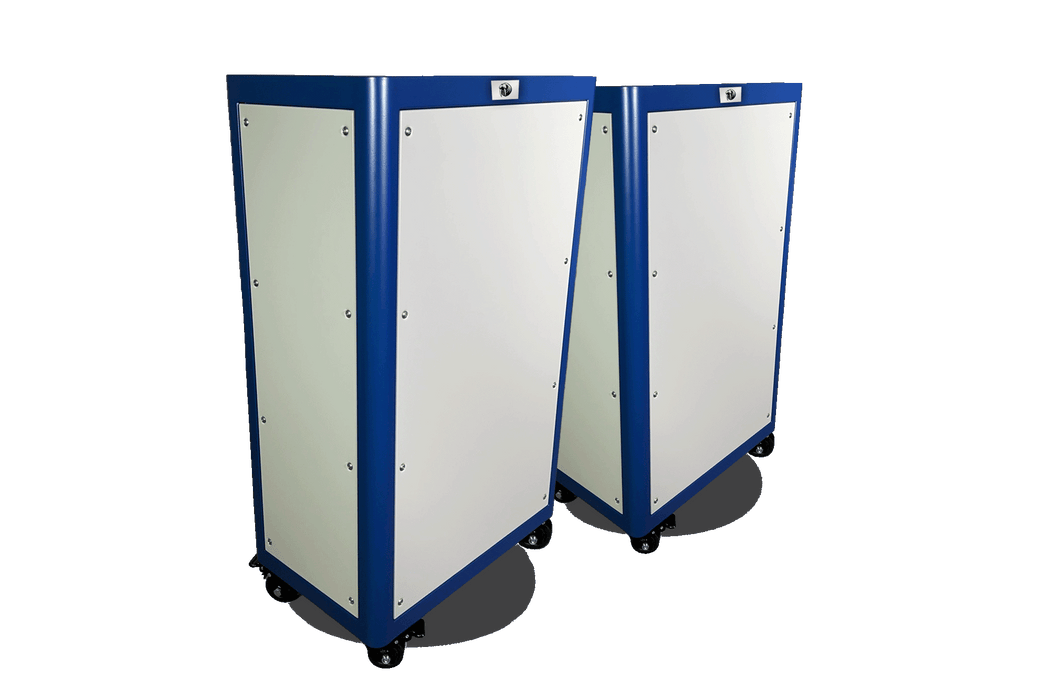

Walrus Arctic Extension Pack (2X Kit) - 400Ah 31kWh
- 2 X WALRUS ARCTIC EXTENSION PACK-S
- 2 X 4AWG BE175 to BE175 Extension Cable

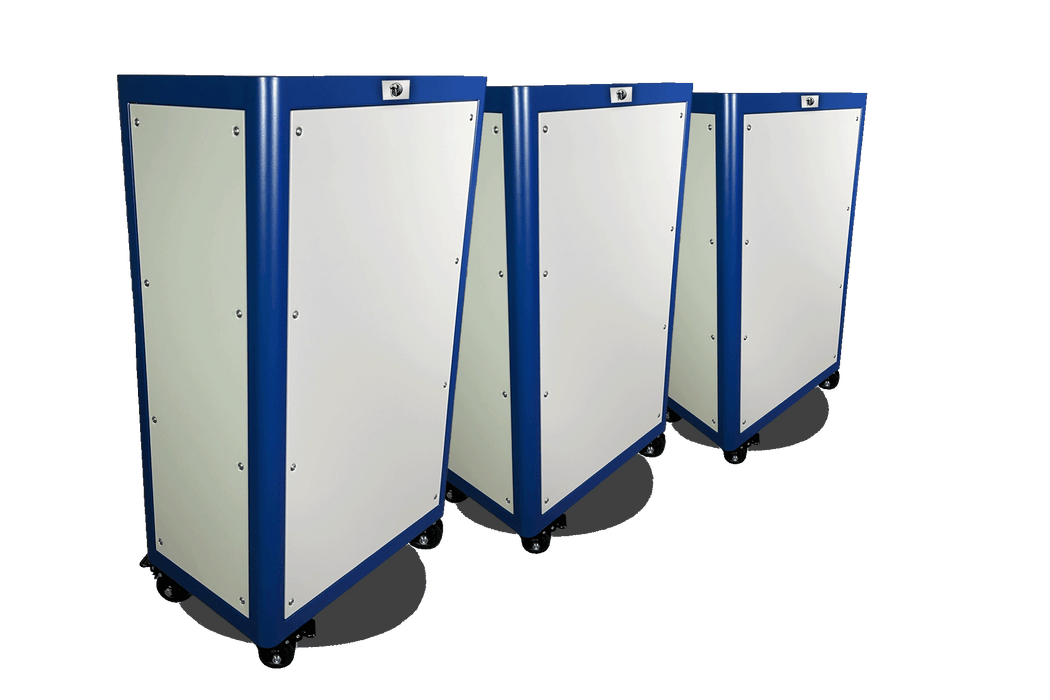

Walrus Arctic Extension Pack (3X Kit) - 600Ah 46.5kWh
- 3 X WALRUS ARCTIC EXTENSION PACK-S
- 3 X 4AWG BE175 to BE175 Extension Cable
