Battery Evo Grizzly Energy Storage System Cabinet - 207kWh + 66K Inverter

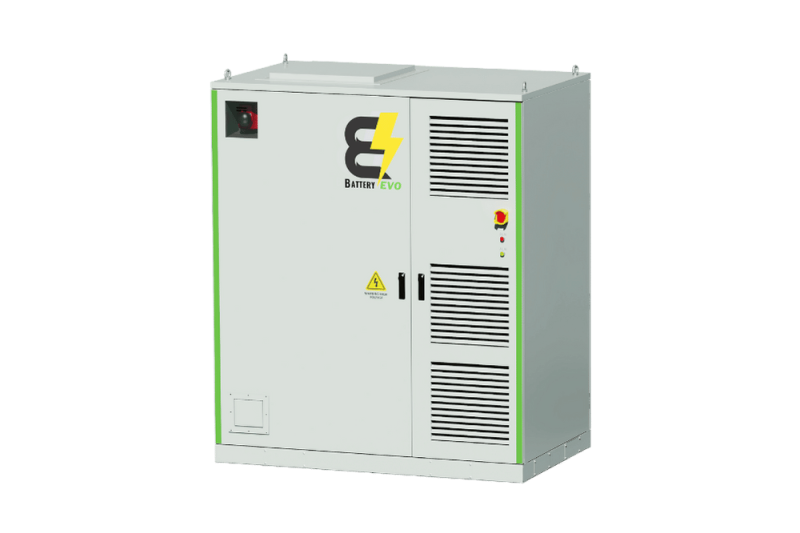

Introducing the BatteryEVO GRIZZLY Energy Storage System Cabinet, a UL-listed, industrial-grade power solution designed for installation in electrical rooms within commercial buildings.
This robust system is expertly engineered to offer a comprehensive energy management solution for demanding industrial applications. With its high-capacity 207 kWh storage and a powerful 66k inverter, the GRIZZLY System ensures seamless power supply, supporting heavy machinery and critical industrial operations. Its advanced LFP battery technology and 480V AC compatibility make it a standout choice for enhancing energy efficiency and reliability in large-scale settings.
Built to endure, the AC480V/207kWh GRIZZLY Battery is designed for a reliable service life of over 10 years, contingent upon operational conditions. It integrates smoothly into existing electrical systems, providing an all-in-one solution that simplifies installation and reduces setup times.
The GRIZZLY System is exceptionally versatile, supporting a variety of power configurations including 3P3W+PE setups. It excels in environments without solar power but can also integrate with grid-tied and DC solar systems, thanks to its high voltage MPPT range. It’s equipped with Wi-Fi and network connectivity, enabling remote monitoring and management. Features like the programmable charge/discharge scheduler enhance operational control, while its substantial weight and size reflect its capacity and durability.
FEATURES:
- Suitable for grid-tied and off-grid applications with high voltage solar input.
- Wired connections to support stable and high-capacity power flow.
- Dual MPPT controllers to maximize solar energy utilization.
- 480V AC outlets for direct industrial use.
- Wheels for mobility within the installation site, eliminating the need for permanent wall mounting.
- Expandable setup by connecting multiple GRIZZLY units for increased capacity.
- Manufactured in the USA with a 10-year warranty, ensuring long-term reliability and industry-leading customer support.
What Can Grizzly Do?
The Grizzly is an all-in-one rugged energy storage system designed to power medium to large industrial, agricultural, and commercial properties.
Energy Efficiency Improved: Energy consumption can be detected, managed and adjusted by using Grizzly EMS with application.
Emergency Battery Backup: In case of power outages the Grizzly ESS system will kick in to keep your entire building powered.
Off-Grid Power: The Grizzly ESS system is powerful enough to reliably take any home off-grid.
SUITABLE FOR:
- OFF-GRID SYSTEMS
- UL LISTED
- INDUSTRIAL BATTERY BACKUP
- CONSTRUCTION SITES
- HOMES WITH SOLAR
- HOMES WITHOUT SOLAR
SPECIFICATIONS:
| SKU: |
EVO-GRZL-60207-648 |
| System Voltage: |
AC480V |
| Nominal Voltage: |
691.2V |
| Chemistry: |
LFP |
| kWh Capacity: |
207kWh |
| Ah Capacity: |
300Ah |
| Charging Voltage: |
700V - 830V |
| Max Charge Voltage: |
831.6V |
| Operating Voltage Range: |
604.8V - 750V |
| Suggested Low Voltage Cutoff: |
604.8V - 685.8V |
| Cell Configuration: |
216S1P |
| Max Continuous Discharge Current: |
125A |
| Max Continuous Power: |
66kVA |
| Max Charge Current: |
32.5*2 A(MPPT) |
| Charge Temperature Range: |
0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: |
-10°C (14°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: |
15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: |
-5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: |
6614lbs (3000kg) |
| Depth: |
72.83in (1850mm) |
| Width: |
57.09in (1450mm) |
| Height: |
84.65in (2150mm) |
| Safety Features: |
Perfluorhexone fire protection & UL Listed & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Extended Solution: |
Parallel Connection Available |
| Spec Sheet: |
View |
