Eco Battery 51V 60AH Battery Bundle | EZGO RXV Samsung Gen1

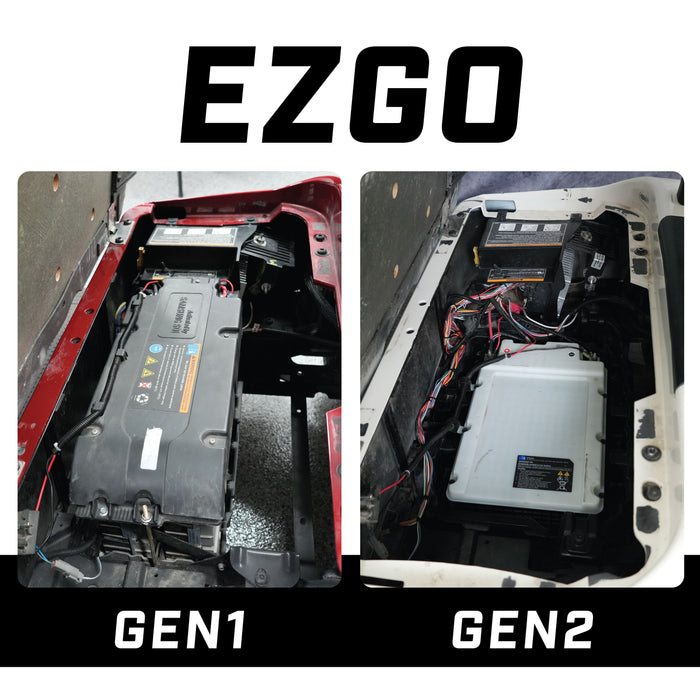

Replace your failed E-Z-GO RXV Gen 1 factory lithium battery with the Eco Battery 51V 60Ah Gen3 lithium conversion kit. Engineered specifically for E-Z-GO RXV Samsung Gen1 factory lithium carts, this LiFePO4 system delivers reliable everyday performance, efficient power delivery, and dependable operation on every ride. Featuring the E-Z-GO Factory Lithium Samsung Gen1 adapter and cart-specific Gen3 BMS firmware, this bundle provides a factory-style lithium replacement while retaining essential cart functionality and simplifying installation. Built for dependable performance and serviceability, the Eco Battery system offers a reliable, future-ready solution for replacing your factory lithium battery.
DETAILS:
This Bundle Contains:

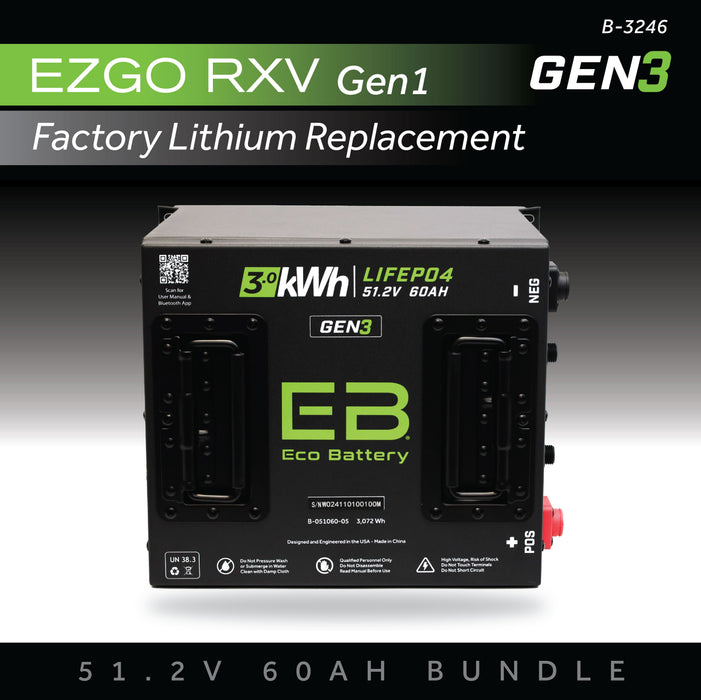

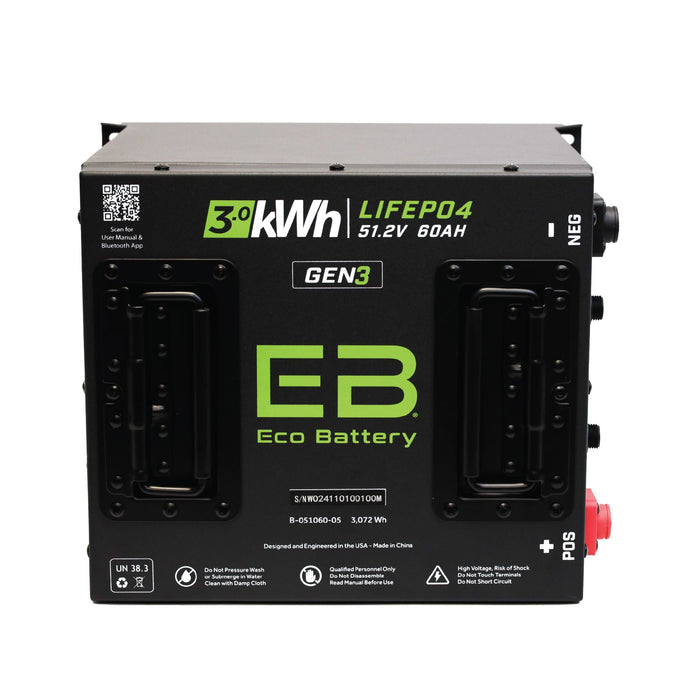

A-051060-05 51V 60AH Skinny LiFePO4 Battery GEN3

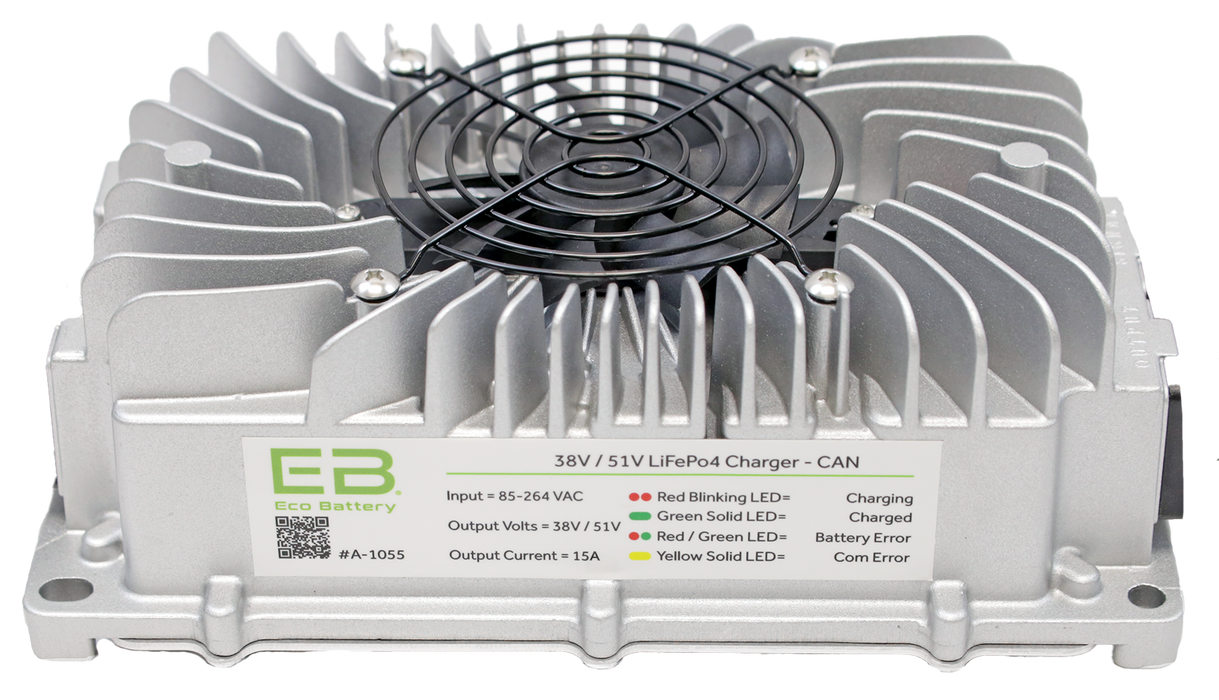

A-1055 38V-51V 15A CAN Charger

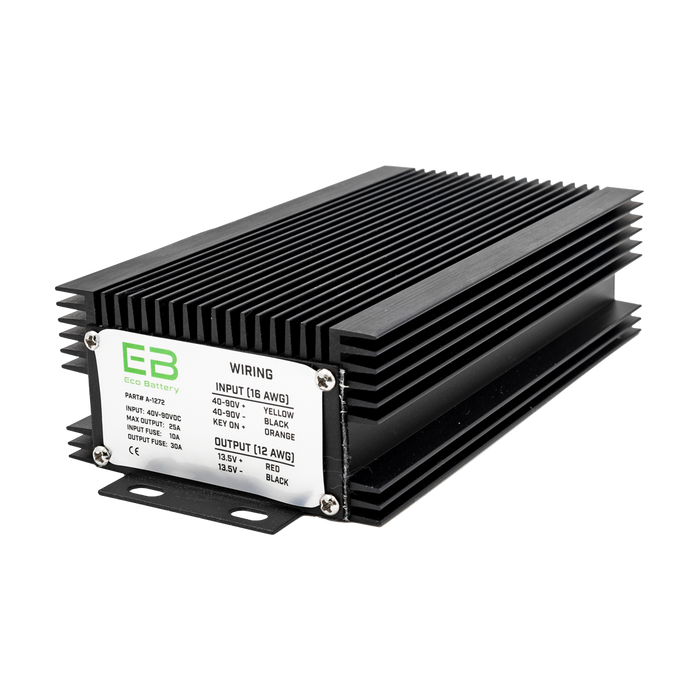

A-1272 DC-DC 12V Converter / 40V-90V Input

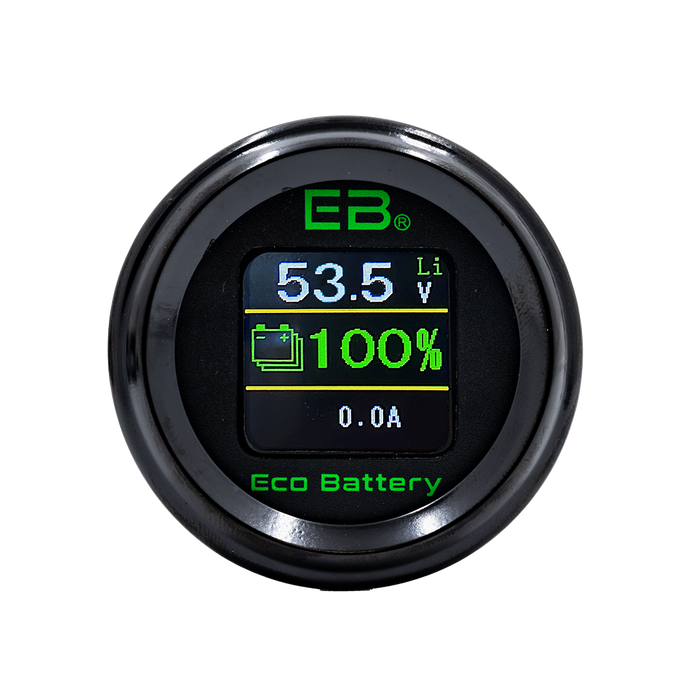

A-3109 CAN LCD SOC Meter / Auto Baud / Eco Battery

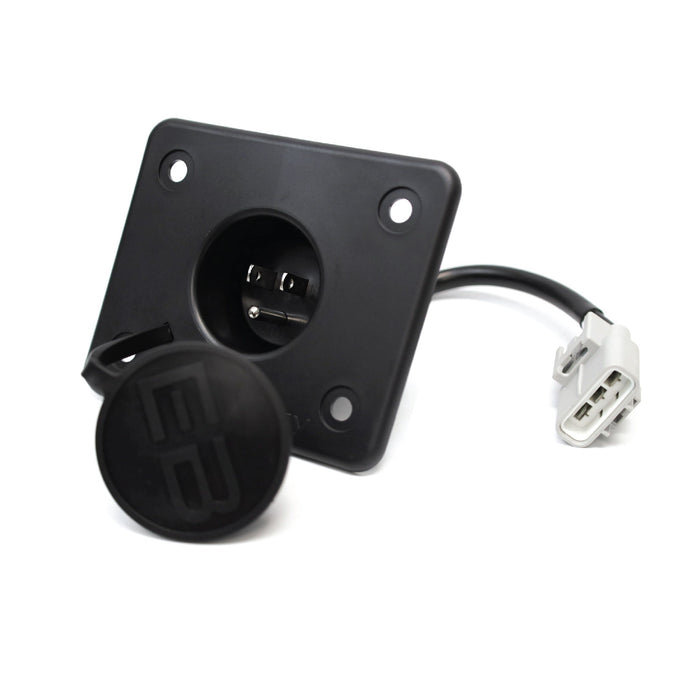

A-4032 Eco Battery Charge Port / EZGO RXV / 110V Plug - Quick Connect Plug

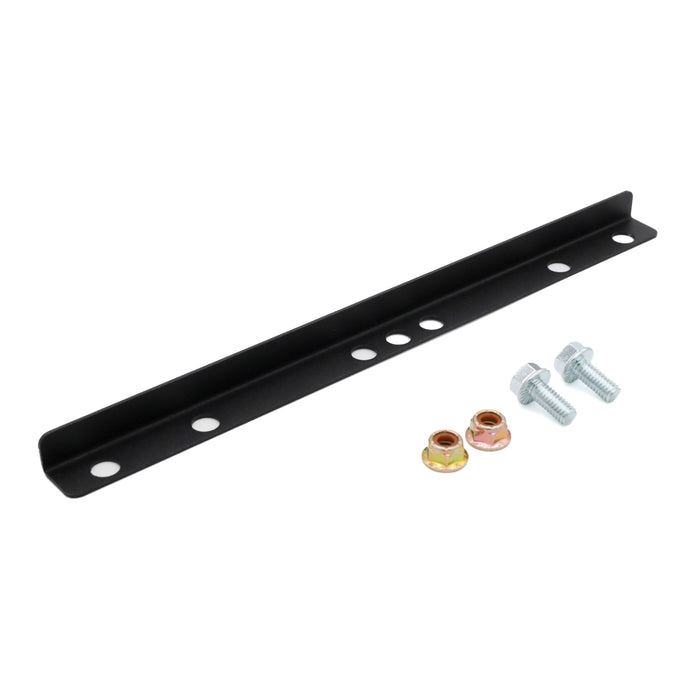

A-8103 Mounting Kit / EZGO Factory Lithium / Cube Battery

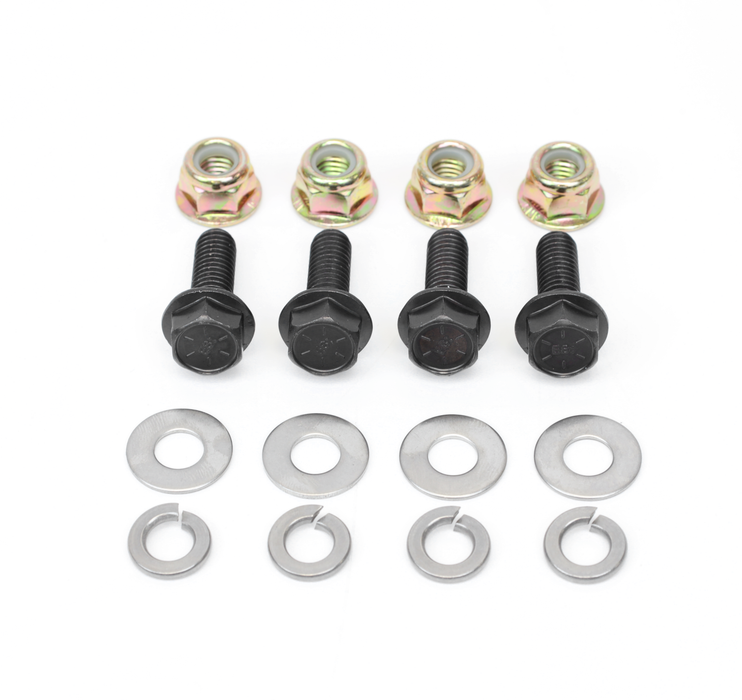

A-8004 Battery Mounting Hardware / 1/4in

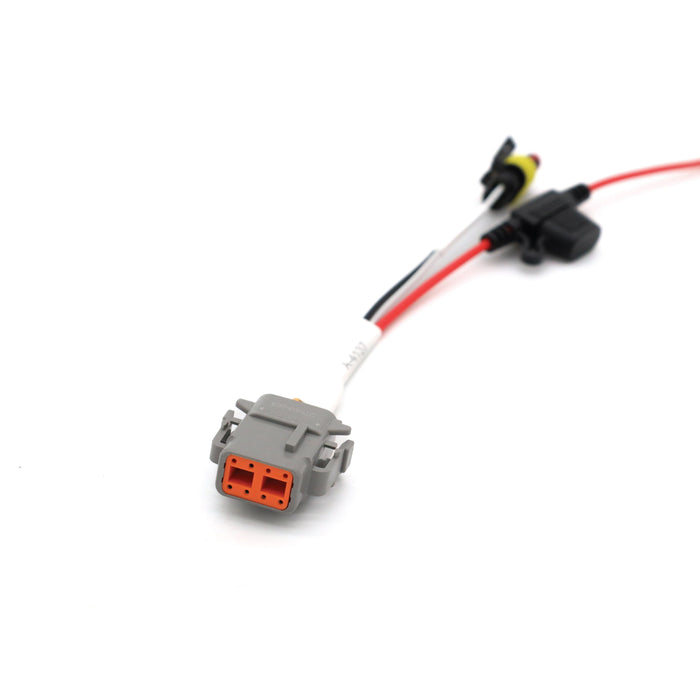

A-4137 Factory Lithium Conversion Adapter / EZGO Samsung Gen1

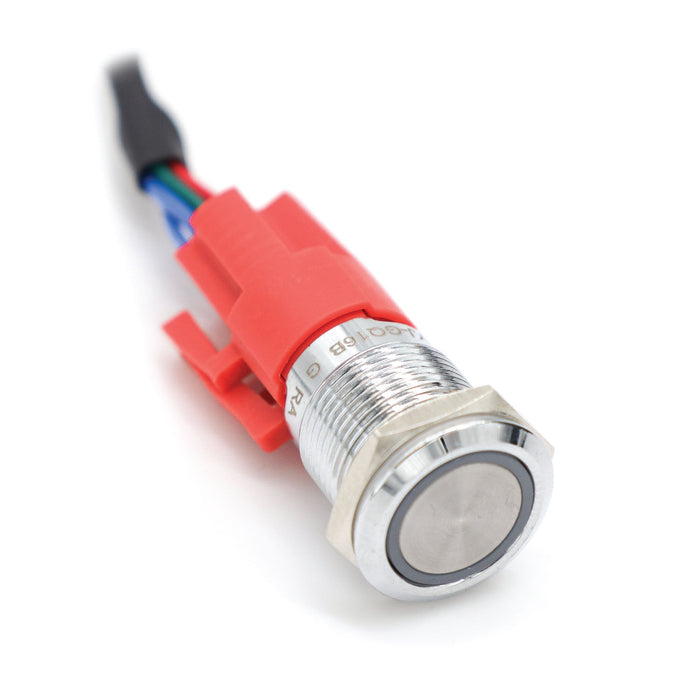

A-4220 Remote Button Battery Wake Up Kit

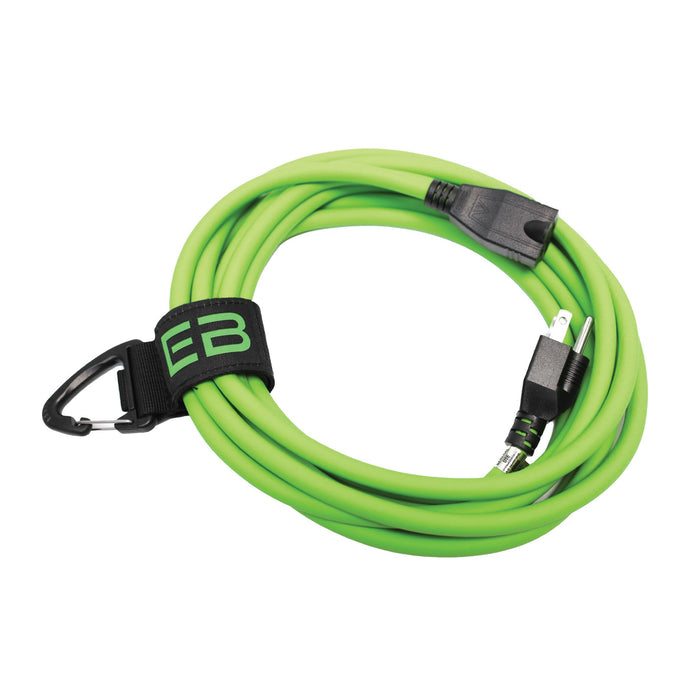

A-4401-240 EB Extension Cord
Extended Range
Explore further and go longer with increased capacity and greater discharge potential compared to lead-acid batteries. Utilize more capacity and charge faster with Grade A lithium.
Zero Maintenance
No water filling, no corrosive acids damaging your cart, and the confidence of safe long-term storage. Move to lithium and upgrade to worry-free and hassle-free operation!
Long Lifespan
More cycles, more performance-filled years, backed by a Limited Lifetime warranty. Our industry-best service team is here for you every mile along the way.
Safe and Reliable
The safest Lithium LiFePO4 chemistry, paired with advanced Battery Management technology, ensures safe operation during charging, use, and storage.
SPECIFICATIONS
| BATTERIES (GEN3) |
38.4V 105Ah |
51.2V 60Ah |
51.2V 105Ah
Thru-Hole |
51.2V 105Ah
Skinny |
51.2V 160Ah |
70.4V 105Ah |
| Energy Capacity |
4.0 kWh |
3.0 kWh |
5.3 kWh |
5.3 kWh |
8.1 kWh |
7.3 kWh |
| Nominal Voltage |
38.4V |
51.2V |
51.2V |
51.2V |
51.2V |
70.4V |
| Nominal Ah |
105Ah |
60Ah |
105Ah |
105Ah |
160Ah |
105Ah |
| Max Discharge 5 Seconds |
600A |
500A |
600A |
600A |
600A |
600A |
| Max Discharge 10 Sec |
550A |
450A |
550A |
550A |
550A |
550A |
| Max Cont. Discharge |
250A |
200A |
250A |
250A |
250A |
250A |
| Cell Count |
12 |
16 |
16 |
16 |
32 |
22 |
| Cell Type |
Prismatic |
Prismatic |
Prismatic |
Prismatic |
Prismatic |
Prismatic |
| Cell Configuration |
1P12S |
1P16S |
1P16S |
1P16S |
2P16S |
1P22S |
| Cell Chemistry |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
| Weight |
78 lbs (35.38Kg) |
78 lbs (35.38Kg) |
98 lbs (44.45Kg) |
113 lbs (51.25Kg) |
165 lbs (74.84Kg) |
146 lbs (66.22Kg) |
| Dimension LxWxH |
13.37" x 10.18" x 10.75" |
13.37" x 10.18" x 11.47" |
13.14" x 12.24" x 10.15" |
22" x 9.75" x 10.43" |
22" x 12.125" x 10.625" |
22" x 12.125" x 10.625" |
| Charging Temp Range |
32F+ |
32F+ |
32F+ |
32F+ |
32F+ |
32F+ |
| Discharge Temp Range |
-4F to 140F |
-4F to 140F |
-4F to 140F |
-4F to 140F |
-4F to 140F |
-4F to 140F |
| Shell Type |
Powder Coated Steel |
Powder Coated Steel |
Powder Coated Steel |
Powder Coated Steel |
Powder Coated Steel |
Powder Coated Steel |
| IP Rating |
IP67 |
IP67 |
IP67 |
IP67 |
IP67 |
IP67 |
COMMUNICATION
Eco Battery leads the industry by using advanced CAN communication to connect both chargers and the cart's components with the Battery Management System (BMS), ensuring safety during charging and use. This technology not only extends the lifespan of connected products but also enhances the longevity of high-performance usage. As a leader in the field, Eco Battery offers the most advanced and proprietary battery software available.
SAFETY
Not all lithium is created equal, whether in its chemistry or cell quality. Eco Battery uses the safest and most stable combination of LiFePO4 Grade A quality lithium cells. Pairing this stable chemical makeup with advanced monitoring, multiple temperature sensors, CAN-enabled chargers, and an advanced BMS system adds multiple layers of safety and longevity.
WARRANTY
Eco Battery lithium is backed by a Limited Lifetime warranty. With a U.S.-based headquarters and an industry-leading support team, we are here for a lifetime of service and support.
