AmenSolar 16KW Split Phase Hybrid Solar Inverter (N3H-X16US)

SKU N3H-X16US
Save $300.00 Save $300.00
Original price $3,999.00
Original price $3,999.00 - Original price $3,999.00
Original price $3,999.00
Current price $3,699.00
$3,699.00 - $3,699.00
Current price $3,699.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized AmenSolar Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

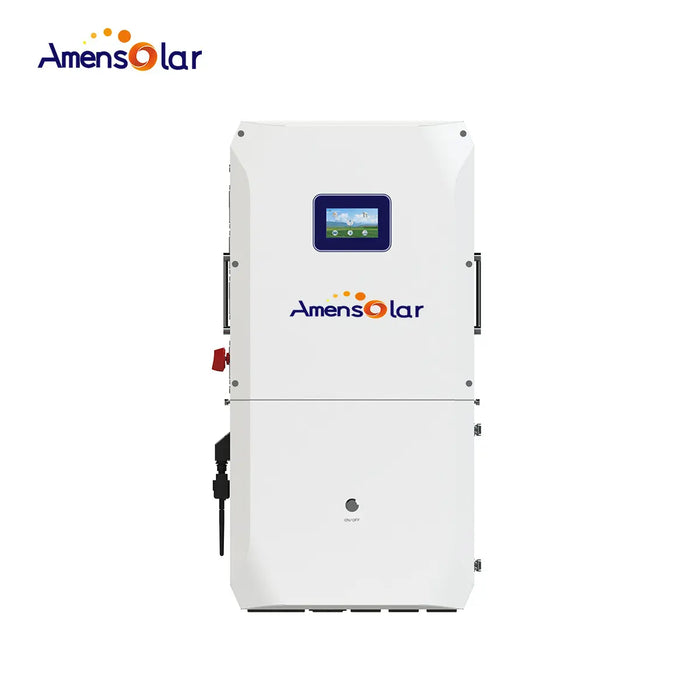

AmenSolar 16KW Split Phase Hybrid Solar Inverter (N3H-X16US)

With output voltage capabilities including (110~120)/(220~240V) split phase ,240V single phase the N3H-X16US inverter is equipped with a user-friendly interface for effortless monitoring and control. This empowers users to effectively manage their power systems, providing versatile and dependable power for families.

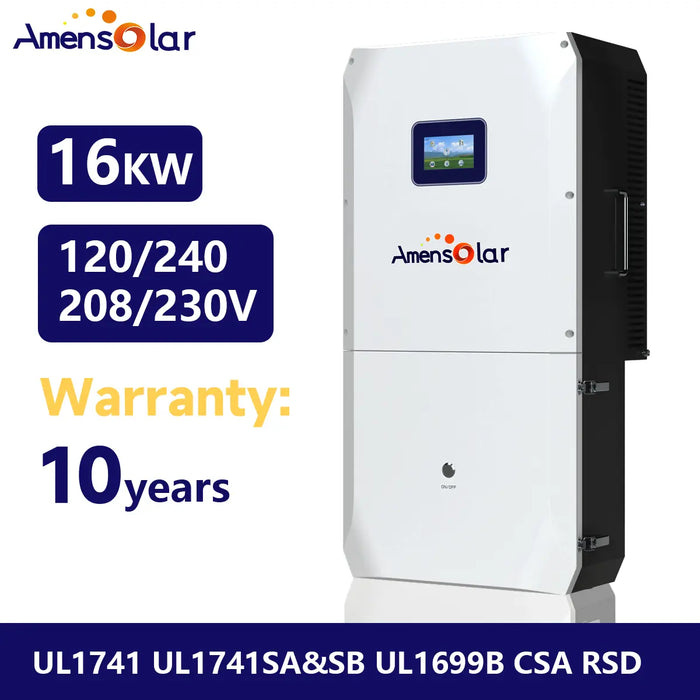

  • Certificate: UL1741 UL1699B CSA IEEE Hawaiia
  • Inverter power: 16KW
  • Maximum number of parallel inverters: 4
  • Communication: Can,Rs485
  • Support (110~120)/(220~240V) split phase ,240V single phase voltage.
  • Support OEM for customers with their own brand.
  • Support customer to do UL multiple listing.
  • Support parallel and generator function.
  • Support peak shifting function for customer to use extral electricity to earn money .
  • Max grid pass though current(A): 200
  • Mainly recommended models: N3H-X16US

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

solar inverter

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

SPECIFICATIONS:

Model

N3H-X16US

PV input
Max.DC input power (kW) 24
No. of MPPT trackers 4
MPPT voltage range (V) 120~430
MAX. DC input voltage (V) 500
MAX. input current per MPPT (A) 20/20/20/20
MAX. short current per MPPT (A) 25/25/25/25

Battery input

Nominal voltage (V) 48
MAX.charging/discharging current (A) 260/280
Battery voltage range (V) 40-58
Battery type Lithium /Lead-acid
Charging controller 3-Stage with equalization

AC output(on-grid)

Nominal output power output to grid (kVA) 16
MAX. apparent power output to grid (kVA) 16
Nominal AC voltage(L-N/L1-L2) (V) 110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase)
Nominal AC frequency(Hz) 50/60
Nominal AC current (A) 66.7
Max. AC current (A) 73.7
Max. grid passthrough current (A) 200
Output THDi <3%

AC output(back-up)

Nominal. apparent power (kVA) 13
Max. apparent power(no PV) (kVA) 13.2
Max. apparent power(wtih PV) (kVA) 13.2
Nominal output voltage(V) 120/240
Nominal output frequency (Hz) 60
Output power factor 0.8leading~0.8lagging
Output THDu <2%
Protection
Ground detection Yes
Arc fault protection Yes
Island protection Yes
Insulation resistor detection Yes
Residual current monitoring unit Yes
Output over current protection Yes
Back-up output short protection Yes
Output over voltage protection Yes
Output under voltage protection Yes

General data

Mppt efficency 99.9%
Europe efficiency(PV) 96.2%
Max. PV to grid efficiency(PV) 96.5%
Max. battery to load efficiency 94.6%
Max. PV to battery charing efficiency 95.8%
Max. grid to battery charing efficiency 94.5%
Operating temperature range (℃) -25~+60
Relative humidity 0-95%
Operating altitude 0~4,000m(Derating above 2,000m altitude)
Ingress protection IP65/NEMA 3R
Weight (kg) 53
Weight (with breaker) (kg) 56

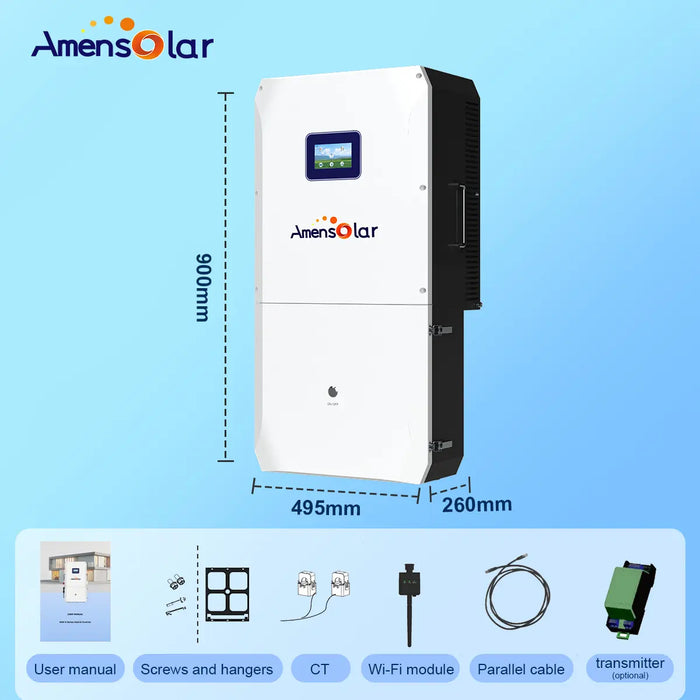

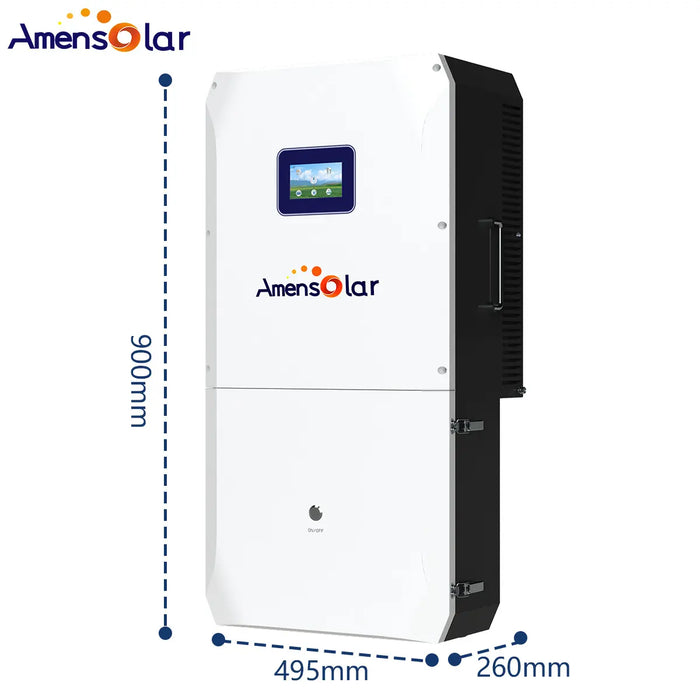

Dimensions W*H*D (mm) 495 x 900 x 260
Cooling Air Cooling
Noise emission (dB) 38
Display LCD
Communication with BMS/Meter/EMS RS485, CAN
Supported communication interface RS485, 4G (optional), Wi-Fi
Self-consumption <25W
Safety UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12),
EMC FCC part 15 classB
Grid connection standards IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65
