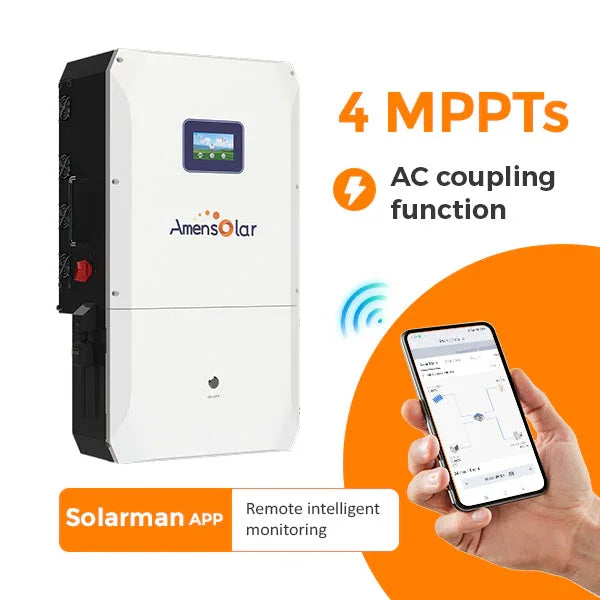

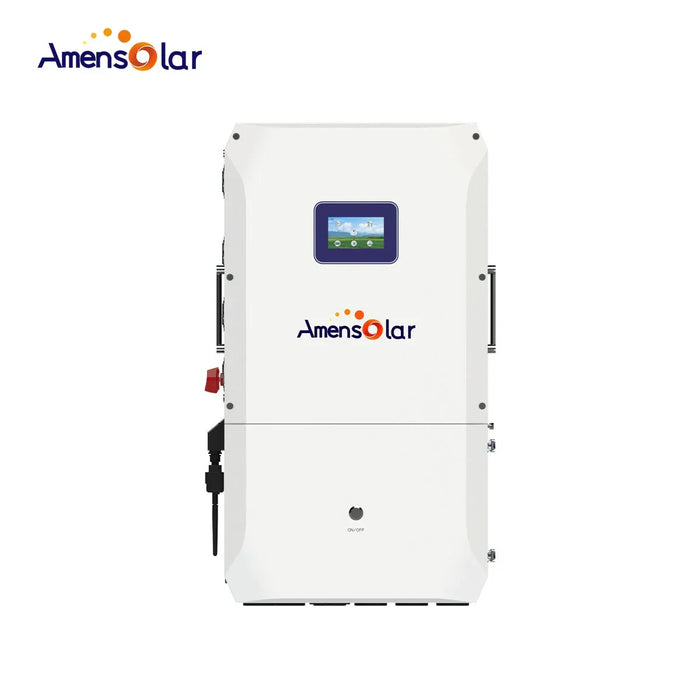

AmenSolar 10KW Split Phase Hybrid Solar Inverter (N3H-X10US)

With output voltage capabilities including 120V/240V (split phase), 208V (2/3 phase), and 230V (single phase), the N3H-X5-US inverter is equipped with a user-friendly interface for effortless monitoring and control. This empowers users to effectively manage their power systems, providing versatile and dependable power for families.

• Certificate: UL1741 UL1699B CSA IEEE Hawaii
• Inverter power: 10KW
• Maximum number of parallel inverters: 4
• Communication:Can,Rs485
• support split phase 110/220V ,208V and 230V voltage.
• support OEM for customers with their own brand.
• support customer to do UL multiple listing.
• support parallel and generator function.
• support peak shifting function for customer to use extral electricity to earn money .
• Max grid pass though current(A): 200
• Mainly recommended models: N3H-X10US
• Technical support: 24-hour professional technical online guidance service
• Shelf life: 10 years


SPECIFICATIONS:

Technical Data		N3H-X10US
PV Input Data
MAX.DC Input Power		15KW
No.of MPPT Trackers		4
MPPT Range		120 - 430V
MAX.DC Input Voltage		500V
MAX.Input Current		14A×4
Battery Input Data
Nominal Voltage(Vdc)		48V
MAX.Charging/Discharging Current		190A/210A
Battery Voltage Range		40-60V
Battery Type		Lithium and Lead Acid Battery
Charging Strategy for Li-Ion Battery		Self-adaption to BMS
AC Output Data(On-Grid)
Nominal Output Power Output to Grid		10KVA
MAX. Apparent Power Output to Grid		11KVA
Output Voltage Range		110-120V/220-240V split phase, 208V(2/3 phase), 230V(1 phase)
Output Frequency		50/60Hz (45 to 54.9Hz / 55 to 65Hz)
Nominal AC Current Output to Grid		41.7A
Max.AC Current Output to Grid		45.8A
Output THDI		< 2%
AC Output Data(Back-Up)
Nominal. Apparent Power Output		10KVA
MAX. Apparent Power Output		11KVA
Nominal Output Voltage L-N/L1-L2		120/240V
Nominal Output Frequency		60Hz
Output Power Factor		0.8leading …0.8lagging
Output THDU		< 2%
Efficiency
Europe Efficiency		>=97.8%
MAX. Battery to Load Efficiency		>=97.2%
Protection
Grounding Detection		YES
Arc Fault Protection		YES
Island Protection		YES
Battery Reverse Polarity		YES
Insulation Resistor Detection		YES
Residual Current Monitoring Unit		YES
Output Over Current Protection		YES
Back-up Output Short Protection		YES
Terminal Temperature Detection		YES
Output Over Voltage Protection		YES
Output Under Voltage Protection		YES
General Data
Output Conduit		25.4mm
PV Input Conduit		25.4mm
BAT Input Conduit		34.5mm
Operating Temperature Range		-25 ~ +60°C
Relative Humidity		0-95%
Operating Altitude		0~4000m
Ingress Protection		IP65/NEMA 3R

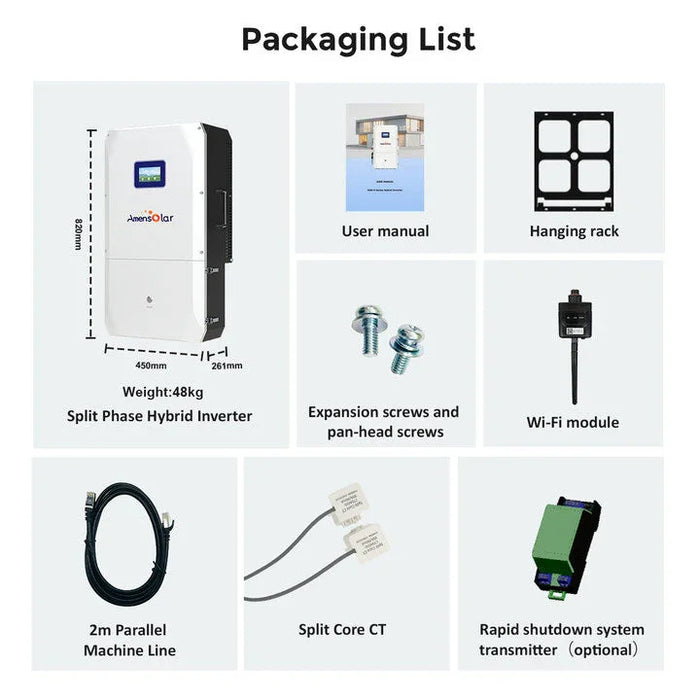

Weight		48kg
Size (Width*Height*Depth)		450mm x 820mm x 261mm
Cooling		Air Cooling
Noise Emission		<38dB
Display		LCD
Communication With BMS/Meter/EMS		CAN，RS485
Supported Communication Interface		RS485, WLAN, 4G (optional)
Self-consumption at Night		< 25W
Safety		UL1741SA all options , UL1699B, CSA 22.2
EMC		FCC Part 15 ClassB
Grid Connection Standards		IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III
