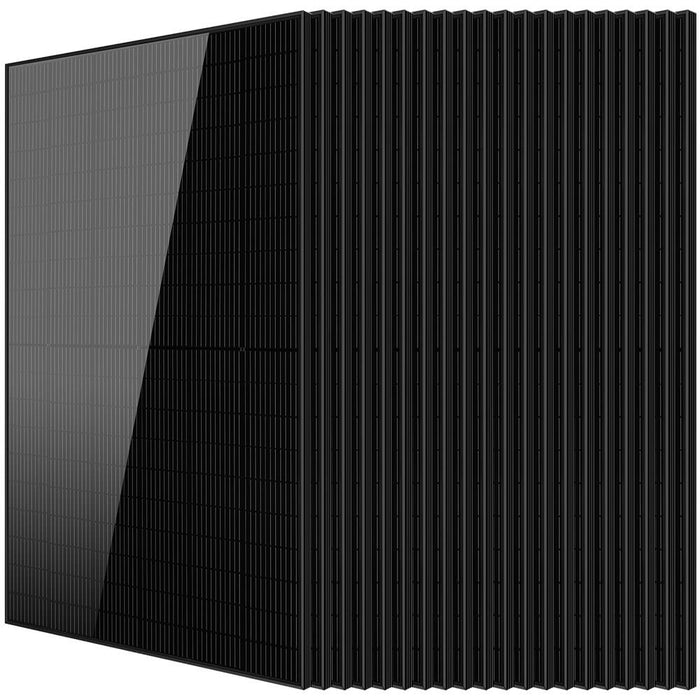

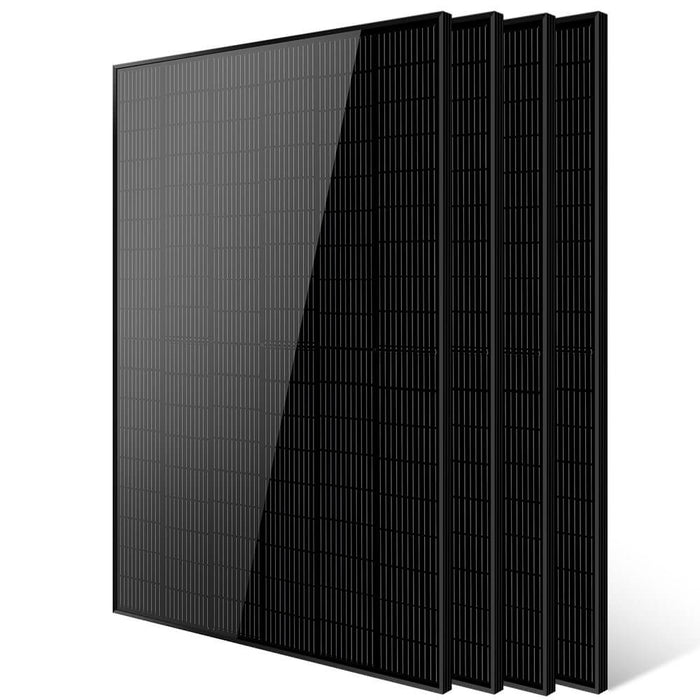

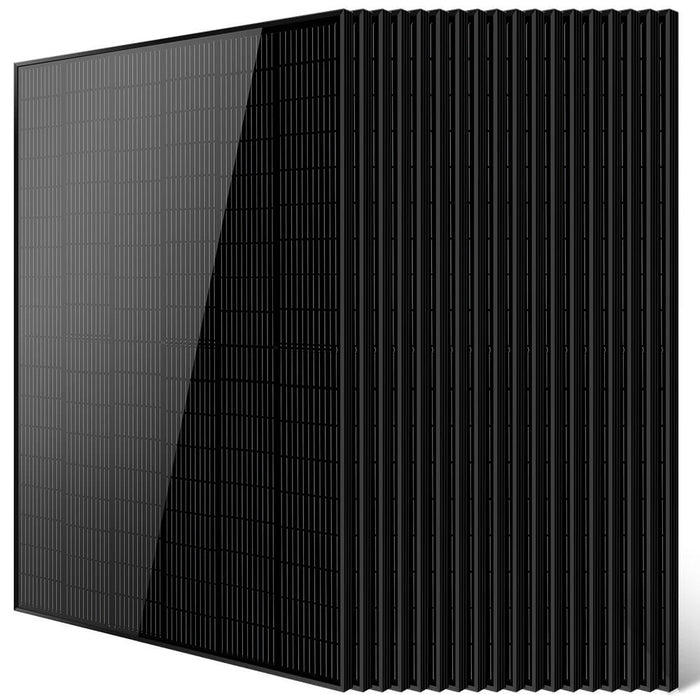

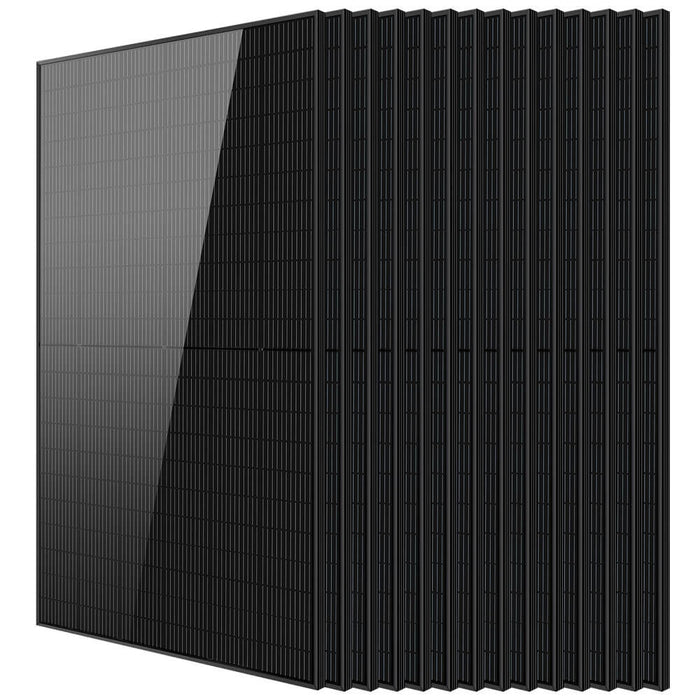

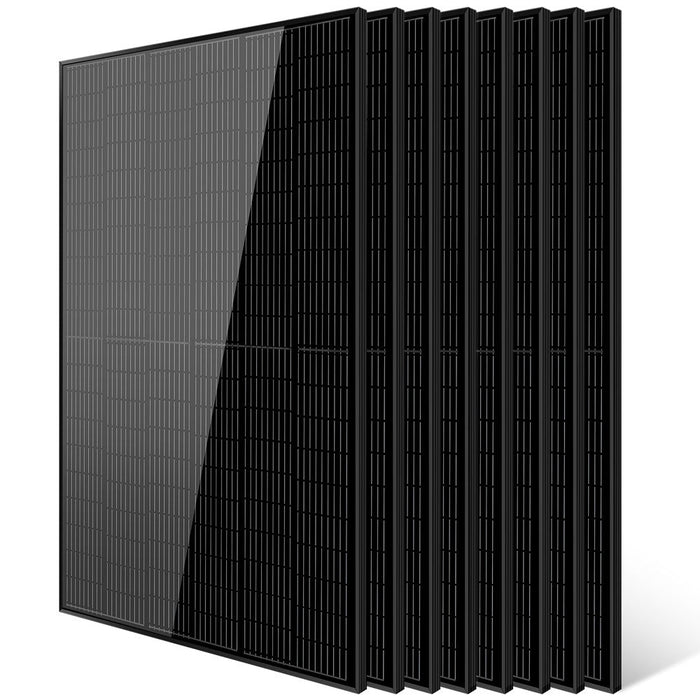

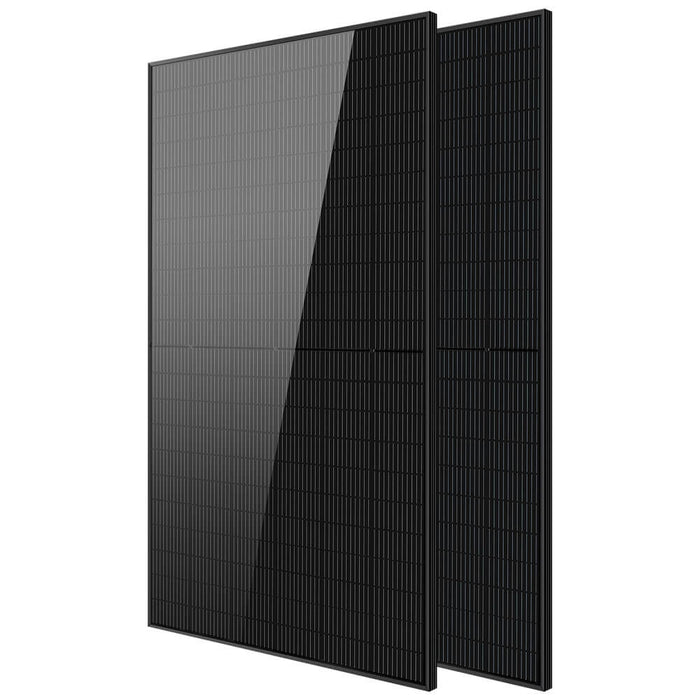

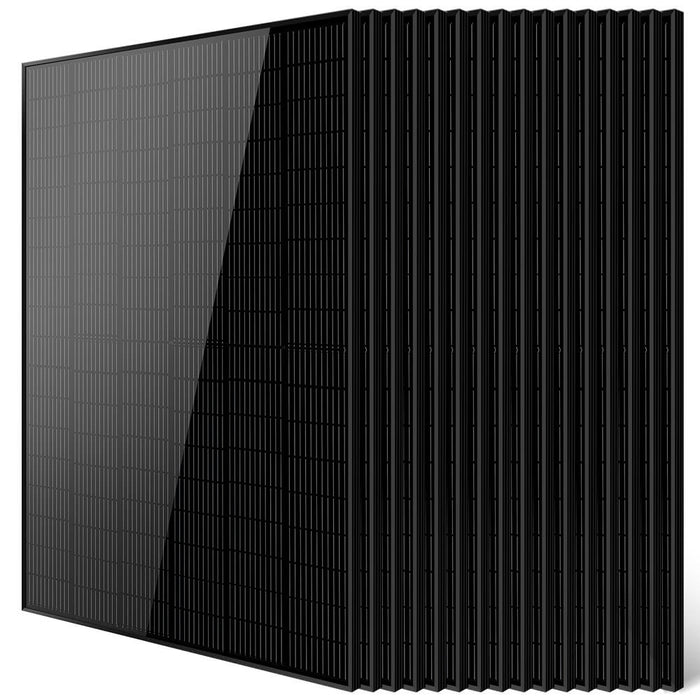

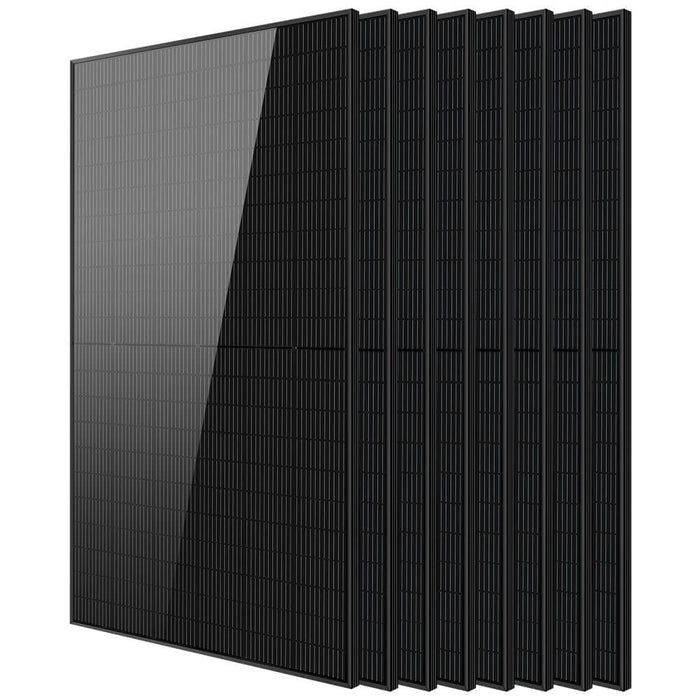

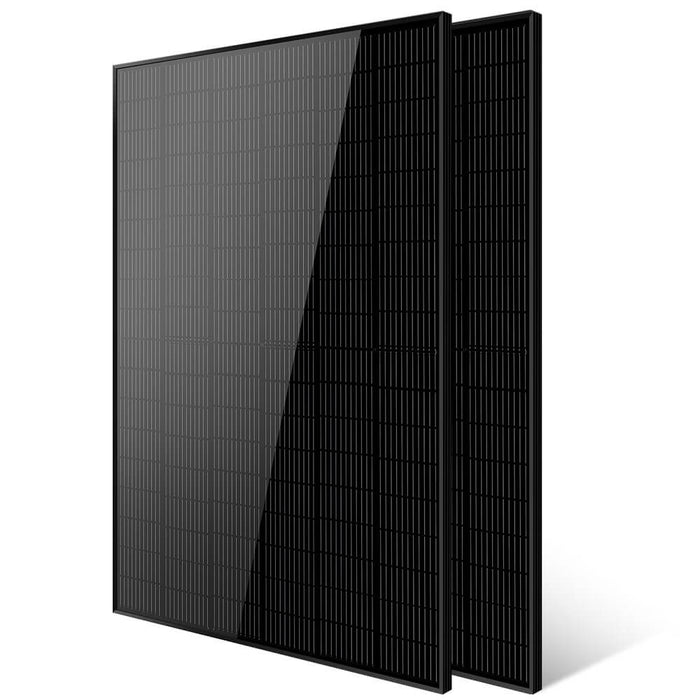

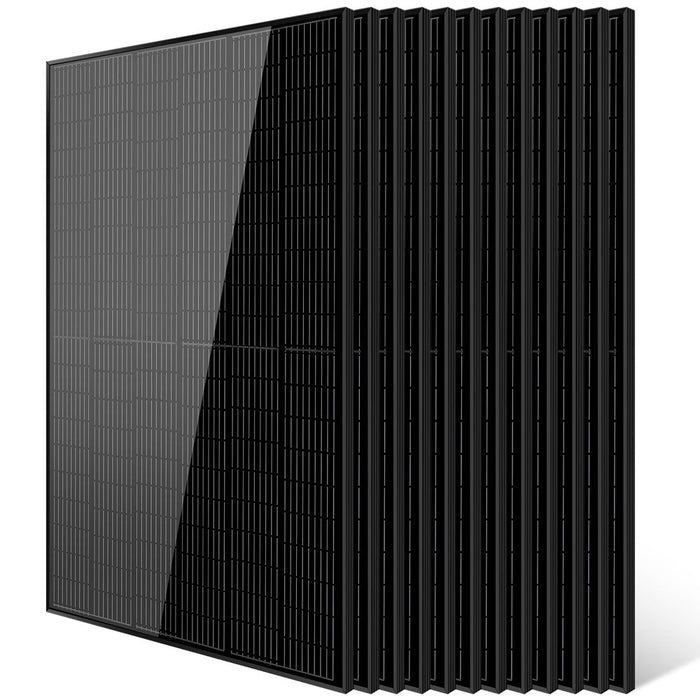

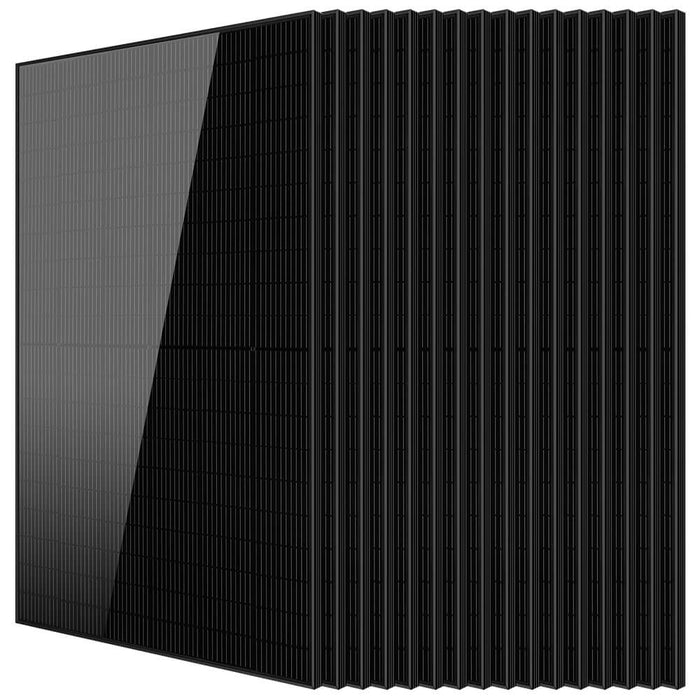

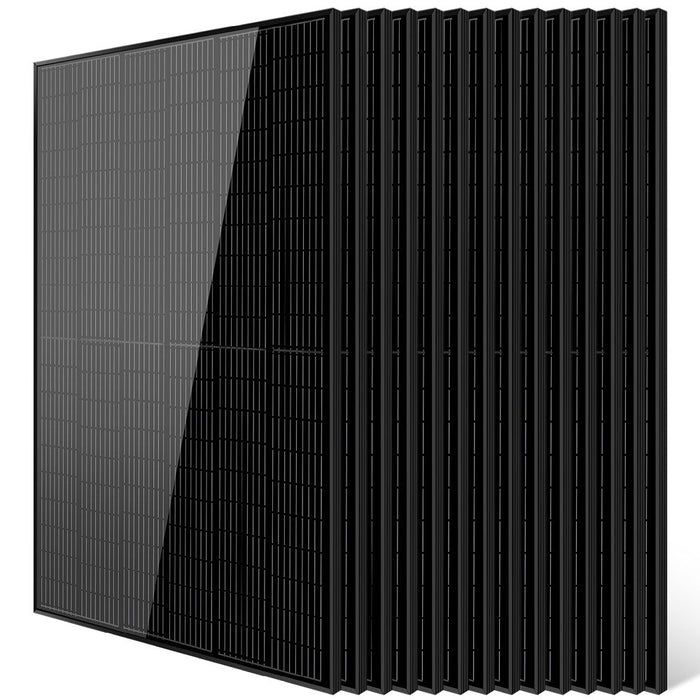

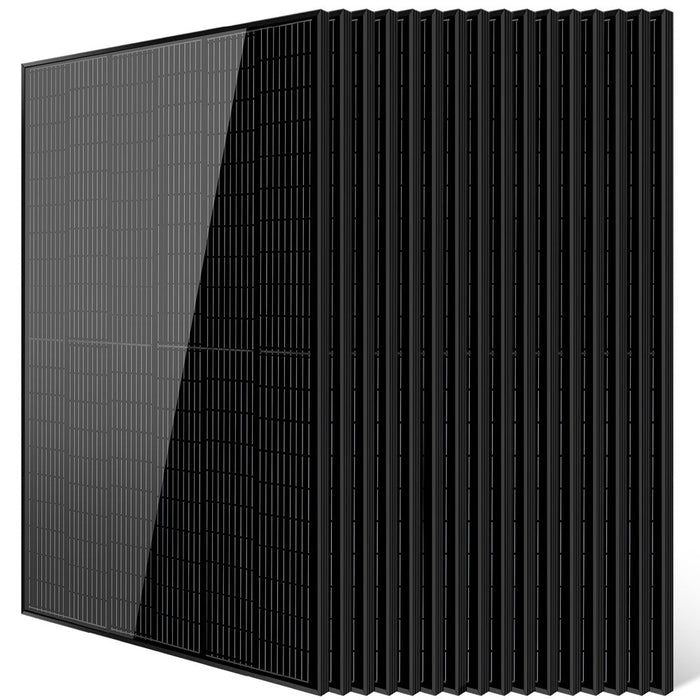

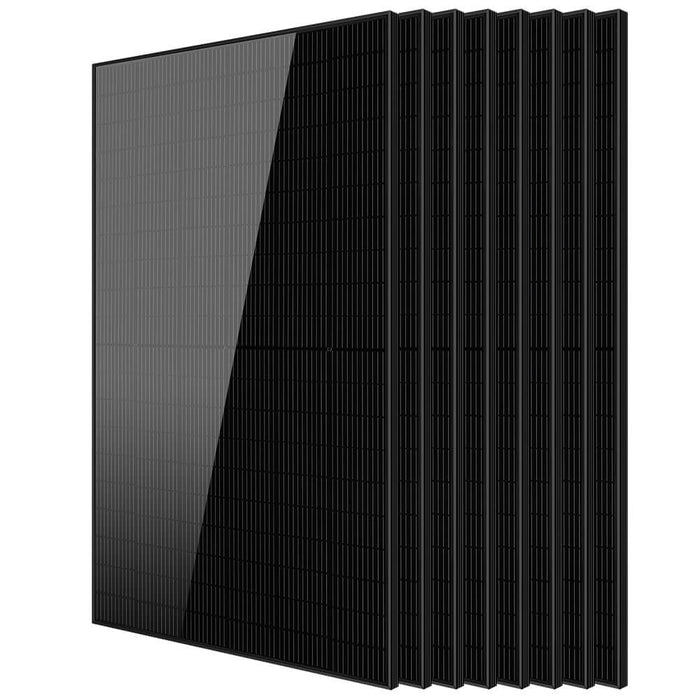

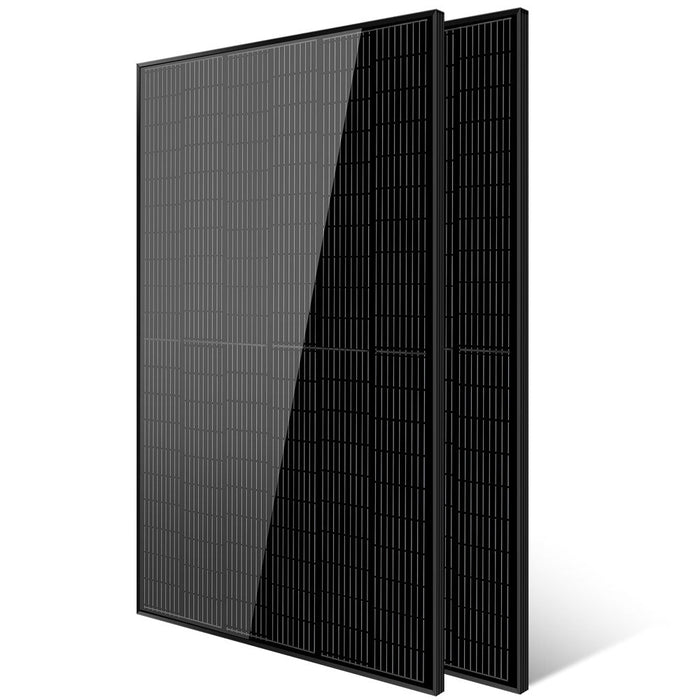

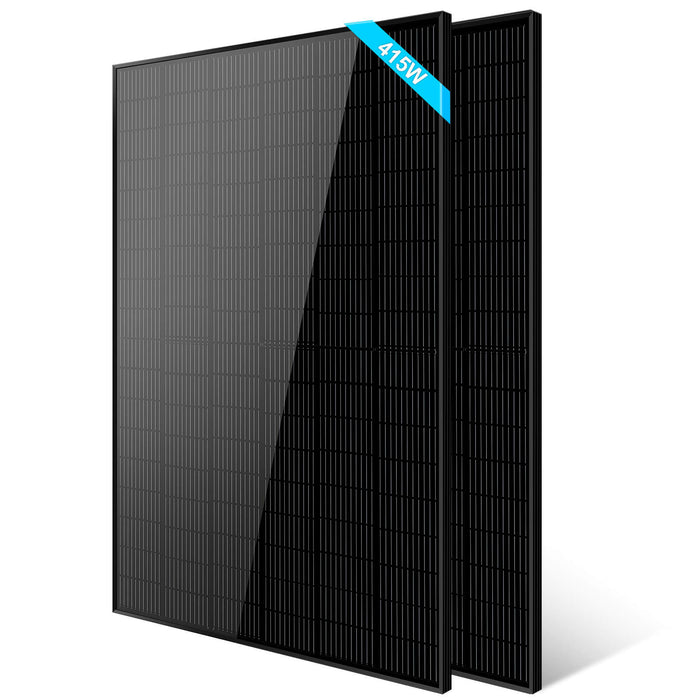

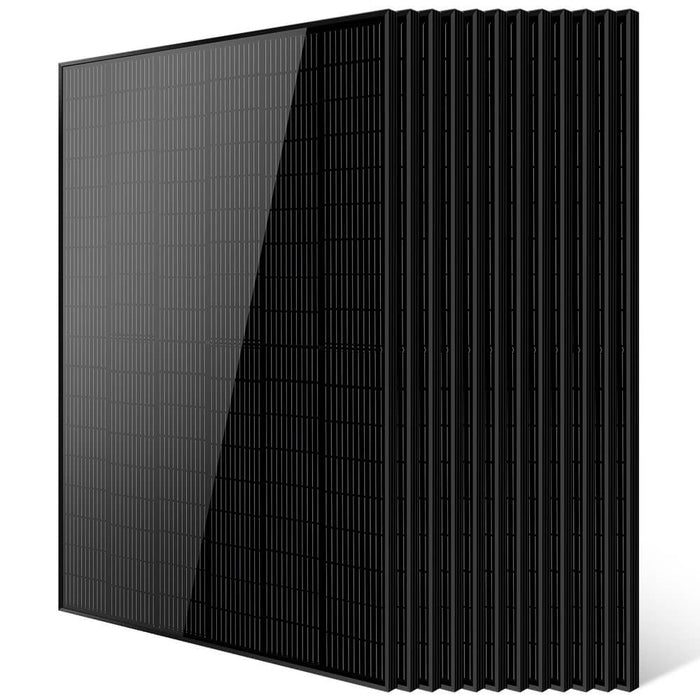

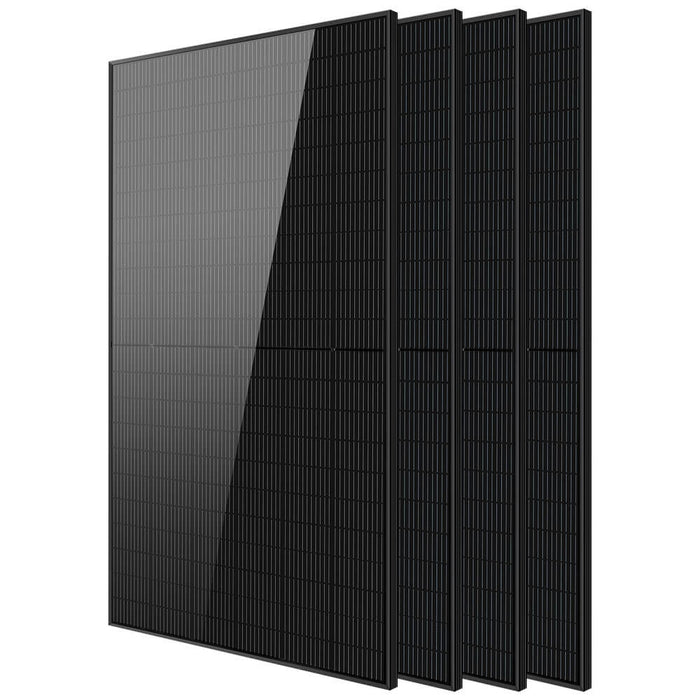

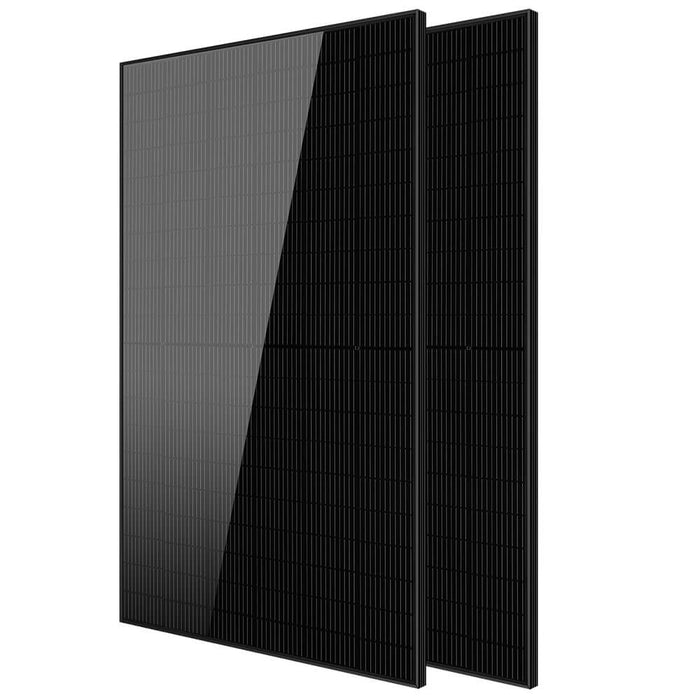

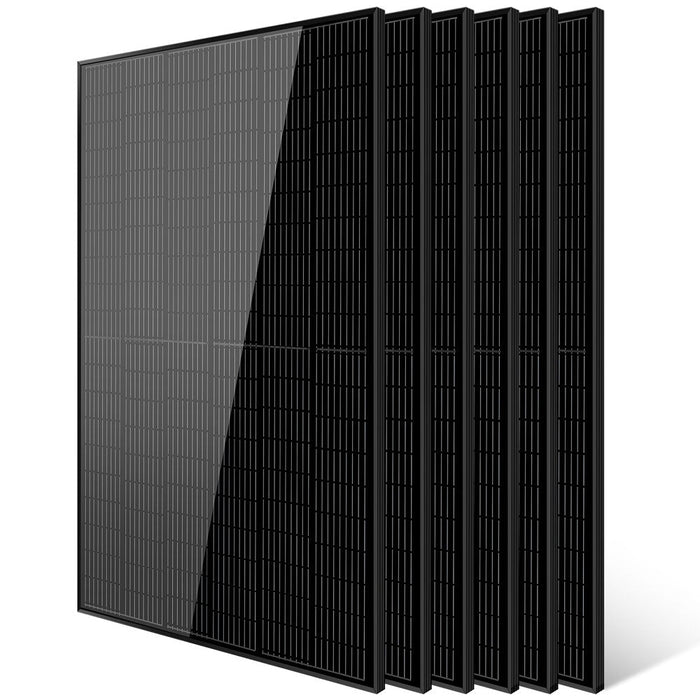

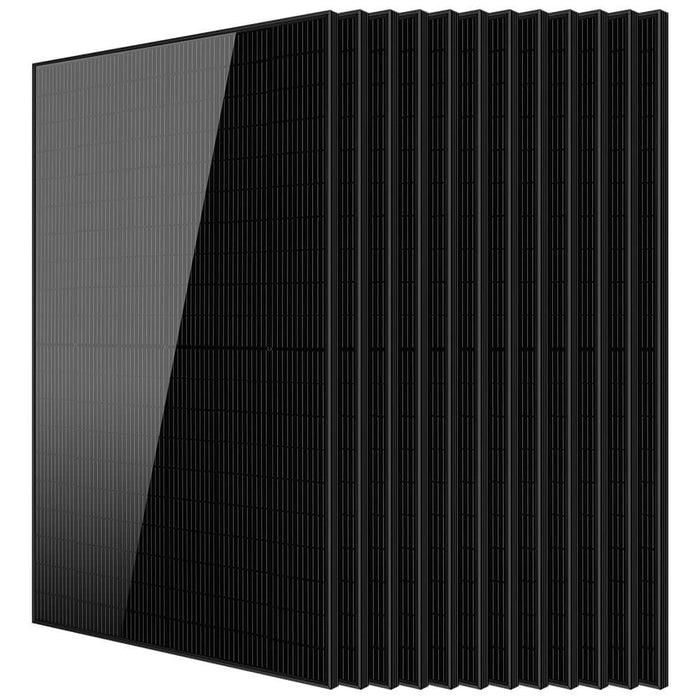

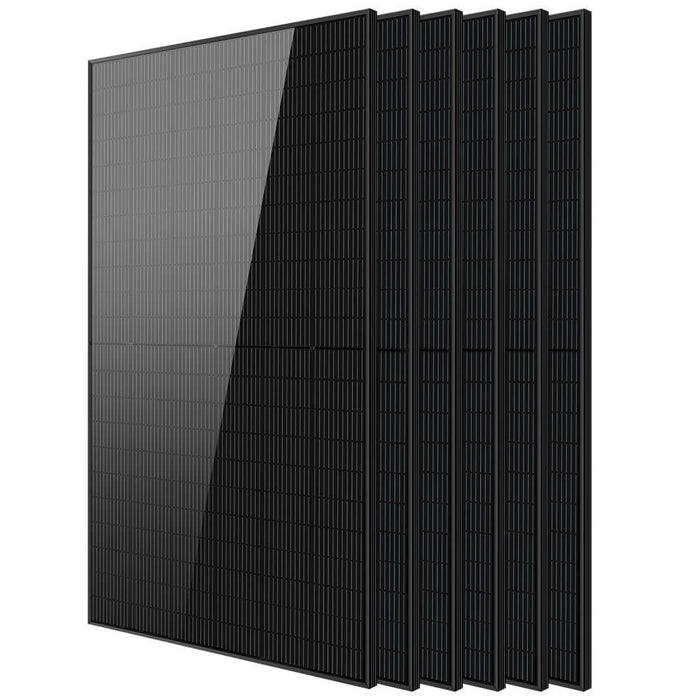

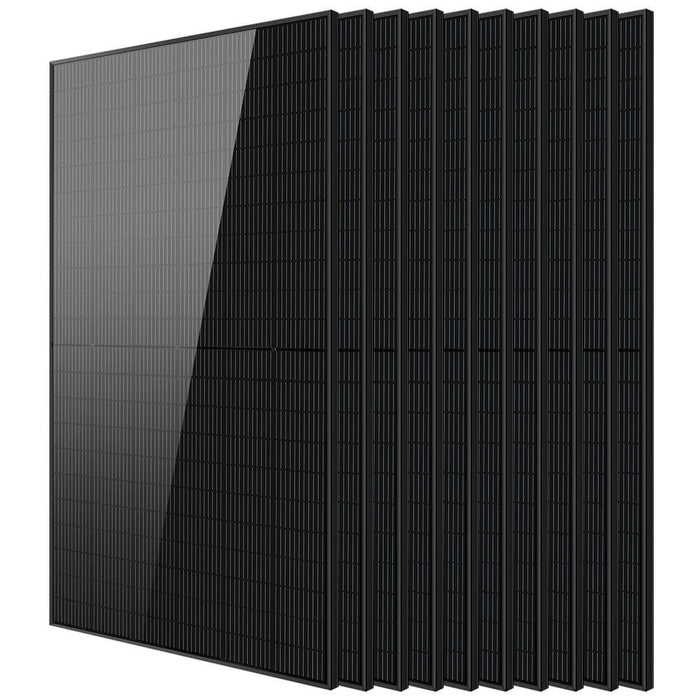

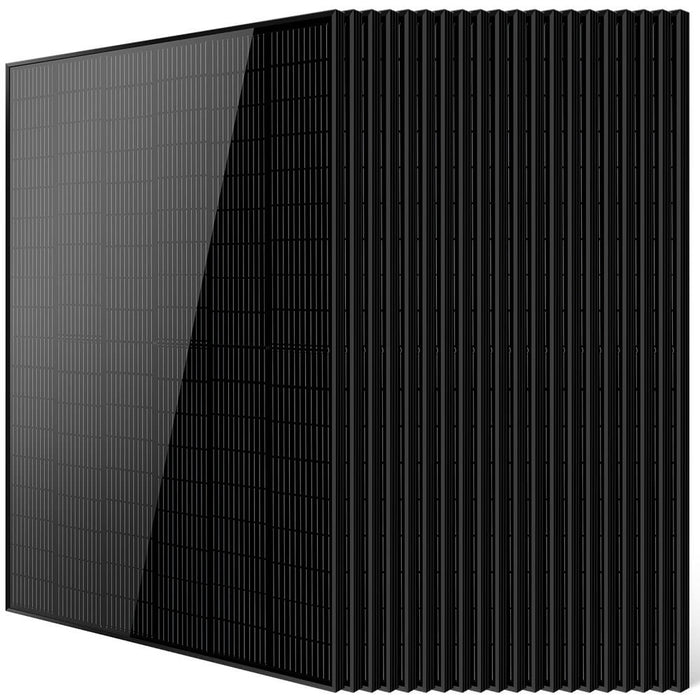

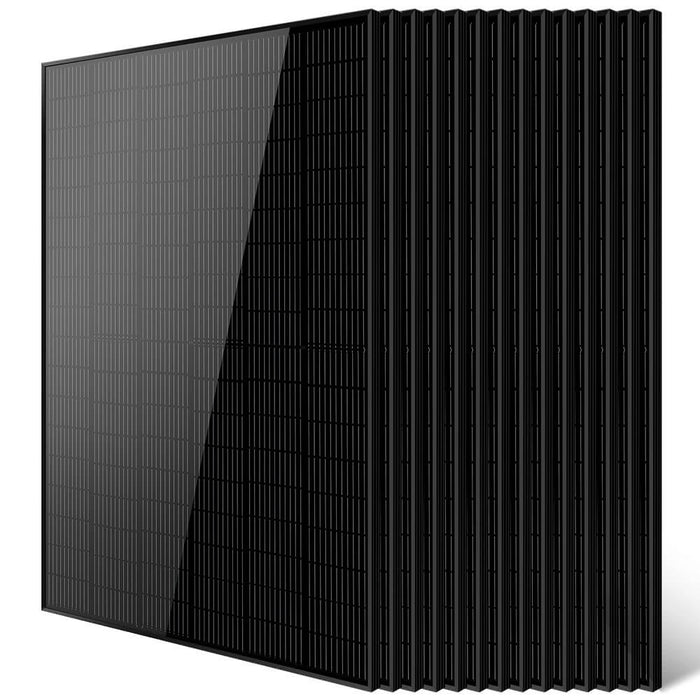

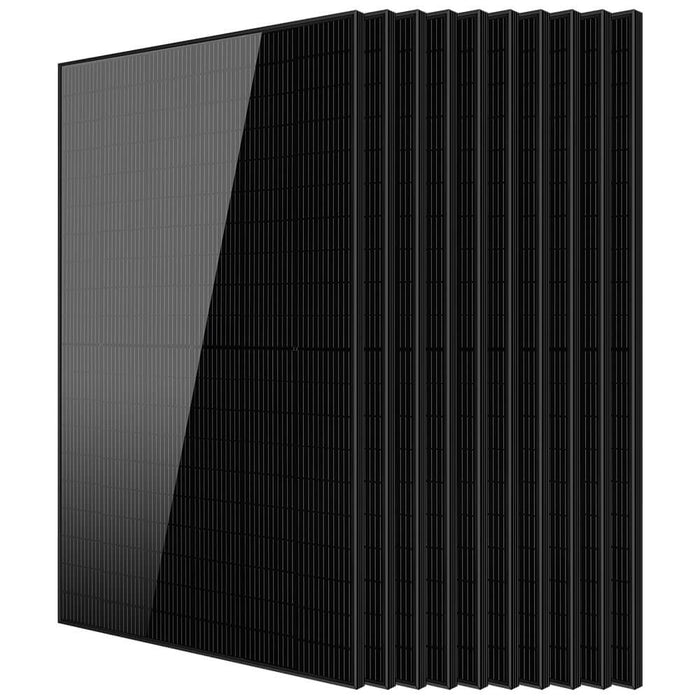

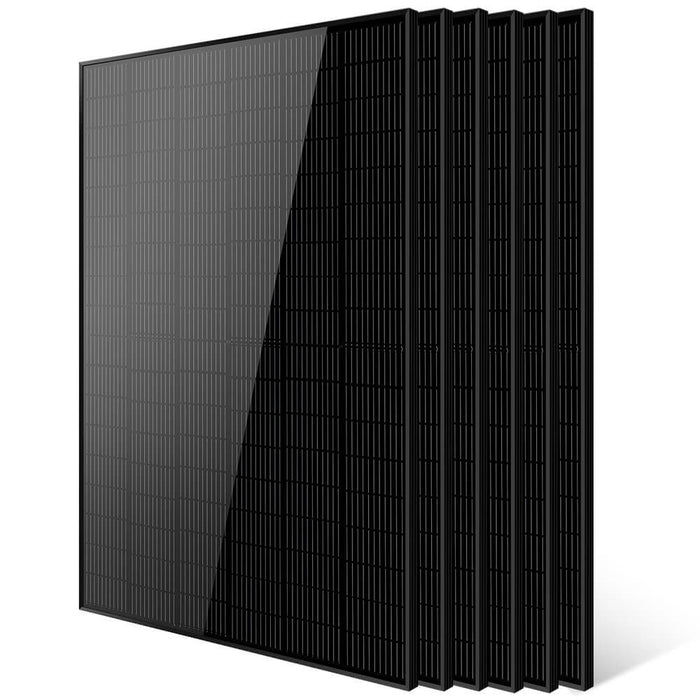

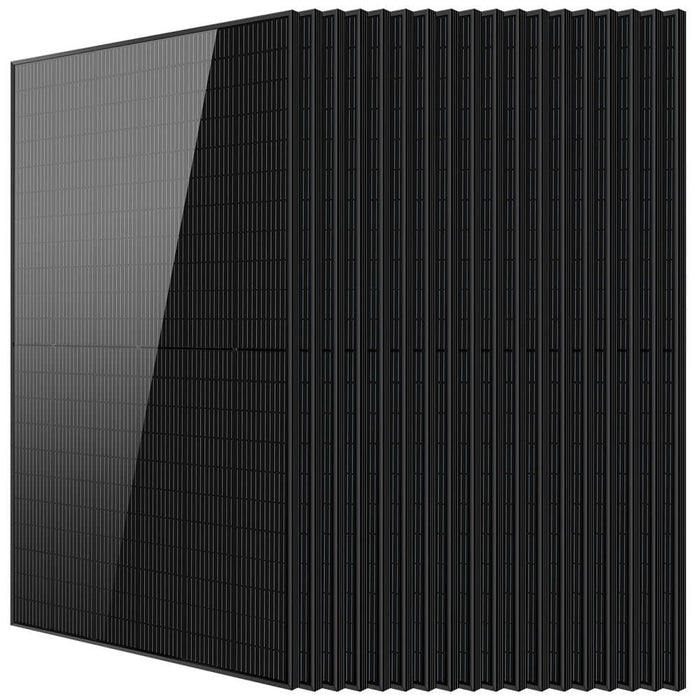

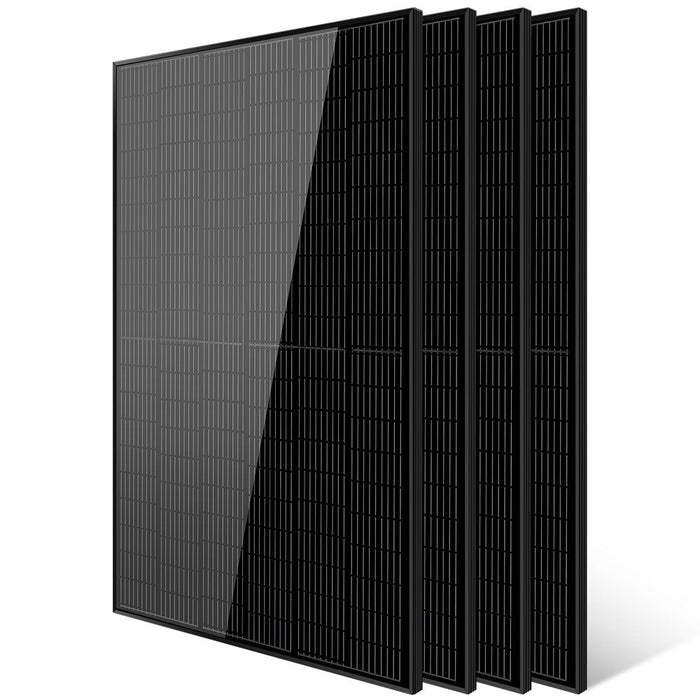

Sungold Power 370W/ 415W/ 500W Mono Black PERC Solar Panel UL 61730 CEC Listed

• High Efficiency Module: This module comes with Mono PERC Half-Cut Technology and has a module efficiency over 20%. SunGold Power 370W/ 415W/ 500W panels provide more output per surface area than most traditional panels.
•  High Tolerance: 370W/ 415W/ 500W solar panels are made with half-cell technology, it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
• Widely Use : 370W/ 415W/ 500W solar panel is ideal for off-grid, on grid or hybrid solar system, can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.

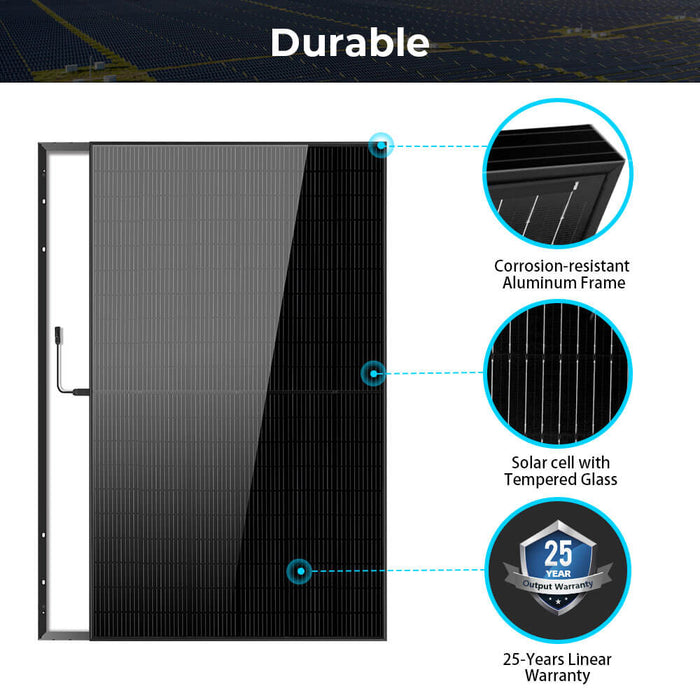

• Warranty: The black solar panels come with 12 years workmanship warranty and 25-year 80% output warranty, TUV certificated, UL61730 ,CEC Listed.

FEATURES

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storingenergy with battery, reducing power bills, or powering complete off-grid house.

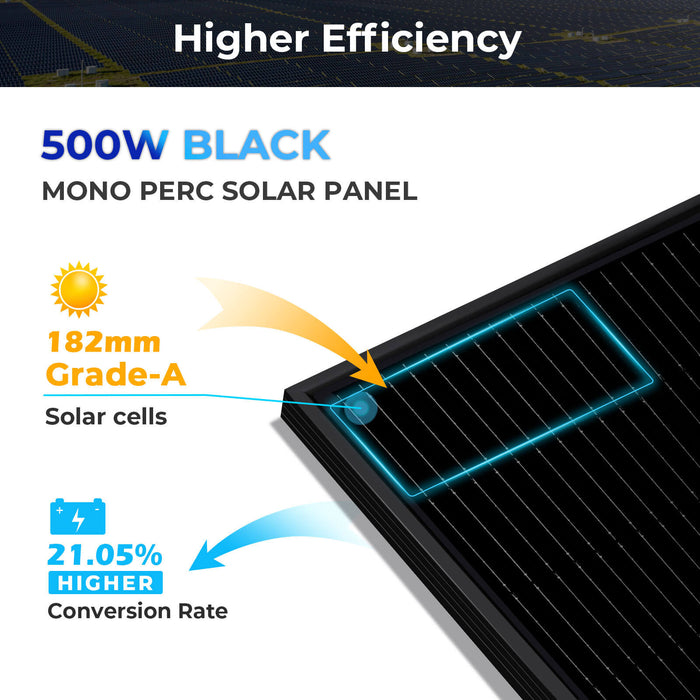

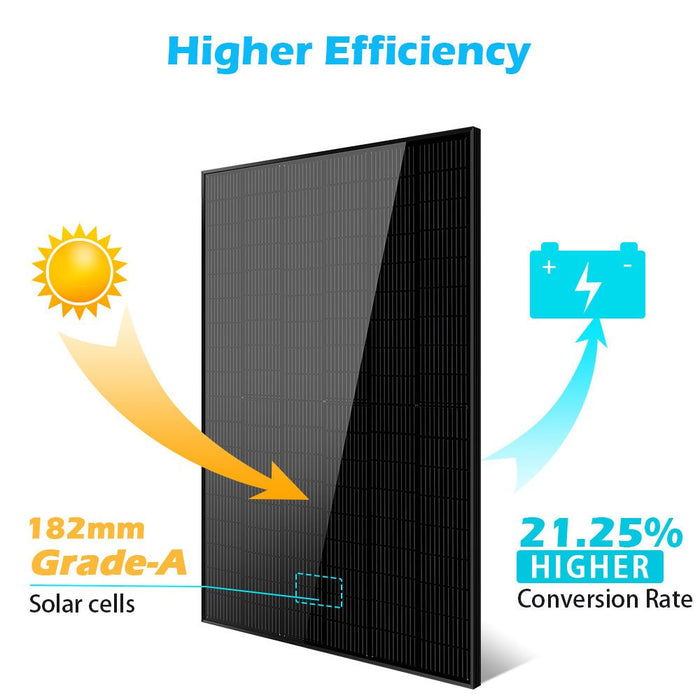

 High efficiency

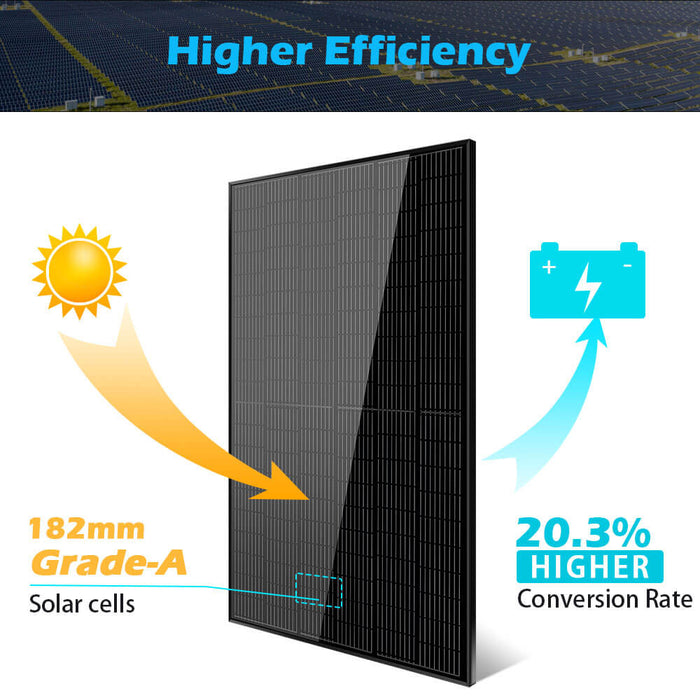

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

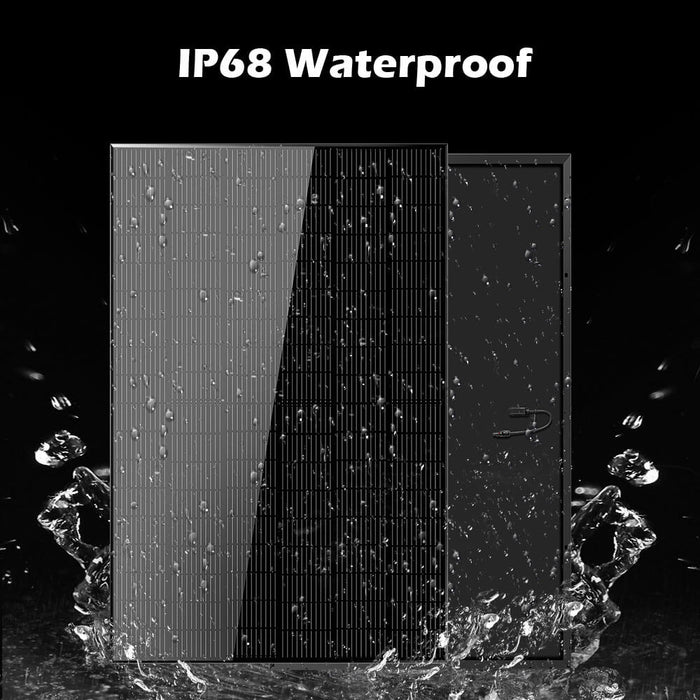

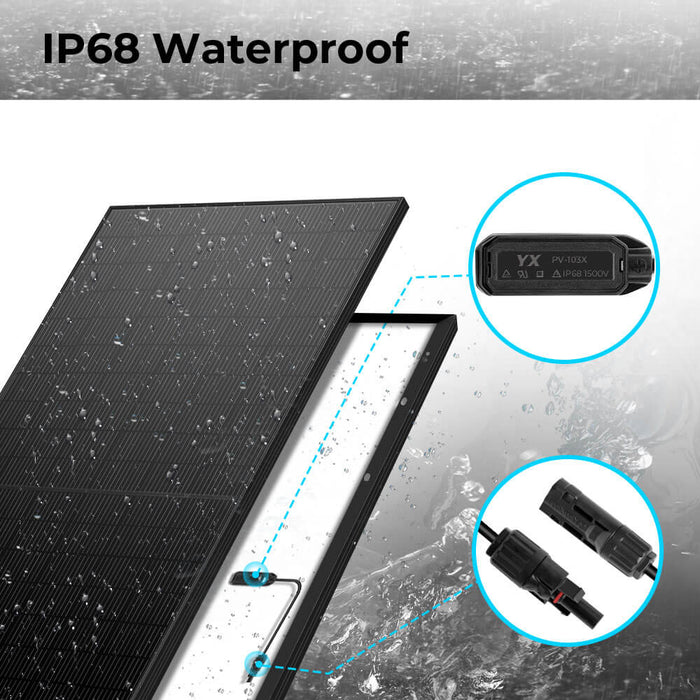

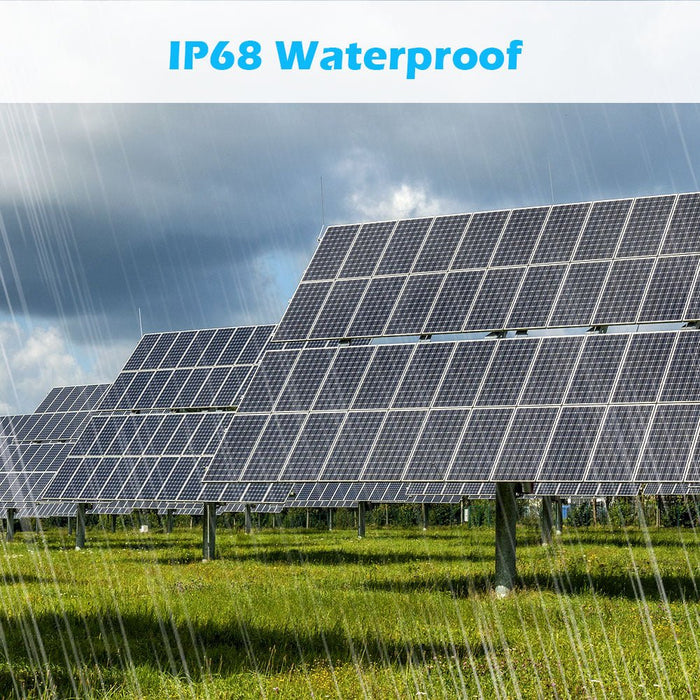

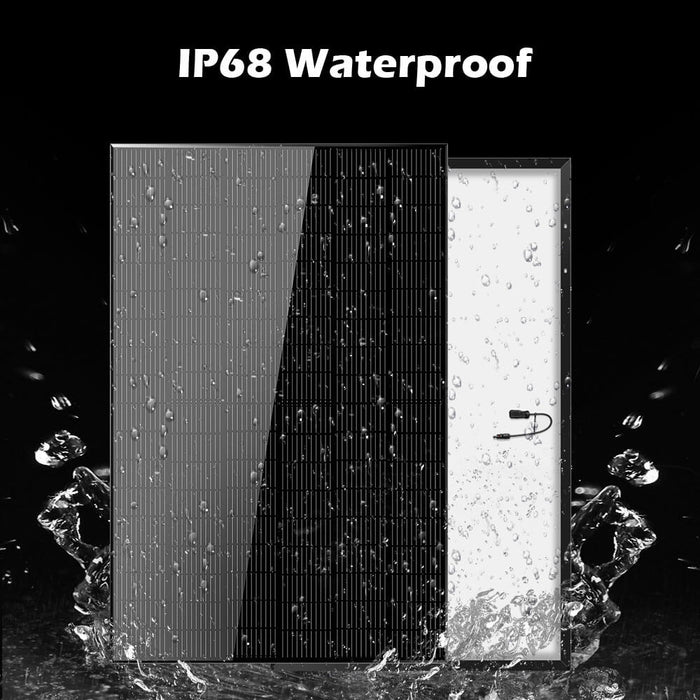

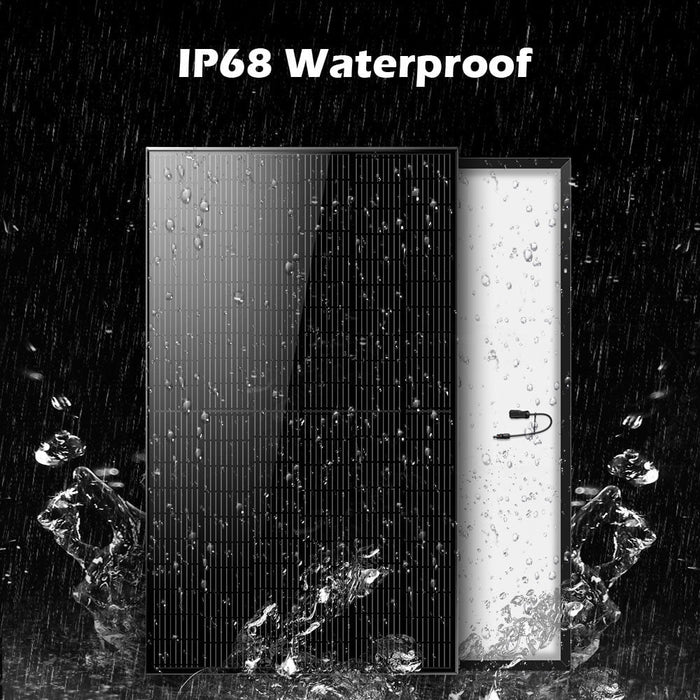

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

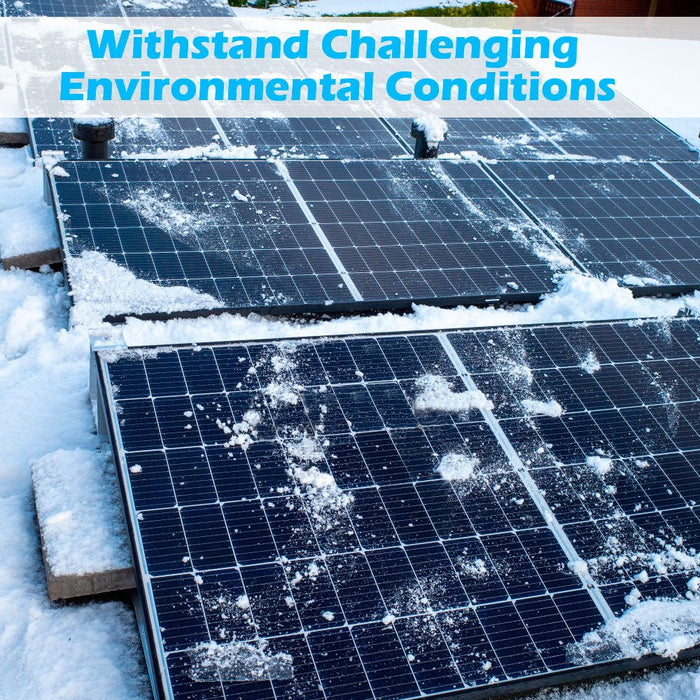

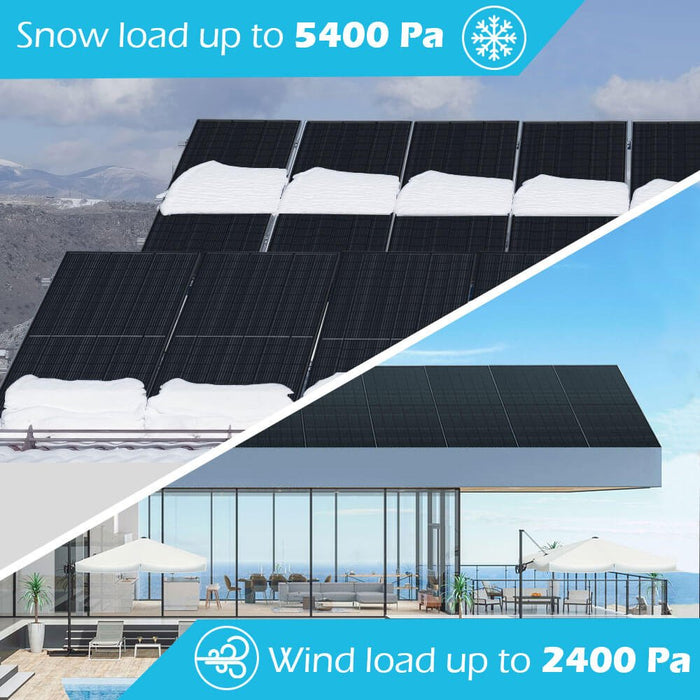

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

Home Solar System

With balanced power, improved stability, and economical electricity costs.

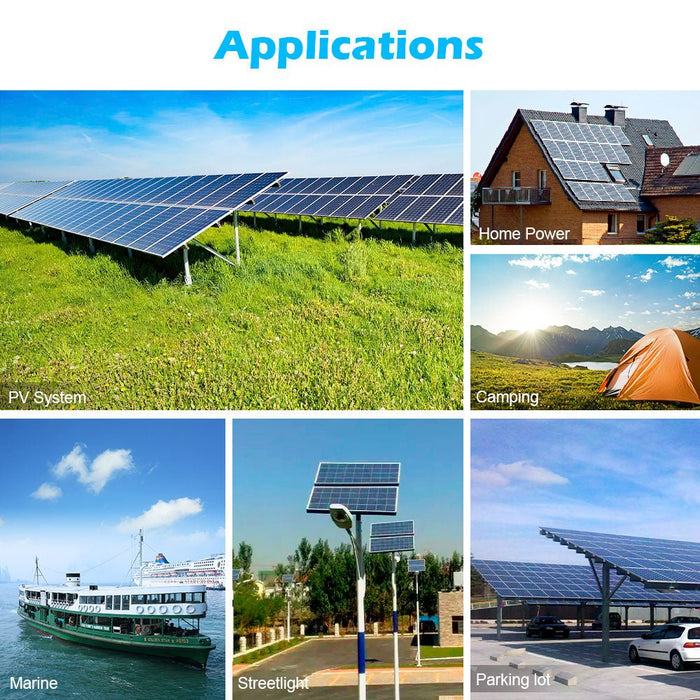

Wide Application

With balanced power, improved stability, and economical electricity costs.

SPECIFICATIONS

Model Type	SG415WM	SG370WM	SG500WM
Peak Power (Pmax)	415W	370W	500W
Production tolerance	±3%	±3%	±3%
Maximum Power Current (Imp)	13.34 A	11.15 A	13.30A
Maximum Power Voltage (Vmp)	31.11V	33.2V	37.60V
Short Circuit Current (Isc)	14.09A	11.81A	14.09A
Open Circuit Voltage (Voc)	38.32V	40.17V	44.36V
Maximum System Voltage	1500V	1500V	1500V
Wind Resistance	2400Pa	2400Pa	2400Pa
Output Cables	12 AWG (1ft per cable)	12 AWG (1ft per cable)	47.24 inch (1200mm)
Number of Cells	108(6*18)	120(6*20)	132(6*22)
Cell Type	Mono 182*91mm	Mono182mm	PERC Mono182*91mm
Certifications	UL 61730 CE TUV CEC Listed	UL 61730 CE TUV CEC Listed	UL 61730 CE TUV CEC Listed
Product Weight	45.8lbs	41.8lbs	56.2lbs

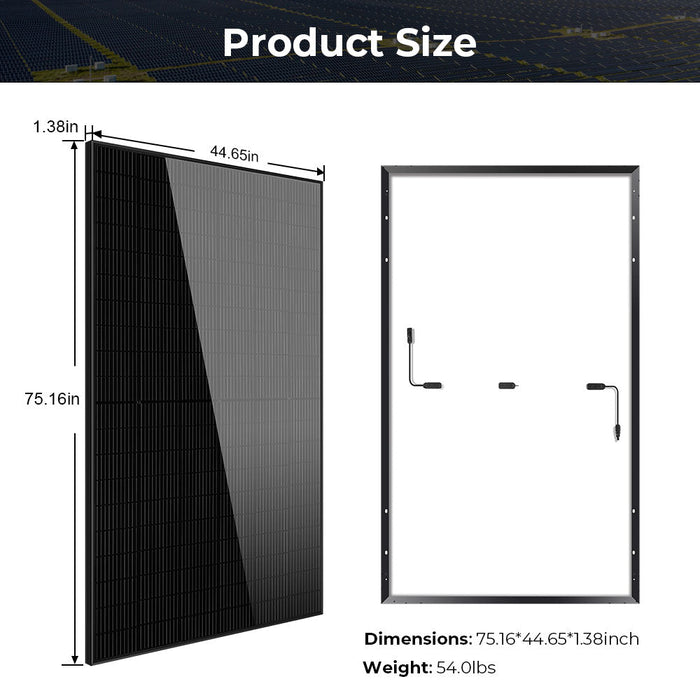

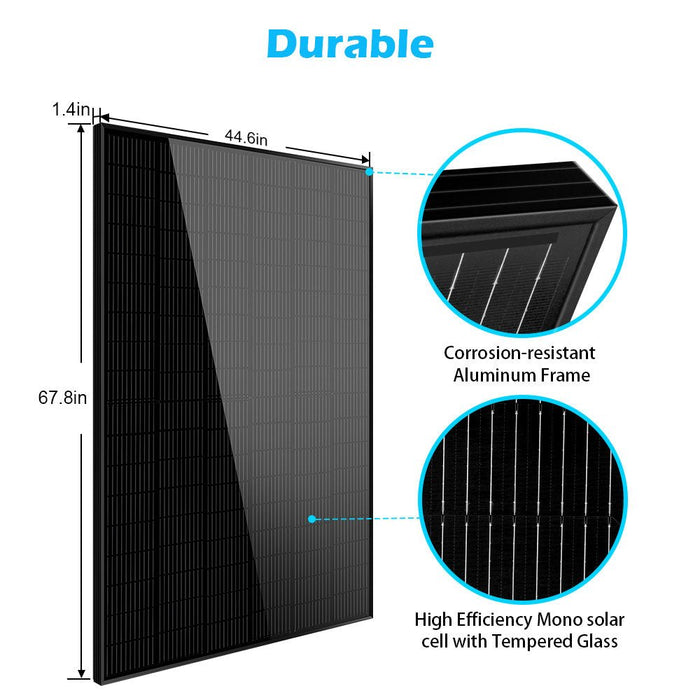

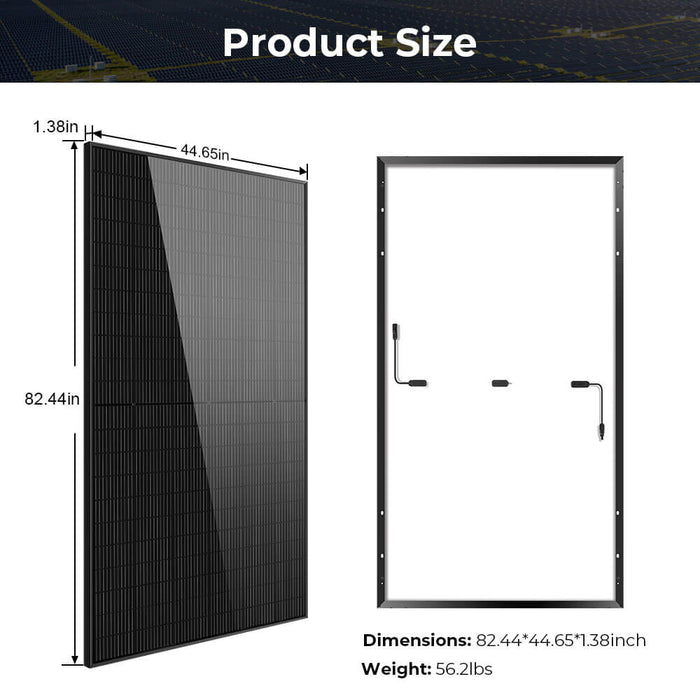

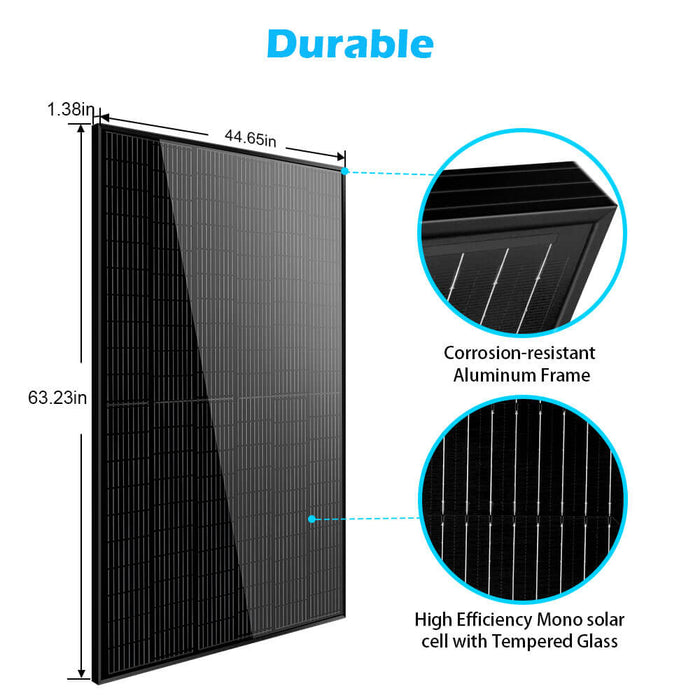

Product Dimension	67.8*44.6*1.4inch	63.23*44.65*1.38inch	82.44*44.65*1.38inch
Package Weight	100.5lbs（2PCS）	93.5lbs（2PCS）	124.6lbs（2PCS）
Warranty	12 years Material and workmanship warranty and 25 years 80% output Performance warranty	12 years Material and workmanship warranty and 25 years 80% output Performance warranty	12 years Material and workmanship warranty and 25 years 80% output Performance warranty
Operating Temperature Range	-40℉ to 185℉(-40℃~+85℃)	-40℉ to 185℉(-40℃~+85℃)	-40℉ to 185℉(-40℃~+85℃)
Maximum Permissible Module Temperature (T28 max):	185℉(85°C)	185℉(85°C)	185℉(85°C)
Module Fire Performance	Type 4 according to ANSI/UL 61730	Type 4 according to ANSI/UL 61730	Type 4 according to ANSI/UL 61730
Safety Class	Class II	Class II	Class II

RESOURCES

370W Mono Black Solar Panel User Manual

415W Mono Black Solar Panel User Manual

500W Mono Black Solar Panel User Manual

370W/ 415W/ 500W Mono Black Solar Panel UL61730 Certification
