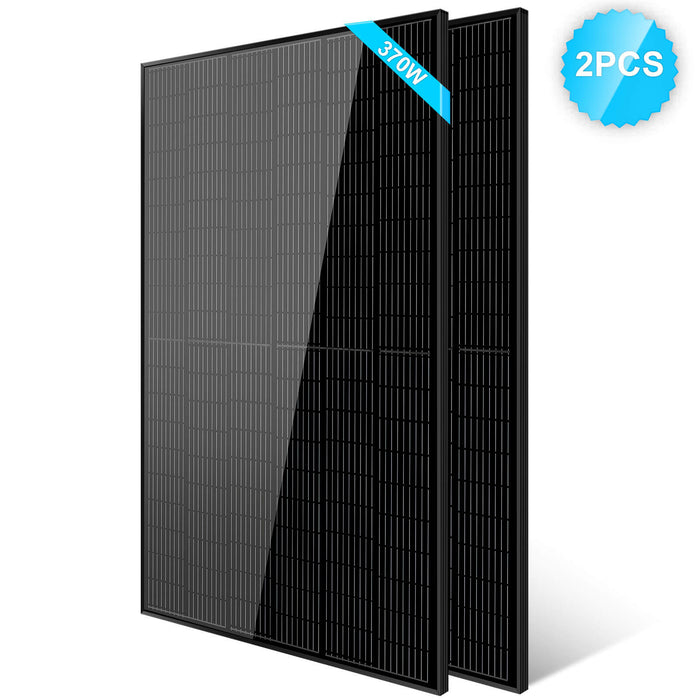

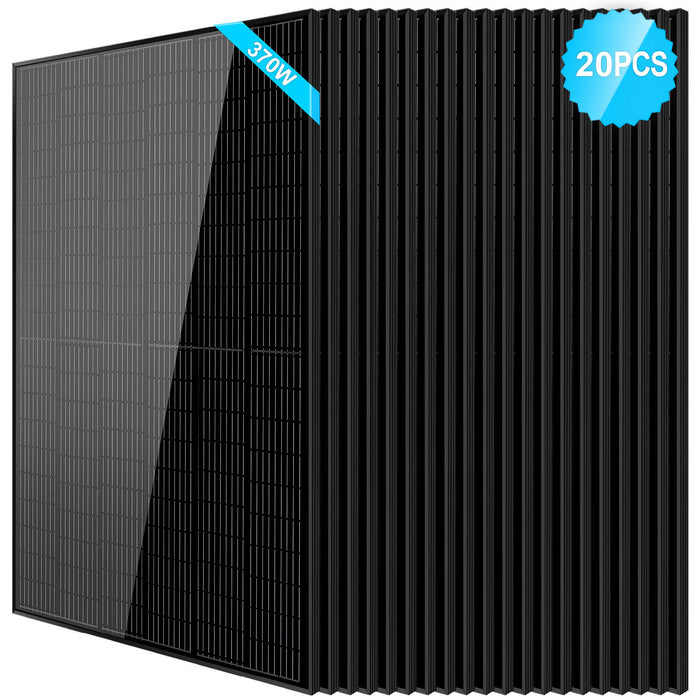

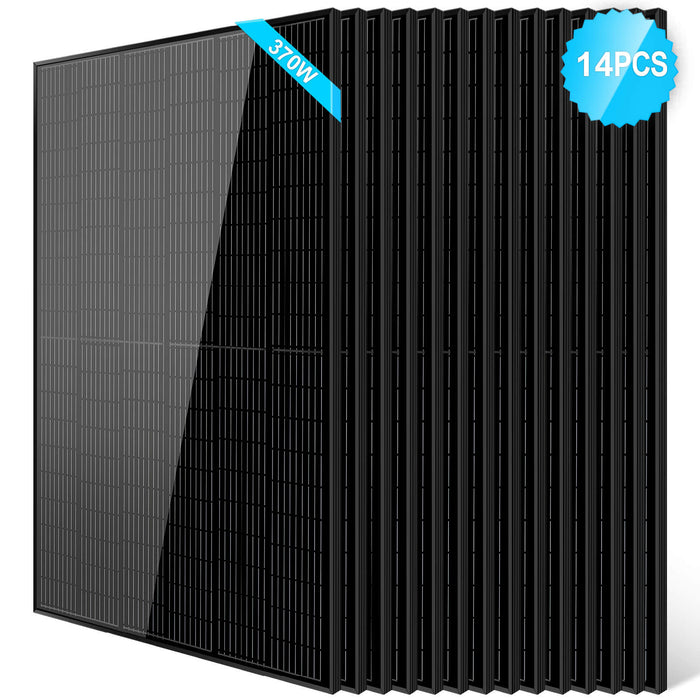

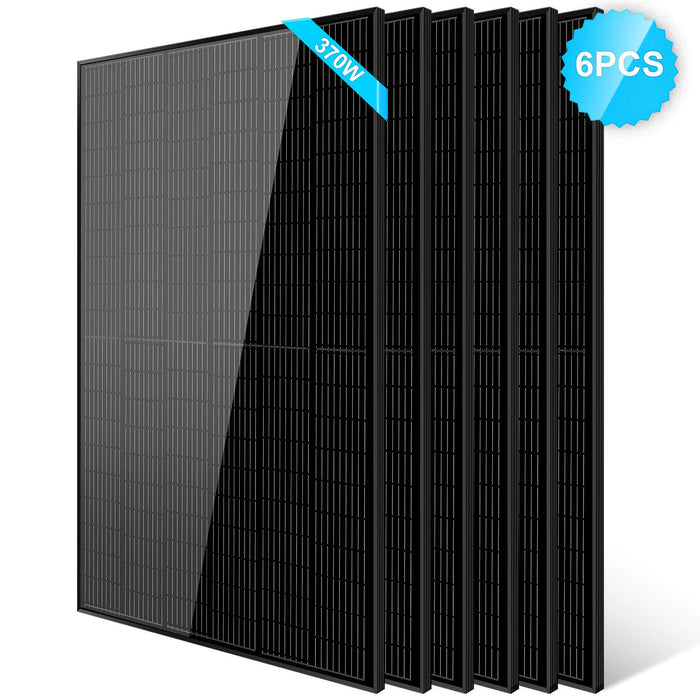

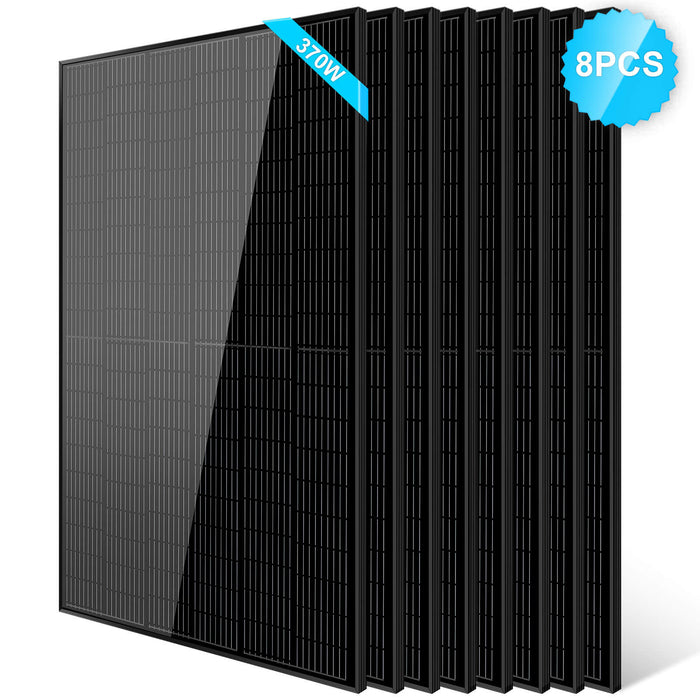

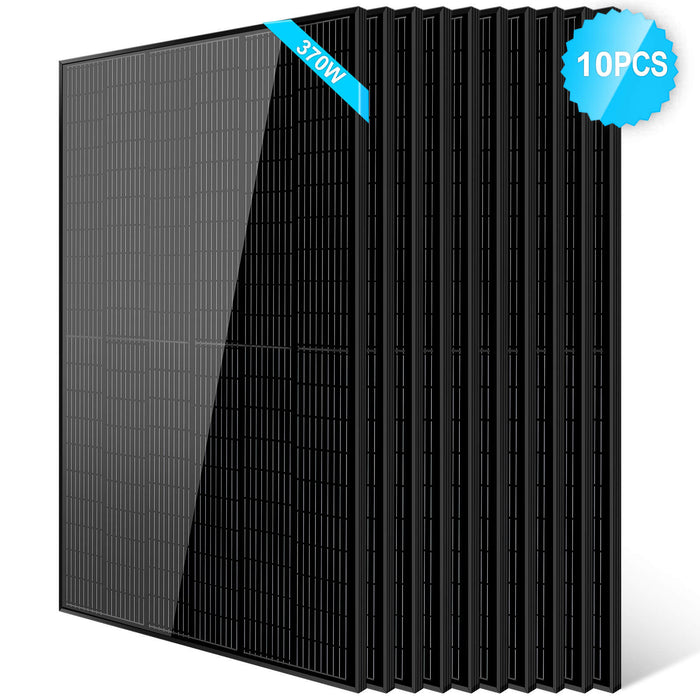

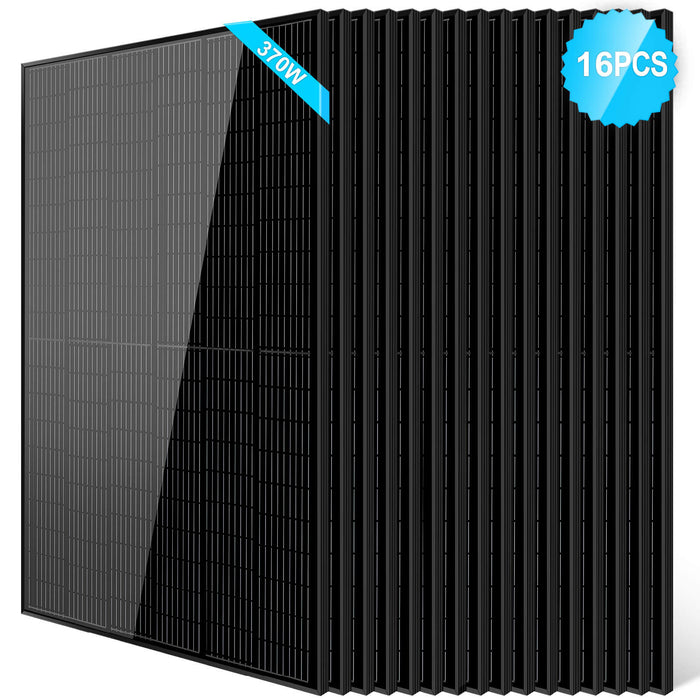

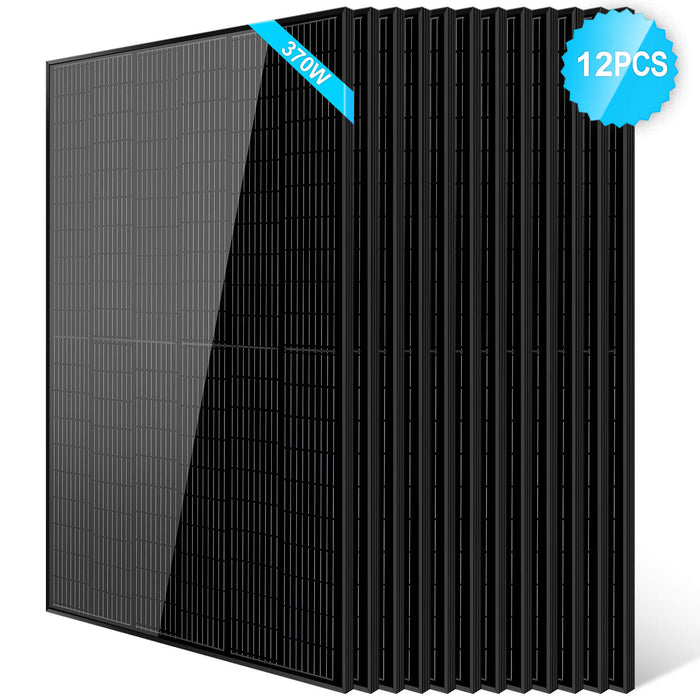

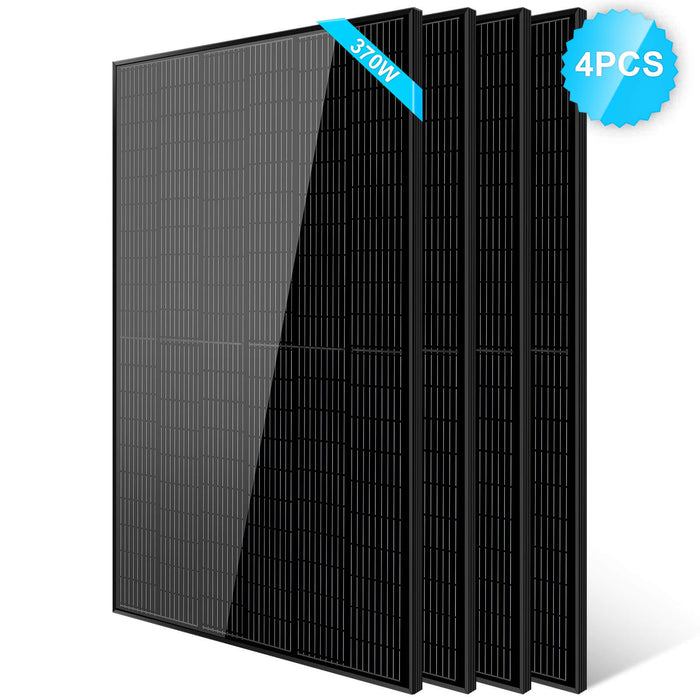

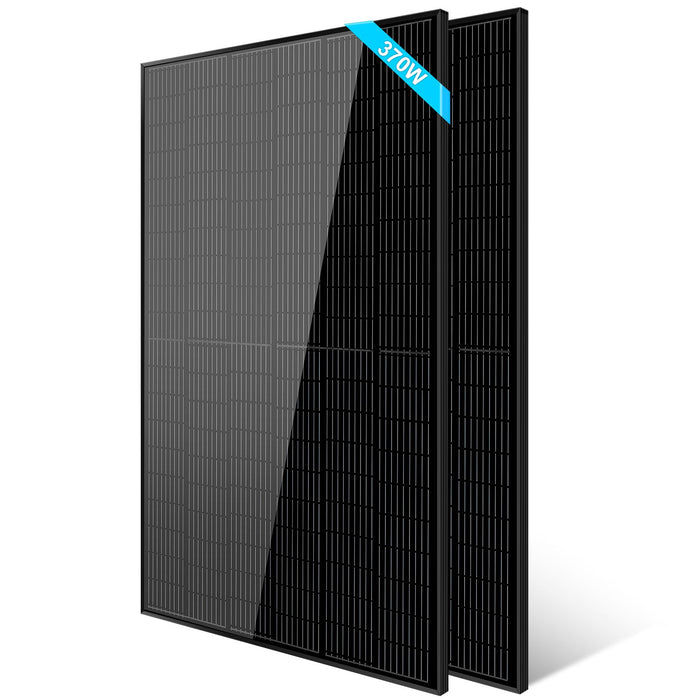

Sungold Power 370W Mono Black PERC Solar Panel UL 61730

• High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 20.3%. SunGoldPower 370W panels provide more output per surface area than most tranditional panels.
• High Tolerance: 370W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
• Widely Use : 370W solar panel is ideal for off-grid,on grid or hybrid solar system, can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
• Warranty : The solar panels come with 12 years Material and workmanship warranty and 25-years 80% output Performance Warranty,UL 61730,CEC Listed.

FEATURES

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

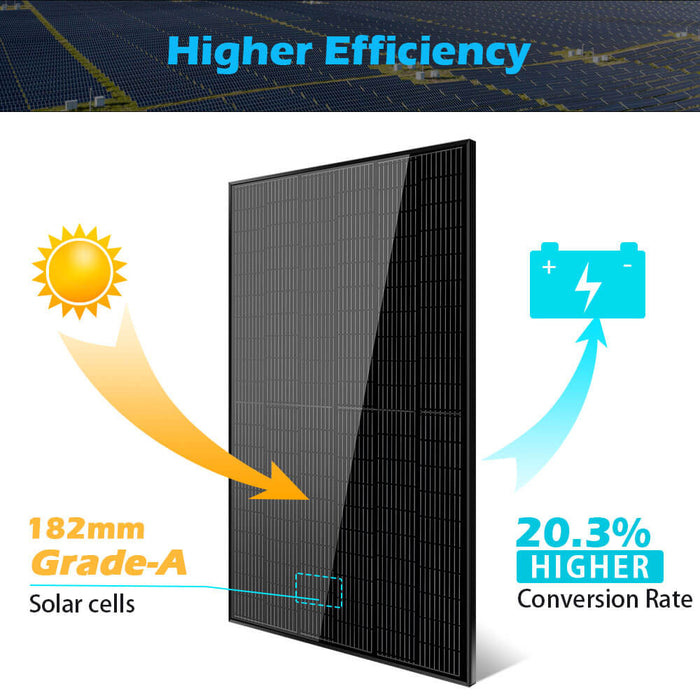

 High efficiency

High efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.

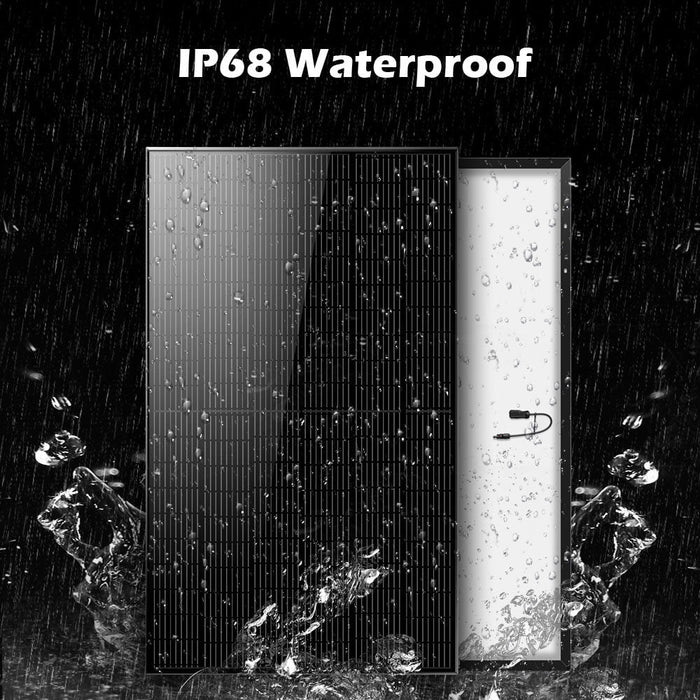

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

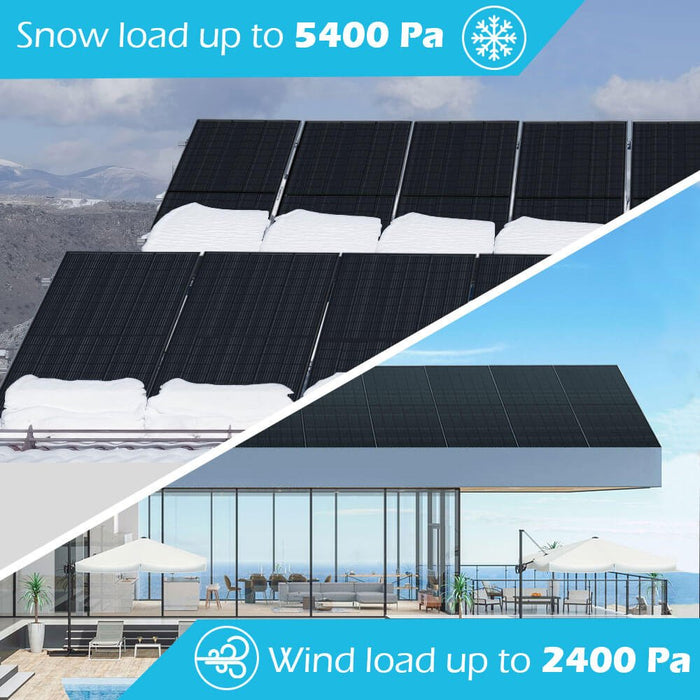

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

Home Solar System

With balanced power, improved stability, and economical electricity costs.

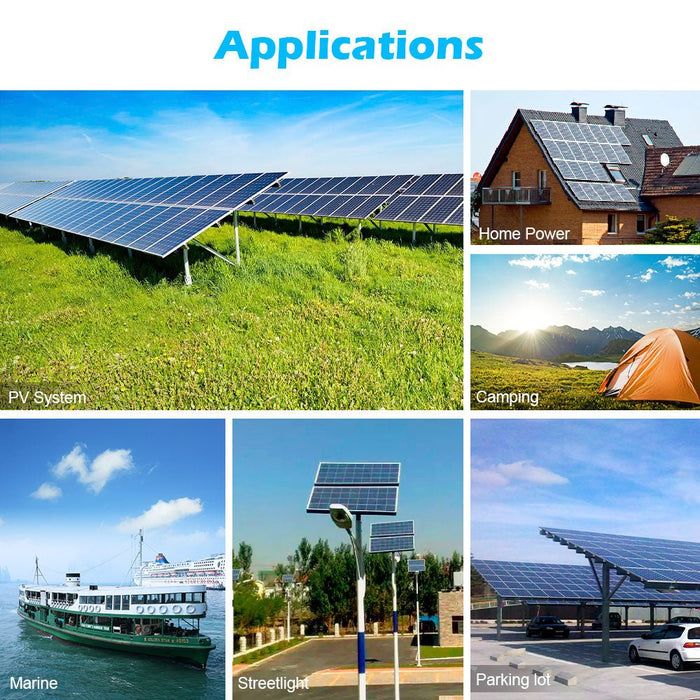

Wide Application

With balanced power, improved stability, and economical electricity costs.

SPECIFICATIONS

Model Type	SG370WM
Peak Power (Pmax)	370W
Production tolerance	±3%
Maximum Power Current (Imp)	11.15 A
Maximum Power Voltage (Vmp)	33.2V
Short Circuit Current (Isc)	11.81A
Open Circuit Voltage (Voc)	40.17V
Maximum System Voltage	1500V
Wind Resistance	2400Pa
Output Cables	12 AWG (1ft per cable)
Number of Cells	120(6*20)
Cell Type	Mono182mm
Certifications	UL 61730 CE TUV
Product Weight	41.8lbs

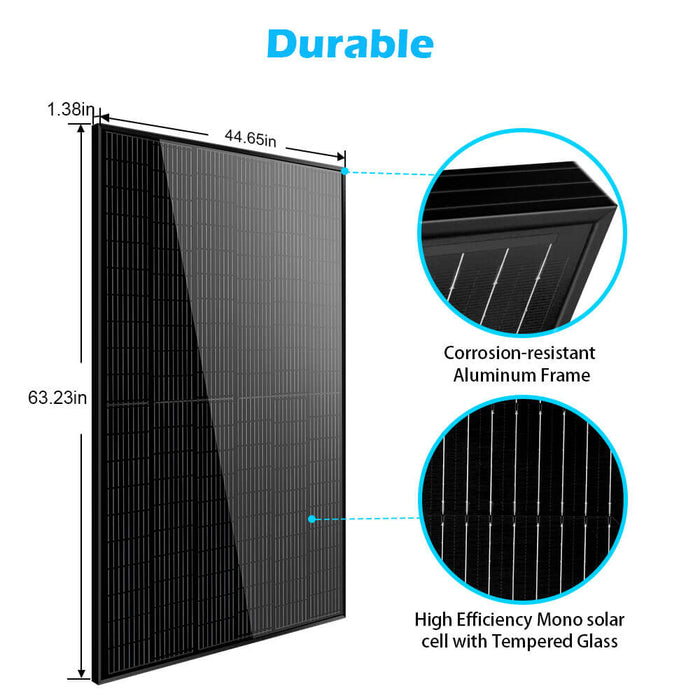

Product Dimension	63.23*44.65*1.38inch (1606*1134*35mm)
Package Weight	93.5lbs（2PCS）
Package Dimension	66.02*47.64*3.54inch（2PCS）
Performance	5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty	12 years
Operating Temperature Range	-40℉ to 185℉(-40℃~+85℃)
Maximum Permissible Module Temperature (T28 max):	185℉(85°C)
Module Fire Performance	Type 4 according to ANSI/UL 61730
Safety Class	Class II

RESOURCES

370W Mono Black Solar Panel User Manual

370W Mono Black Solar Panel UL61730 Certification

FAQ

Frequently Questions Answer

1. Is it waterproof?

Dear Customer, yes, this solar panel is waterproof.
