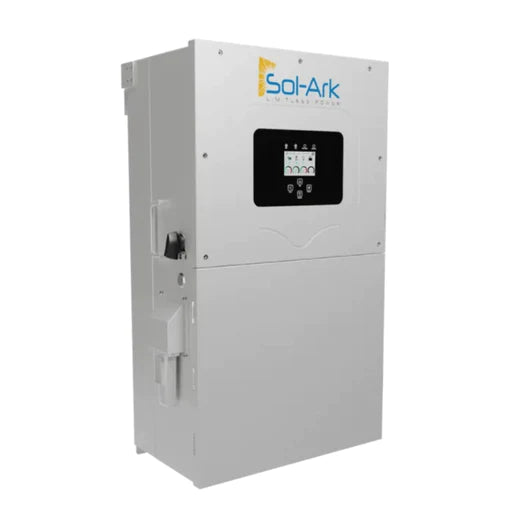

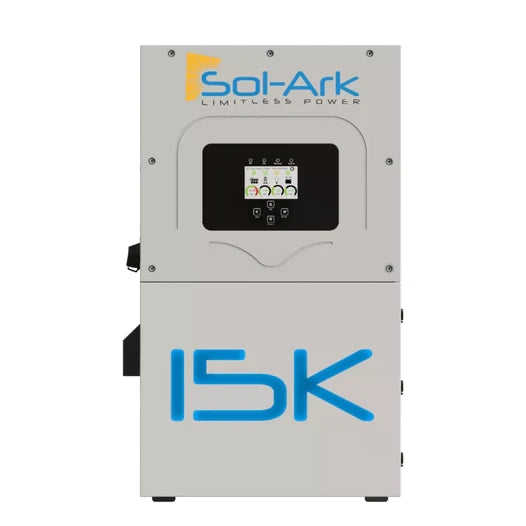

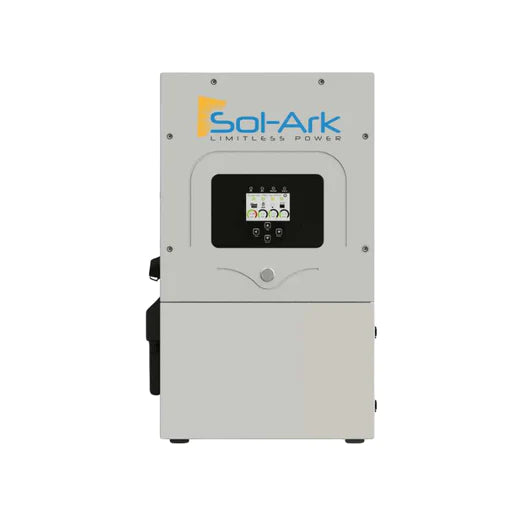

Sol-Ark 15k Overview:

Limitless

This solar inverter can be used off-grid or on grid! Applications include parallel stacking (see video below), grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving.

All-In-One

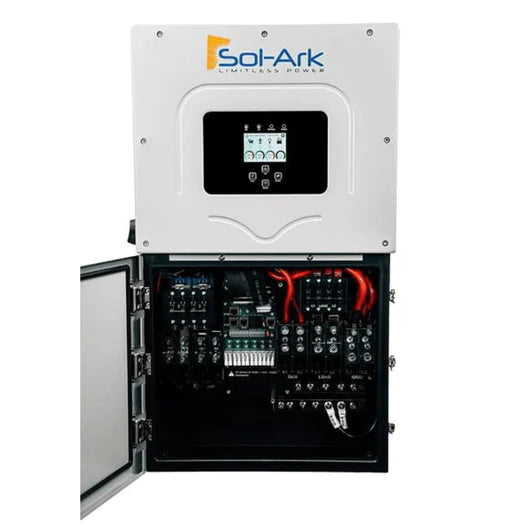

The Sol-Ark 15k Outdoor Case is a pre-wired system that contains the inverter, charge controller, and more, all in one package; no fuses, breakers, or combiner boxes necessary! With minimal additional hardware required, your install stays simple and low-cost.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

Highly Accelerated Life Testing

Proven to last well beyond the standard 10 year warranty

Engineered, Serviced, And Tested In The USA

Talk to a US Based Engineer 7 days a week

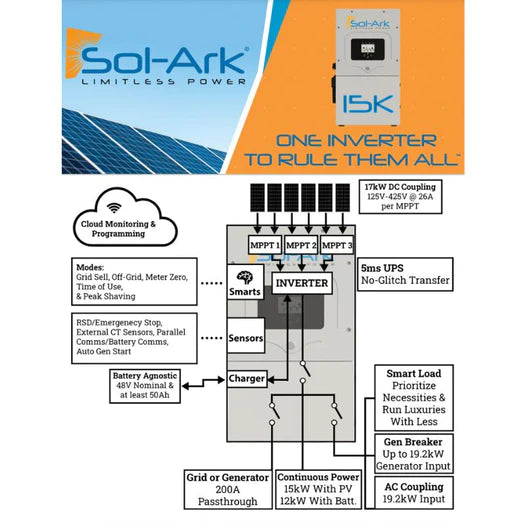

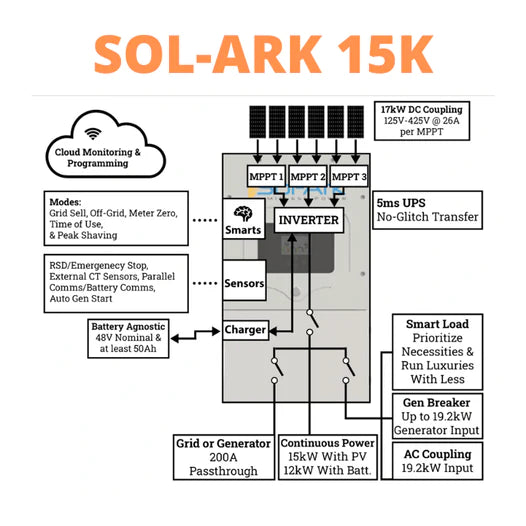

Applications

The best applications for the Sol-Ark 15k are off-grid, big gains, and time of use. For smaller scale systems, we highly recommend the Sol-ark 12k.

• Grid-Tied Mode – Sell power back to the Utility to reduce your electric bill
• Meter Zero Mode – Zero your electric bill without adding an additional smart meter
• Time-Of-Use Mode – Use solar and batteries to minimize grid power usage when it’s most expensive
• Smart Load Mode – Use a programmable output for high-power off grid loads or grid
• Time-of-use loads – to run only when there is optimum solar – use excess PV power when batteries are full
• Off Grid applications – battery agnostic
• AC Coupling – retrofits to existing grid tie systems
• Battery backup

 Features:

• Transformerless inverter
• Pure sine wave
• 120/240/208V
• Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
• Wide variety or 48V battery chemistries, from lead to lithium
• Simultaneously manages power to battery, loads, and grid
• Expandable
• Highly efficient

User Features And Integrations

• Color touch screen
• Remote monitoring from smart device
• Battery disconnect
• Battery temp sensor
• Auto-generator start
• Rapid shut down signal
• Current sensors
• Battery communication
• PV Disconnect
• Wiring knockouts
• WiFi

Videos & Manuals:

Load Application Guide:

Review of the Sol-Ark 15k:

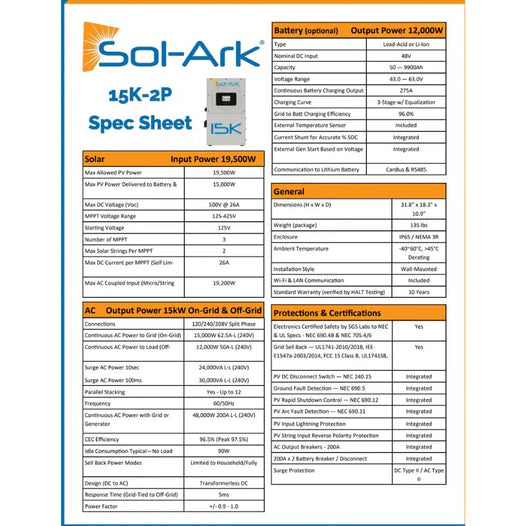

• Spec Sheet PDF
• Brochure PDF
