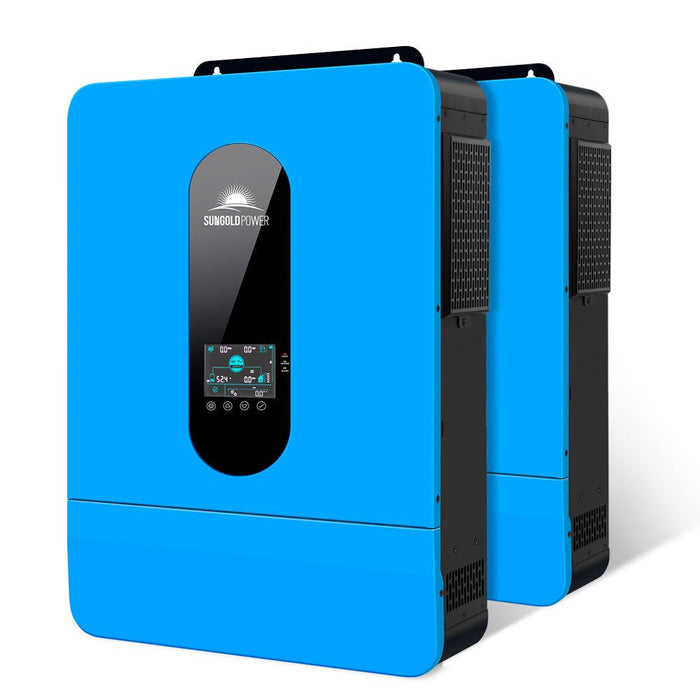

Sungold Power 13000W 48V Solar Charge Inverter Split Phase + Wifi Monitor (2 Units Parallel)

Highlight:

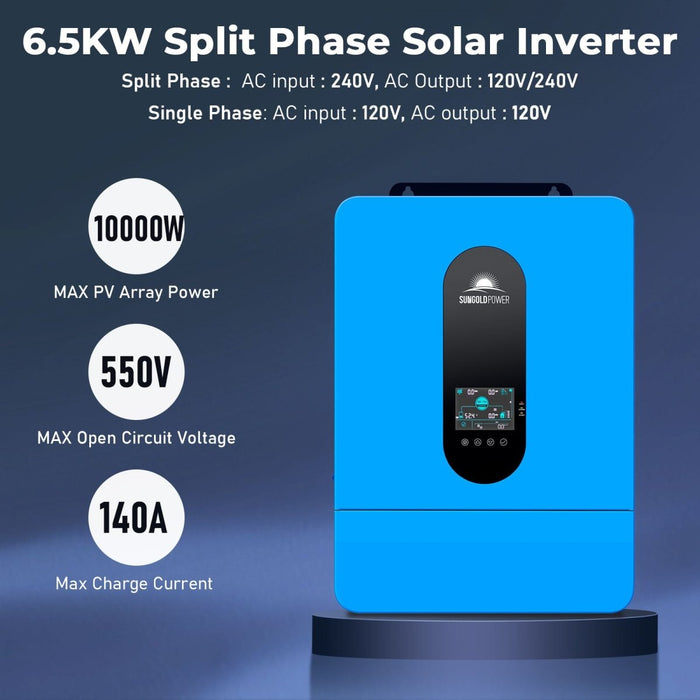

• ★All in one unit: 6.5KW Pure Sine Wave Solar Inverter Combined with Max 140A battery charging, 2 MPPT Solar controller inbuilt, Max. Voltage of Open Circuit: 550VDC, Split phase (120V/240V) or Single phase (120v) output. UL 1741 by ETL for Off Grid Solar System.

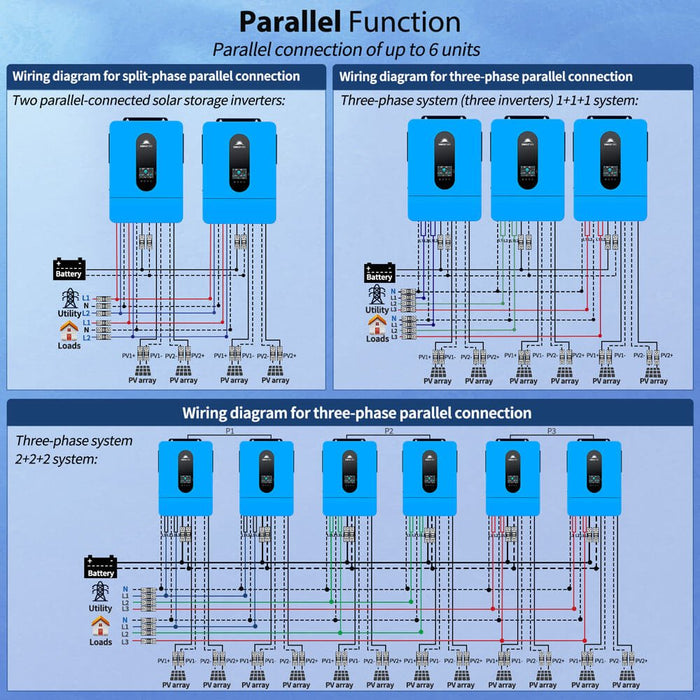

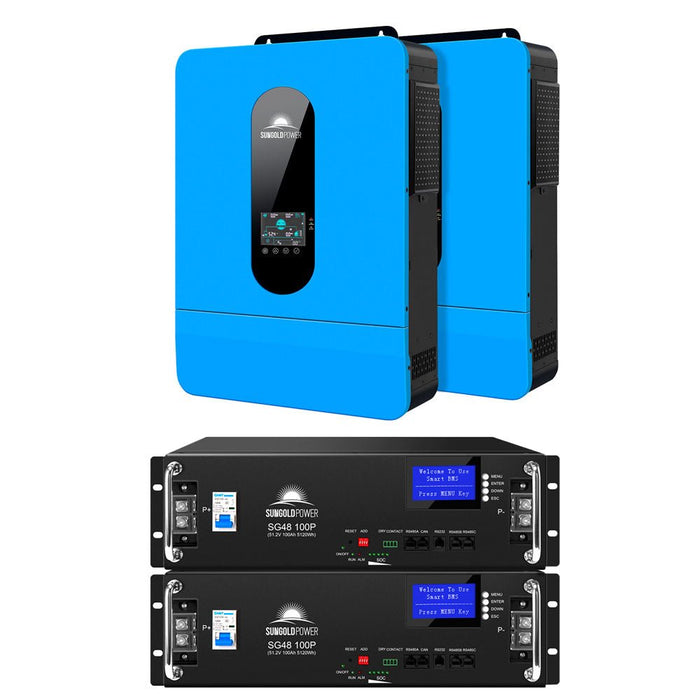

  ★Parallel Kit: Parallel 6 units up to 39KW power output, you will get 120V single phase / 120V/240V Split Phase or 208V 3-Phase Support (more than 3 unit in parallel), increases the inverter power and surge capacity.
• ★Stable AC output and Smart Protection: Rated Output Power: 6500W, Max Peak Power: 13,000VA, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

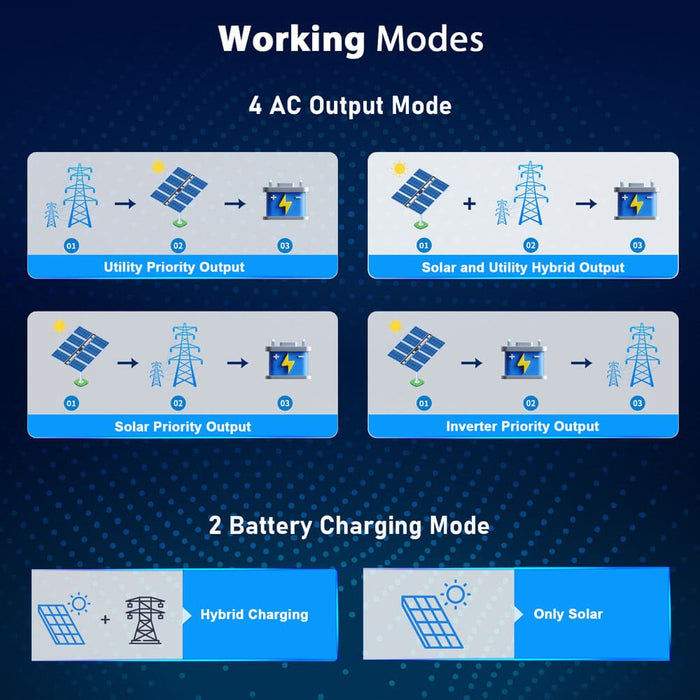

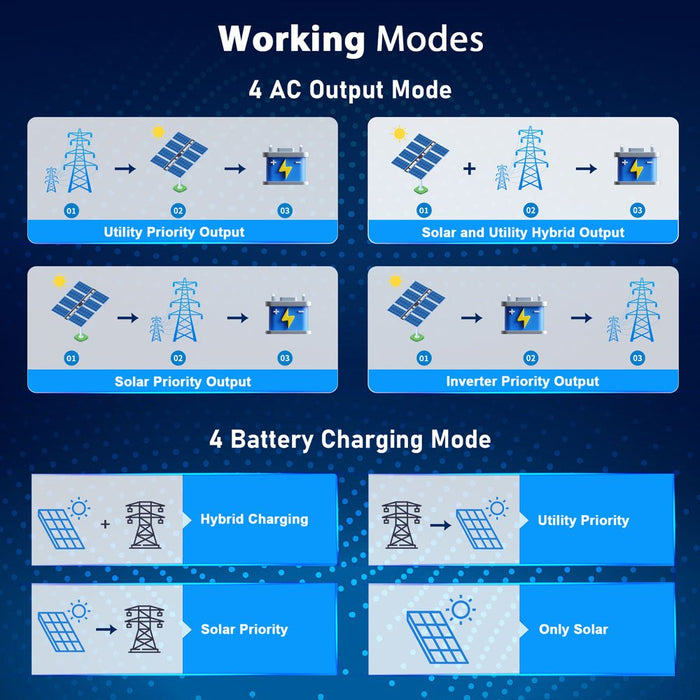

• ★Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:  Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

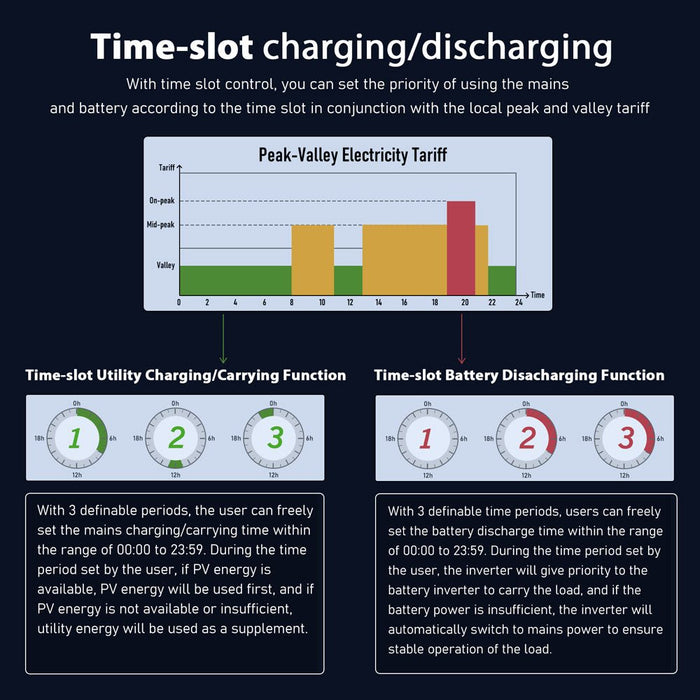

• ★Time-slot charging/discharging function:The SPH series 6500w inverter is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

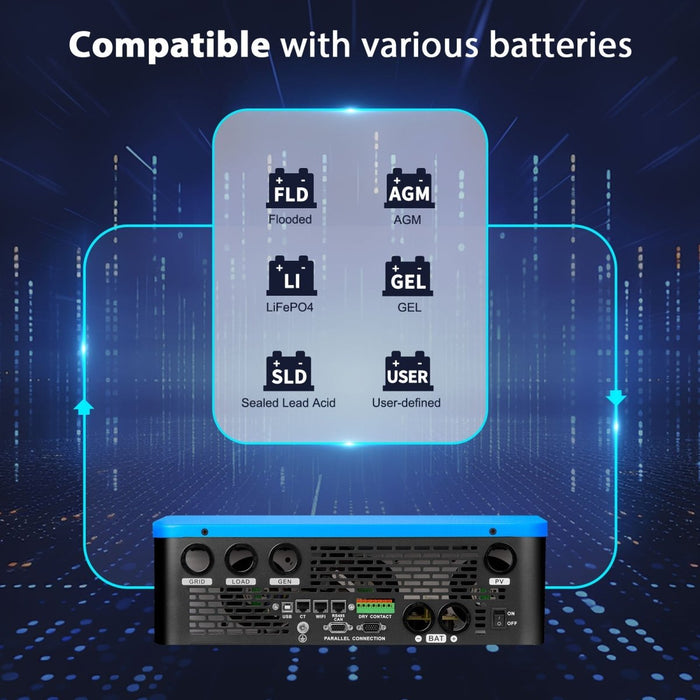

• ★Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types, and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. The 48v split phase inverter supports CAN and RS485 communication with SunGoldPower batteries.

FEATURES

SPECIFICATION

RESOURCES

6.5KW 48V Split Phase Solar Inverter User Manual

6.5KW 48V Split Phase Solar Inverter UL1741 Certification
