Ruixu Self-Heating Battery Optional Installation Method Bracket Rack - Flexibility & Stackable

Ruixu Self-Heating Battery Optional Installation Method Bracket Rack - Flexibility & Stackable

by Ruixu
SKU RX-10kWH-BR-HC
Save up to $990.00 Save $220.00
$2,888.00
$2,888.00 - $12,506.00
$2,888.00
$2,668.00
$2,668.00 - $11,516.00
$2,668.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Ruixu Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937
 More payment options

Have Questions? 📞Call or Text (916)-999-9937 (10am-10pm EST - Daily)

Description

Ruixu Self-Heating Battery Optional Installation Method Bracket Rack - Flexibility & Stackable

The RUiXU RX-LFP48100-H is a 48V 100Ah server rack lithium battery with integrated self-heating functionality, designed for cold climate installations. Paired with a modular and stackable bracket rack system, this battery offers a reliable, scalable, and compact energy storage solution for both residential and commercial use.

For No Heating Battery Optional Installation Method Battery Rack, click here!

FEATURES:

Self-Heating Battery for Cold Weather

  • Safe charging at temperatures as low as -20°C (-4°F)
  • Integrated heater pads draw power from the charger (standard or solar)
  • Ideal for cold climate energy storage applications

Modular & Scalable

  • Stack up to 9 batteries per bracket rack (10kWh–45kWh per rack)
  • Support up to 32 units in parallel (scaling from 5kWh to 160kWh)
  • No external controller required for expansion

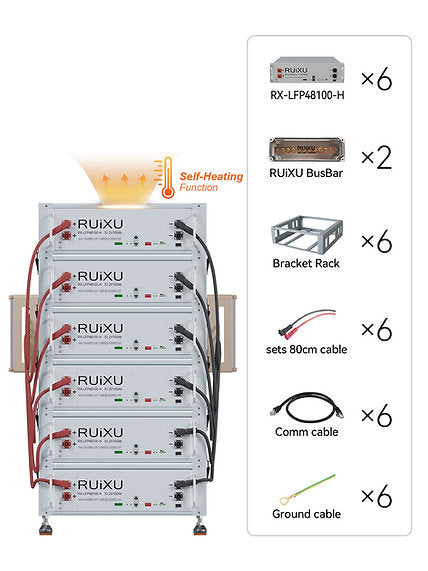

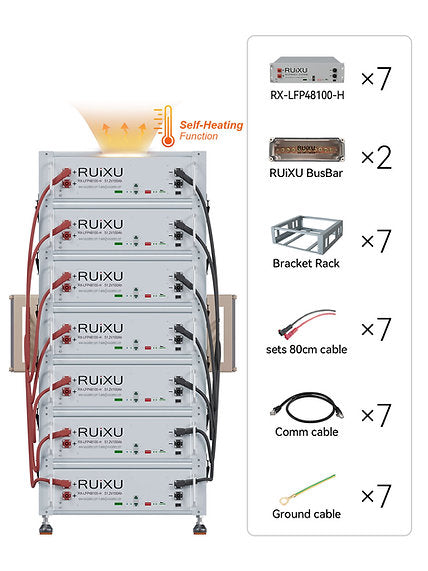

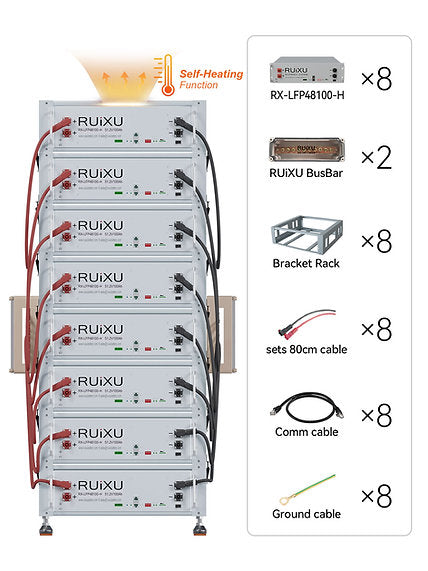

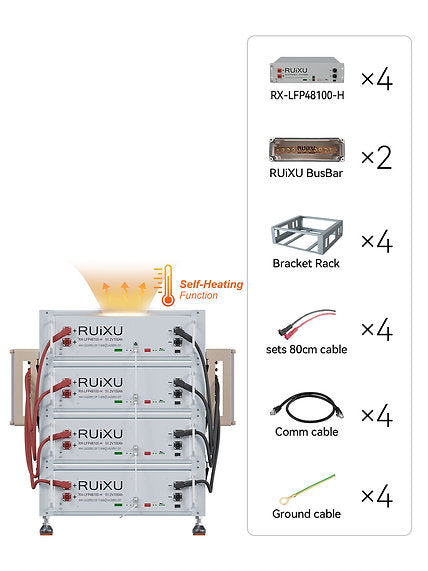

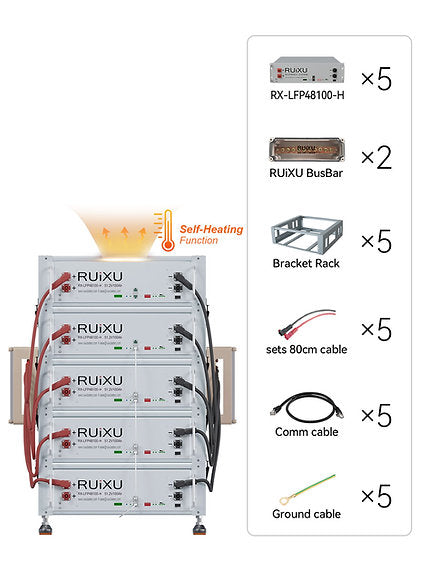

Bracket Rack Installation System

  • Stackable design for compact, vertical installation
  • Easily add racks as needed
  • Includes RUiXU Busbar for seamless connection
  • Designed for RX-LFP48100-H battery series

Smart Configuration

  • Use DIP switches to set RS485 baud rate and choose compatible inverter protocol

INCLUDES:

(With Each Battery)

  • (1) RUiXU 48V Self-Heating Server Rack Battery (RX-LFP48100-H)
  • (1) RJ45/CAT5e Patch Cable
  • (1) Ground Cable
  • (1) Set of Parallel 4AWG Cables

Optional Accessories (Sold Separately)

SPECIFICATIONS:

Parameters RX-LFP48100-H
Nominal voltage 51.2V
Nominal capacity 100Ah
Nominal energy 5.12kWh
Usable energy 4.92kWh
Operating voltage range 44.8V–56.0V
Charge voltage 56V
Float voltage 54.6V
Recommended charge current 50A
Max. charge current 70A
Recommended discharge current 50A
Max. discharge current 100A
Communication RS485 / CAN
Peak discharge current 101–119A @ 5mins | 120–149A @ 15S
IP rating IP20
Cycle life ≥6000 cycles @90%DOD
Net weight ~103.6 lbs
Dimension (W*H*D) 18.9*5.2*18.1 inches
Cell type Lithium-iron phosphate (LiFePO4)
Design life 15 years
Operation temperature 14–122°F
Storage temperature 14–113°F
Relative humidity 5%–90% No condensation
Install altitude ≤4000m
Installation location Indoor
Installation Wall mounted / Floor mounted / Stack / Rack mounted
Certification CE / IEC62619 / UN1973 / UN38.3
Heater Specifications
Voltage 56V
Power Consumption 250W
Function self-heating starts ≤4l°F (5°C), ≥53.6°F(5°C) self-heating stops
Communications
Canbus Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB,
MUST, Sunsynk,Schneider
RS485 MPP, Voltronic, RCT, Alpha outback
