MRCOOL DIY® 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable (EZPRO-18-HP-23016D-O)

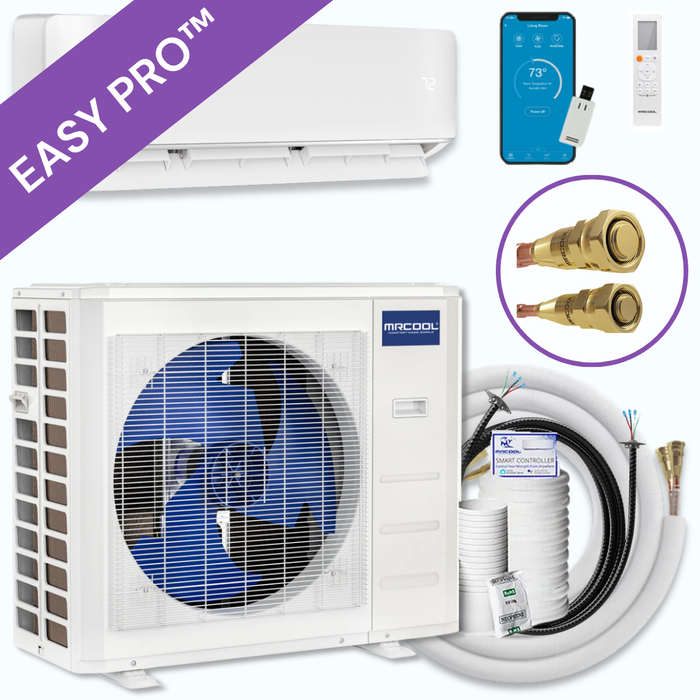

The MRCOOL® DIY® 5th Generation EasyPro 18,000 BTU Mini Split System is the perfect heating and cooling solution for rooms up to 800 sq. ft., offering year-round comfort with effortless do-it-yourself installation. This complete system includes a quiet indoor air handler, rugged outdoor condenser, and a 16 ft. pre-charged Fast Connection® line set with DIYPRO™ cable — so you can install it without hiring an HVAC technician.
Ideal for bedrooms, offices, server rooms, or workshops, the EasyPro system is engineered for quiet operation, smart control, and energy efficiency, all while being built to last in demanding environments.
FEATURES:
DIY Installation:
- Comes with a 16 ft. pre-charged Fast Connection® line set and DIYPRO™ cable
- No HVAC technician required
- Perfect for homeowners or DIYers
Smart Home Integration:
- Built-in WiFi for easy control via the MRCOOL® Smart HVAC Controller® App
- Compatible with Amazon Alexa and Google Assistant for voice commands
Personalized Comfort:
- Follow Me® remote control adjusts the temperature based on your position in the room
- Auto Restart feature restores your settings after a power outage
Energy-Efficient Performance:
- High efficiency with SEER2 rating of 20.0 and HSPF2-4 rating of 8.5
- Uses eco-friendly R-454B refrigerant
Quiet Operation:
- Operates as low as 54–55 dB(A) — ideal for quiet environments
Reliable in All Climates:
- Provides cooling even in outdoor temperatures as low as 5°F
- Great for server rooms, greenhouses, and other temperature-sensitive spaces
Durable, Coastal-Ready Construction:
- Gold Fin® condenser coating protects against corrosion and harsh weather
Healthier Indoor Air:
- Active Clean Technology keeps the indoor unit clean and fresh
- Promotes better indoor air quality and easy filter maintenance
Certified & Backed by Warranty:
- AHRI certified, listed with NEEP ccASHP, and meets CEE Tier 1 - North standards
- Includes a 2-year parts warranty and 1-year compressor warranty upon registration
INCLUDES:
-

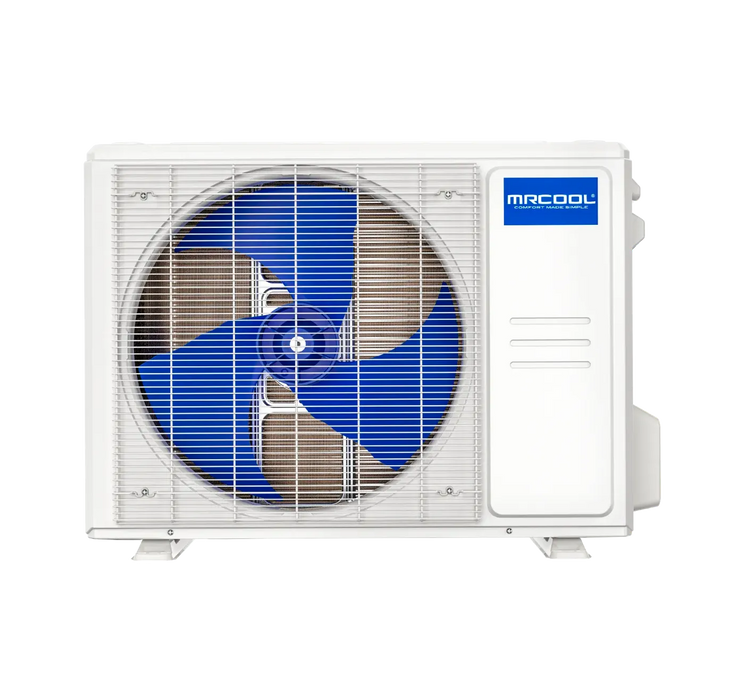

18K Condenser + 16 ft. Line Set (DIY-18-HP-C-230D25-O)
-

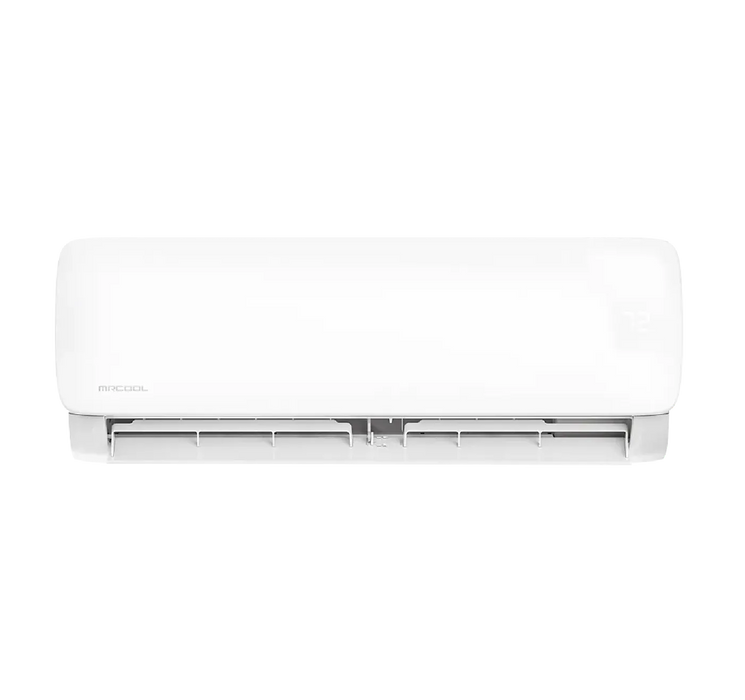

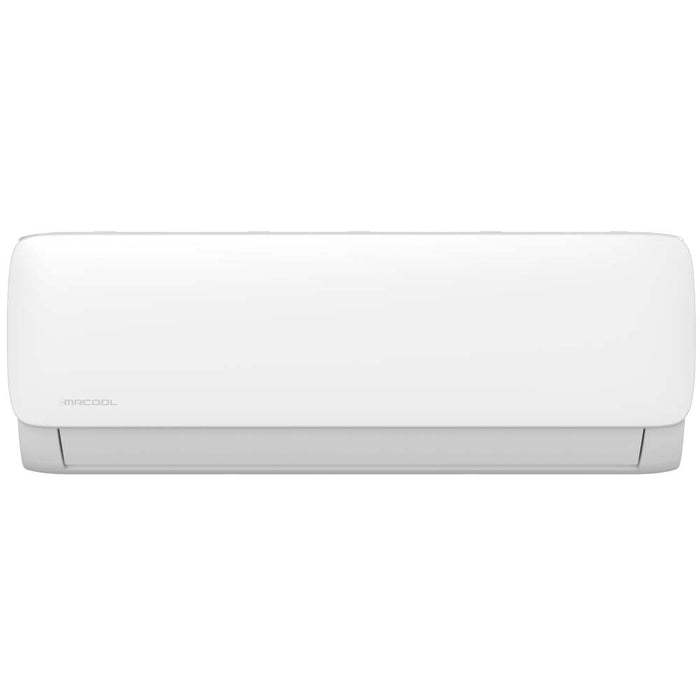

18K BTU Air Handler (DIY-18-HP-WMAH-230D25-O)
- Remote Control
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
30.12 W" x 11.93 D" x 21.85 H" |
| Air Handler Dimensions |
38.23 W" x 8.98 D" x 12.64 H" |
| Condenser Weight |
62.61 lbs |
| Air Handler Weight |
30.64 lbs |
| CAPACITY & PERFORMANCE |
| Zone Capacity |
1 |
| Cooling Capacity |
17,000 BTU |
| Outdoor Operating Temperature (Cooling) |
5°F - 122°F |
| EER2 |
9.8 |
| SEER2 |
20 |
| Heating Capacity |
18,000 BTU |
| Outdoor Operating Temperature (Heating) |
13°F - 75°F |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.6 |
| Coverage Area |
Up to 800 sq ft. |
| Outdoor Noise Level |
55 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
46.5/36/18.5 dB(A) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
15A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
34.92 oz |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Max Line Set Length |
98.4 ft. |
| FEATURES |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
2 Year Parts / 1 Year Compressor |
