Description
MRCOOL 5th Gen Advantage Series - 18,000 BTU Single Zone Mini Split Complete System with 16ft. Line Set - 230V (A-18-HP-230D-O)
Thinking of building your own system? Reach out to us today!

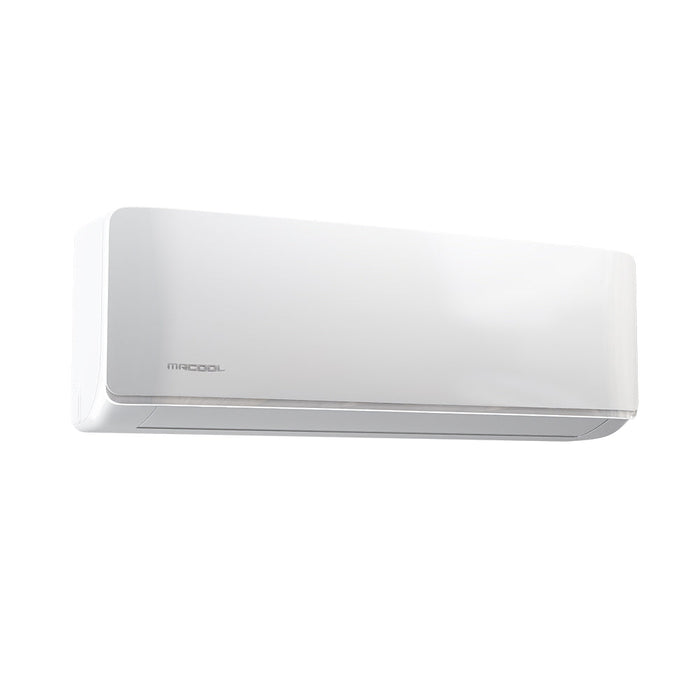

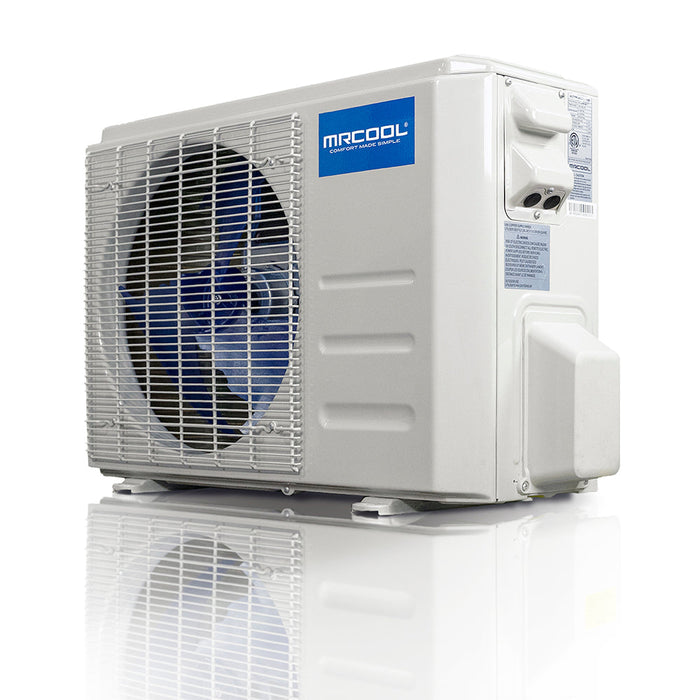

The MRCOOL® 5th Generation Advantage 18K BTU Mini-Split System delivers powerful, energy-efficient heating and cooling for spaces up to 800 sq. ft. Perfect for large bedrooms, open living spaces, or studios, this ductless system includes a sleek indoor air handler, a corrosion-resistant outdoor condenser, and a 16 ft. pre-charged line set.
Designed for modern living, this unit offers smart Wi-Fi controls, ultra-quiet operation, and eco-friendly R-454B refrigerant. While not a DIY unit, it’s a top choice for those seeking reliable comfort, superior efficiency, and compatibility with Alexa and Google Assistant.
FEATURES:
-
Coverage: Efficiently cools/heats areas up to 800 sq. ft.
-
Wi-Fi Enabled: Control with the MRCOOL® SmartHVAC app, Amazon Alexa, or Google Assistant.
-
Eco-Friendly Refrigerant: Uses R-454B refrigerant with ~80% lower GWP than R-410A.
-
High Efficiency:
-
Up to 19.2 SEER2
-
9.3 HSPF2-4 for optimal energy savings
-
-
Ultra-Quiet Operation: Indoor noise levels as low as 19 dB(A).
-
Gold Fin® Condenser: Corrosion-resistant, ideal for coastal or harsh environments.
-
Follow Me® Technology: Remote senses temperature at your location for targeted comfort.
-
Built-In Diagnostics: Includes leak detection, timer mode, and low ambient cooling down to 5°F.
-
Certified Performance: AHRI certified, NEEP ccASHP listed, and CEE Tier 1 - North compliant.
-
Installation Kit Included: 16 ft. line set included for HVAC professional installation.
-
Warranty:
-
1-year parts
-
2-year compressor
-
1-year remote
-
Optional Lifetime compressor coverage with MRCOOL® Care registration
-
Important Note: This is not a DIY unit. Professional HVAC installation is required for optimal performance and to maintain warranty eligibility.
SPECIFICATIONS:
DIMENSIONS | |
---|---|
Condenser Dimensions | 31.69" W x 12.99" D x 21.81" H |
Air Handler Dimensions | 37.99" W x 8.46" D x 12.56" H |
Condenser Weight | 72.31 lbs |
Air Handler Weight | 24.47 lbs |
CAPACITY & PERFORMANCE | |
Zone Capacity | 1 |
Cooling Capacity | 18,000 BTU |
Outdoor Operating Temperature (Cooling) | 5°F - 122°F |
EER2 | 10.8 |
SEER2 | 19.2 |
Heating Capacity | 18,800 BTU |
Outdoor Operating Temperature (Heating) | 5°F - 86°F |
HSPF2-4 | 9.6 |
HSPF2-5 | 7.5 |
Coverage Area | Up to 800 sq ft. |
Outdoor Noise Level | 56.0 dB(A) |
Indoor Noise Level (Hi/Mi/Lo) | 50.5/45/36/24/19 dB(A) |
ELECTRICAL REQUIREMENTS | |
Voltage | 208-230V |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 20A |
Min Circuit Ampacity | 15A |
REFRIGERANT & PIPING | |
Refrigerant Type | R-454B |
Refrigerant Volume | 40.57 oz |
Liquid Line Size | 1/4" |
Suction Line Size | 1/4" |
Max Line Set Length | 98.4 ft. |
FEATURES | |
Inverter | DC |
Compressor Type | Rotary |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Works with IOS | Yes |
Works with Android | Yes |
Remote Control Included | Yes |
CERTIFICATIONS & WARRANTY | |
Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
Warranty | 1-year parts, 2-year compressor, 1-year remote warranty; optional Lifetime compressor coverage with MRCOOL® Care enrolment. |
