MRCOOL DIY 5th Gen 2-Zone 30,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre-Charged Line Sets (12K+18K) (DIYM236HP)
Take Control of Your Comfort. The MRCOOL DIY 5th Gen Multi-Zone Mini Split System makes it simple and affordable to enjoy powerful, energy-efficient heating and cooling — all without hiring a professional.
- Perfect Comfort for Two Rooms
Heat or cool two spaces — one up to 500 sq. ft. and another up to 750 sq. ft. — each with independent temperature control for personalized comfort.
Forget expensive installation. No HVAC license or special tools are required — if you can handle basic hand tools, you can install it yourself.
Equipped with pre-charged Quick-Connect® line sets, there’s no refrigerant handling or vacuuming needed. Just connect and enjoy instant comfort.
- Year-Round Energy Savings
With up to 23 SEER2 cooling efficiency and 9.9 HSPF2-4 heating performance, this system delivers reliable comfort while keeping energy bills low.
Stay cozy even in freezing temperatures — dependable heating works down to -13°F.
- Strong Warranty Protection
Includes a 7-Year Compressor Replacement Warranty and 5-Year Parts Coverage for peace of mind.
Whether it’s hot summer days or freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable and your energy bills low. Smart. Simple. Affordable.

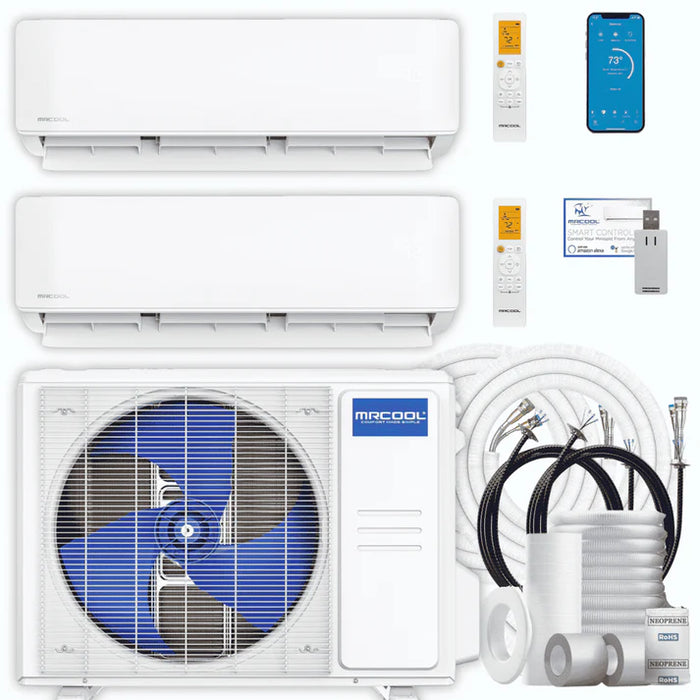

WHAT YOU GET:
MRCOOL DIY® 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V (DIY-MULTI5-36HP230D-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
-

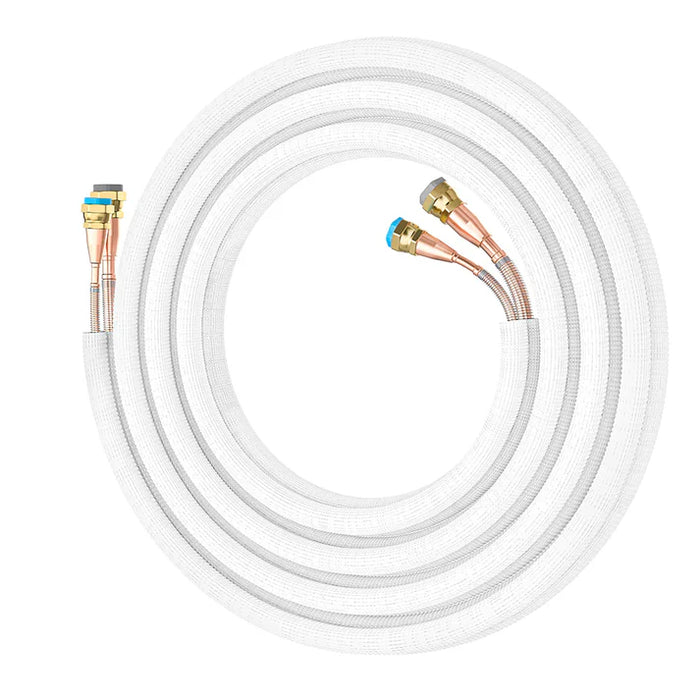

PRE-CHARGED LINE SETS x 2

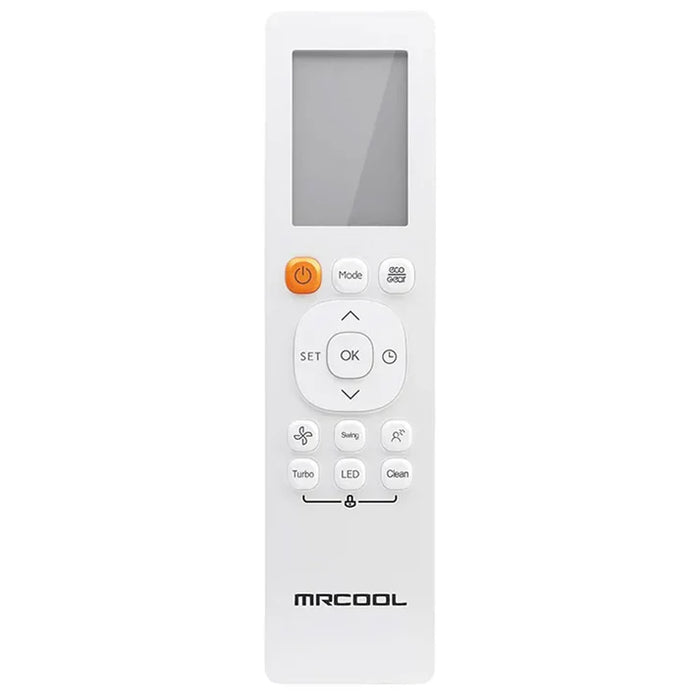

- REMOTE CONTROL x 2
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 30,000 BTU
Zone 1: 12,000 BTU
Zone 2: 18,000 BTU
|
| Coverage Area |
Total: 1,250 sq. ft.
Zone 1: 500 sq. ft.
Zone 2: 750 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
2 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (36K) x 1 |
| Model |
DIY-MULTI5-36HP230D-O |
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Cooling Capacity |
34,000 BTU |
| SEER2 |
23.0 |
| EER2 |
12.0 |
| Heating Capacity |
36,000 BTU |
| HSPF2-4 |
9.9 |
| HSPF2-5 |
7.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
30.5A |
| Max Fuse Breaker |
35.0A |
| Weight |
169.75 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (18K) x 1 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
