Zendure | SuperBase V4600 + B6400 + 400W Panel

SKU: ZDSBV6400-gy-us +ZDSATB6400-gy ++ZD400SP-gy

$11,998.00

Sale Temporarily Out of Stock

Amount of 400W Solar Panels 1 2

Product variants

Quantity

🚚 Fast Delivery Times
❓Questions? Talk to Experts 469-809-4999
🧑🏻‍💼Post-Purchase Lifetime Customer Support
🛡️Premium Authorized Dealer - Warranty Included

Zendure | SuperBase V4600 + B6400 + 400W Panel

The SuperBase V 6.4kWh is the first plug-and-play home energy storage system designed for the whole house. A customizable energy ecosystem with user-centric design and revolutionary technology, SuperBase V sets a new standard for home energy storage. Features the world's first home energy storage system with EV semi-solid state batteries!

What a Concept

SuperBase V is the first plug-and-play home energy storage system designed for the whole house. A customizable energy ecosystem with user-centric design and revolutionary technology, SuperBase V sets a new standard for home energy storage.

Intelligent Energy Management

Our Home Panel with EV Outlets connects SuperBase V to your home’s electrical circuits to supply power throughout the house. The Zendure app gives you tools to monitor, manage, and customize your energy use. Using Zendure’s Time of Use tools, you can significantly reduce your energy bill.

Zendure | Superbase V4600

EV-Grade Semi-Solid State Batteries

SuperBase V is the world's first home energy storage system with semi-solid state batteries. At more than 228Wh/kg, our semi-solid state batteries have up to 42% more energy per pound compared to lithium iron phosphate (LiFePO4) batteries. And with our battery management software, internal battery life can be an amazing 10 years or more.

Zendure | Superbase V4600

6.4 to 64kWh Cpacity

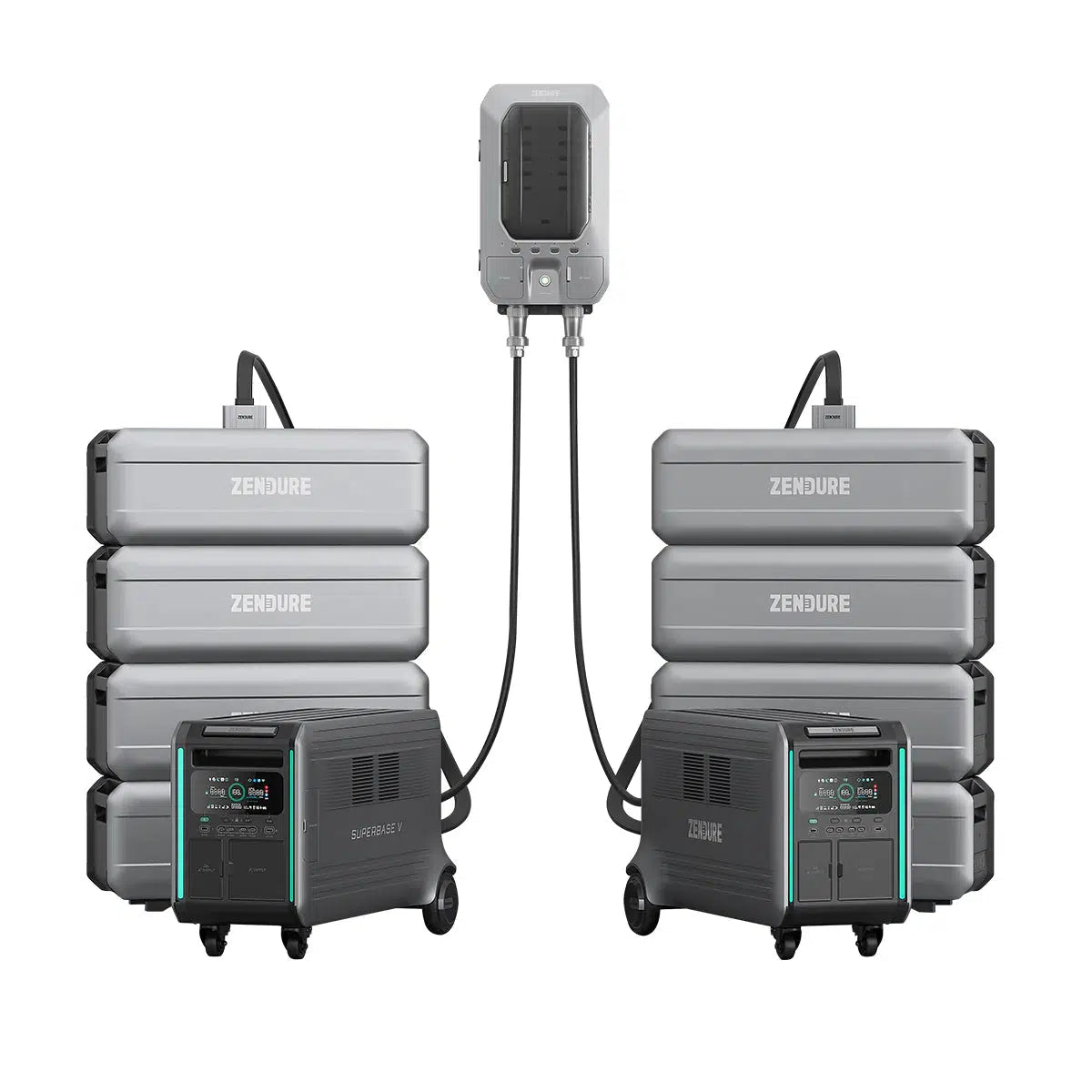

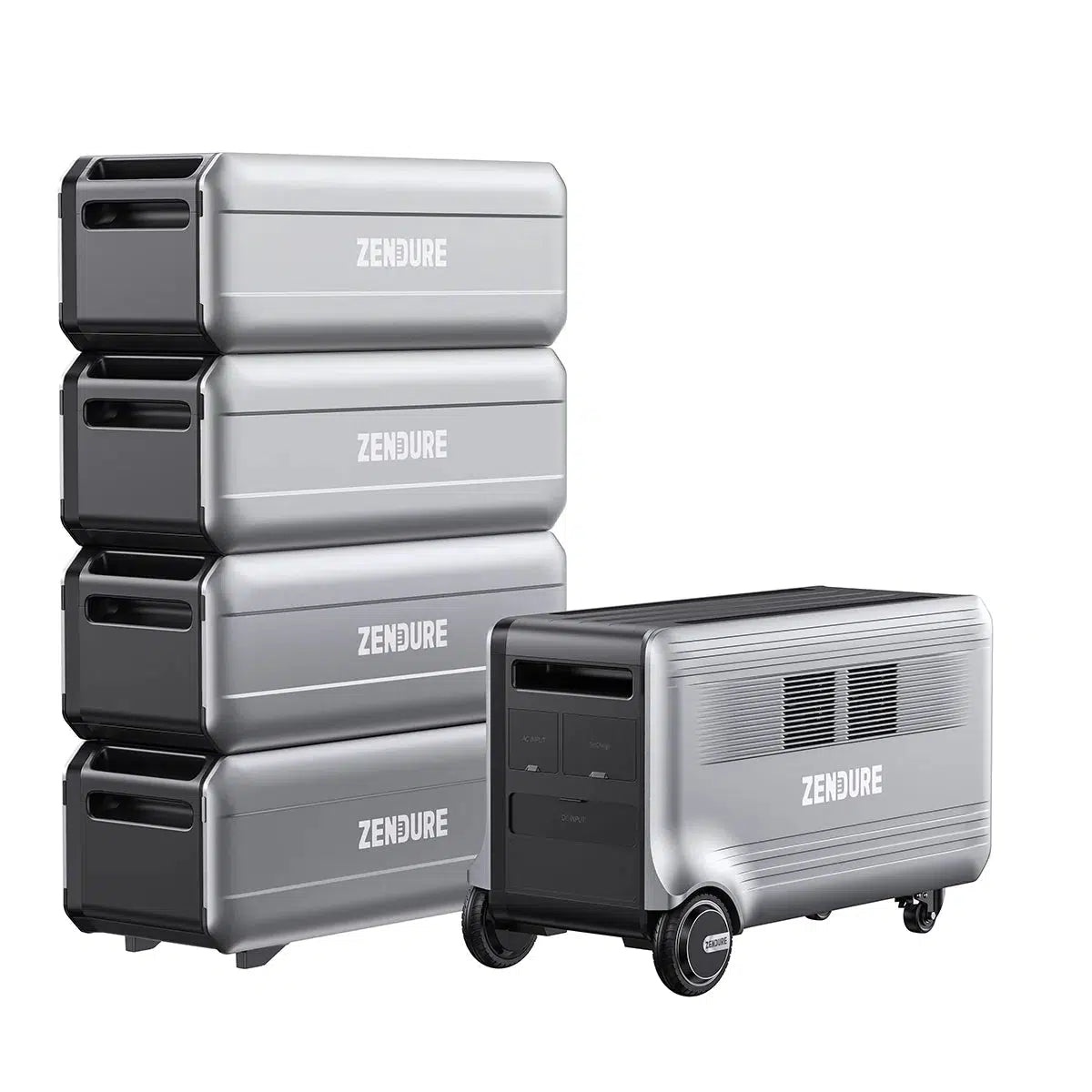

The SuperBase V6400 has a storage capacity of 6.4 kWh (6,438Wh). The maximum configuration for SuperBase V6400 includes two base units and eight Satellite Batteries for a total capacity of 64kWh. This is enough energy to power a typical household for a week or more

Zendure | Superbase V4600

3800W to 7600W AC Output

A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.

Zendure | Superbase V4600

3000W solar Input

SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.

Zendure | Superbase V4600

A Full Charge in 2 Hours

You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.
Zendure | Superbase V4600

Plug-and-Play Energy Storage/Use

Home batteries can be quite heavy. SuperBase V’s rear wheels are motorized to help lighten the load. Simply pull the handle and enjoy true portability, even on inclined surfaces.

Zendure | Superbase V4600

SuperBase V is made for

Power Independence

3800W-7600W AC Output
6600W Recharge MAX

Emergency Backup

120V/240V Dual Voltage

If your home or worksite includes 240V appliances or power tools, you need an energy storage system capable of high-voltage output. And while other products on the market can provide 120V or 240V, SuperBase V is the first and only system that can supply both at the same time, from a single base unit, thanks to our patented GridFlow 2.0 Real-Time Bidirectional Inverting Technology. This also makes 240V on the road a reality, making it an ideal worksite companion.

3800W-7600W AC Output

A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.

EV

Level-2 Fast Charge

Home panel with 2 EV Outlets

With 2 EV outlets (integrated 14-50 and 6-20 EV outlets) and up to 12,000W of power distribution*, you can quickly charge two electric vehicles at the same time.

Outdoor LifeMotorized Wheels

RV Life

3000W Solar Input

SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.

Specifications

General Information
Manufacturer Name:	Zendure
Dimensions:	28.7" x 13.6" x 17.4" in
Weight:	130 lbs
Operating usage temp:	Charge -20 to 45 C, Discharge -20 to 45 C
Connection Type:	Wifi/Bluetooth
Battery Cells:	Semi-Solid State
Warranty:	3 Year Warranty (2 Year Extension when Registering)
Input
AC Input:	1,800 Max, 120V, 3,600W, 240V
Solar Input:	1x XT90 3000W, 10-150Voc
Car Input:	1x XT90 12V/24V - 10A
EV Input:	ZenT2 Port
Outputs

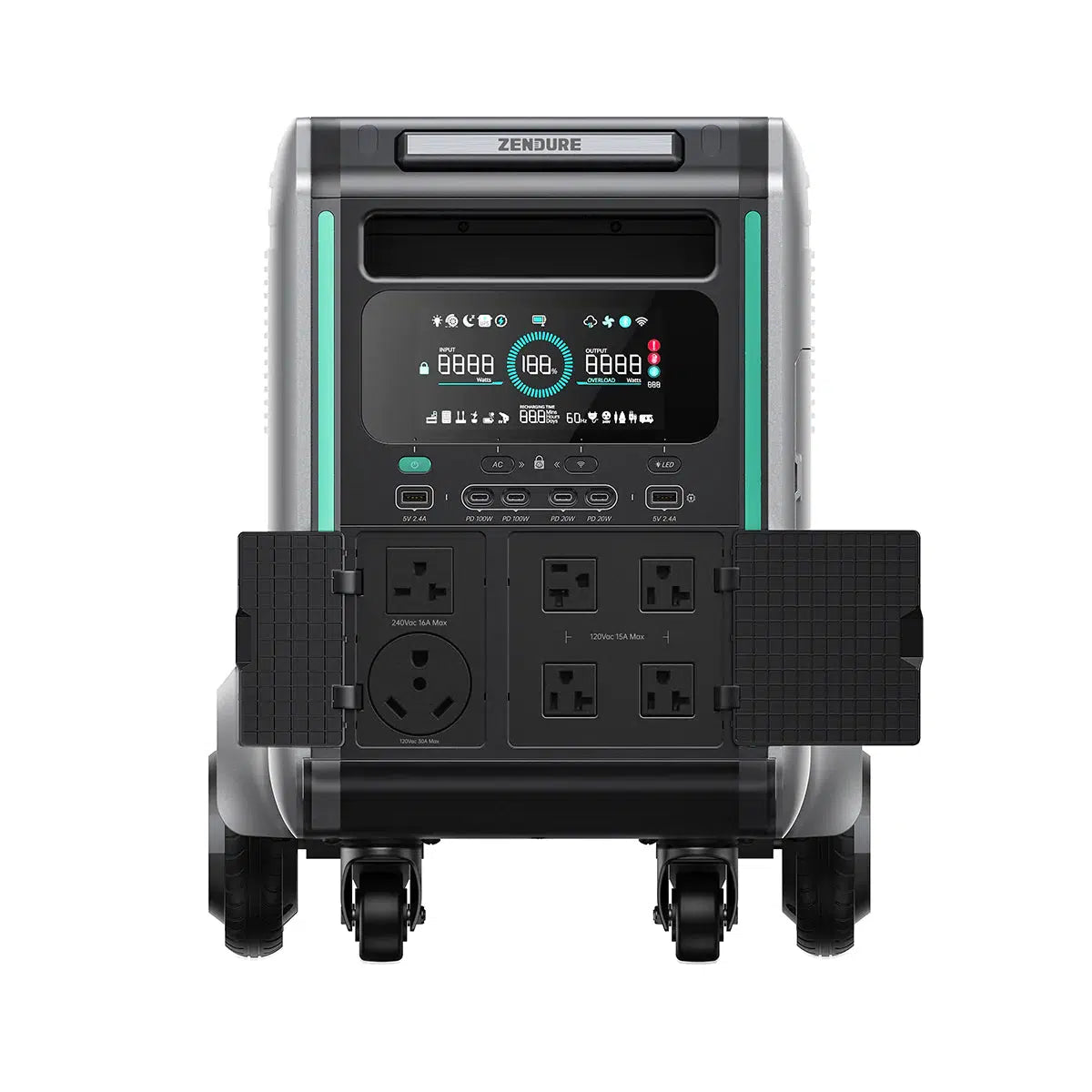

AC Output:	4 x 5-20: 15A 1,800W Max (120V AC) 1 x 6-20: 16A 3,800W Max (240V AC) 1 x TT-30: 30A 3,600W Max (120V AC)
DC Output:	1 x Car Outlets: 12.6V/10A Max 2 x DC5521: 12.6V/3A Max 1 x Anderson: 12.6V/30A
USB Output:	USB-C (1)/(2): 5V-20V, 100W Max each USB-C (3)/(4): 5V-12V, 20W Max each USB-A (1) (2): 5V/2.4A total

FAQs

1. What's the cycle life for SuperBase V?

-3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.

2. What kind of batteries does SuperBase V use?

-SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.

3. What is the AC output power of SuperBase V?

-The LFP and SSS versions of SuperBase V both have 3,800W rated power and 5,000W peak power. Two SuperBase V's with the same type of battery can be connected to each other with our ZenY cable or the Home Panel to achieve up to 7,600W of total output power.

4. Can 2 SuperBase V be connected for higher output power?

-Yes, two SuperBase V's can be connected together using either our Home Panel or the ZenY cable, doubling the rated output power to 7,600W.

5. Can I mix semi-solid-state and LFP products?

-No, a SuperBase V system should be configured with only semi-solid-state components or only LFP components.

6. What's the capacity of the semi-solid-state SuperBase V?

-The semi-solid-state version has a capacity of 6,438Wh, and the LFP version has a capacity of 4,608Wh.

7. What is max solar panel charging input?

-SuperBase V can collect up to 3,000W through the XT-90 port.

8. Where is solar panel input?

-SuperBase V can accept solar power through the XT90 port or the AC input.

9. How many MPPT ports are used in order to achieve 3,000W solar input?

-SuperBase V has one MPPT to accept solar power through the XT90 port. We are currently evaluating new products that will include 2 MPPT inputs and 2 MPPT outputs.

10. What's the switching time for UPS?

-The US model of SuperBase V can switch to battery power with 0ms of downtime to its AC output port. Other models and other connections will see less than 13ms of interruption.

11. How many Satellite batteries can be connected to a single SuperBase V?

-For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.

12. How do I connect the Satellite Batteries to each other? And how do I connect them to SuperBase V？

-Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.
