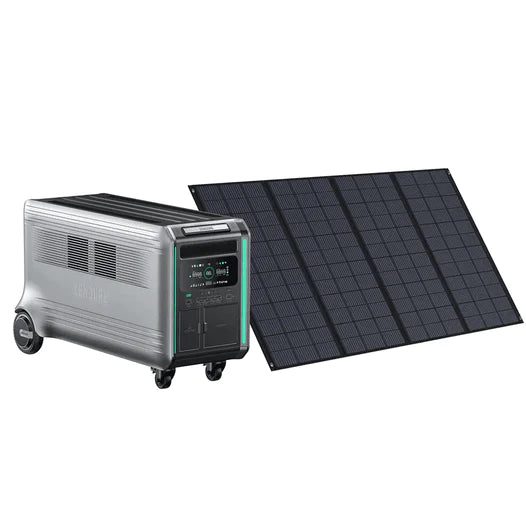

Zendure SuperBase V6400 | 6,438Wh / 3,800W [Quad Kit] + 4 x 200W 12V Mono Solar Panels | Complete Solar Kit

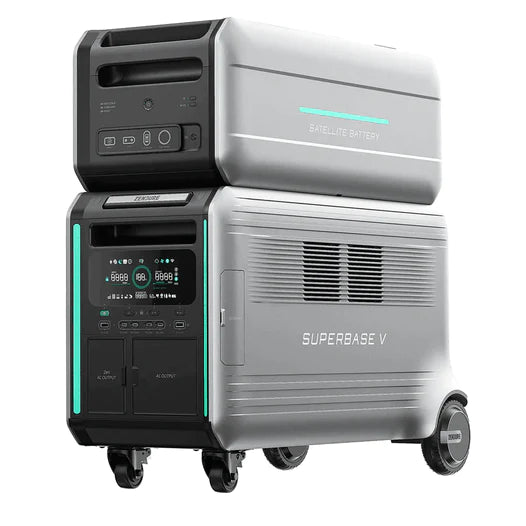

Zendure SuperBase V6400 Quad Kit

What a Concept

SuperBase V is the first plug-and-play home energy storage system designed for the whole house. A customizable energy ecosystem with user-centric design and revolutionary technology, SuperBase V sets a new standard for home energy storage.

Intelligent Energy Management

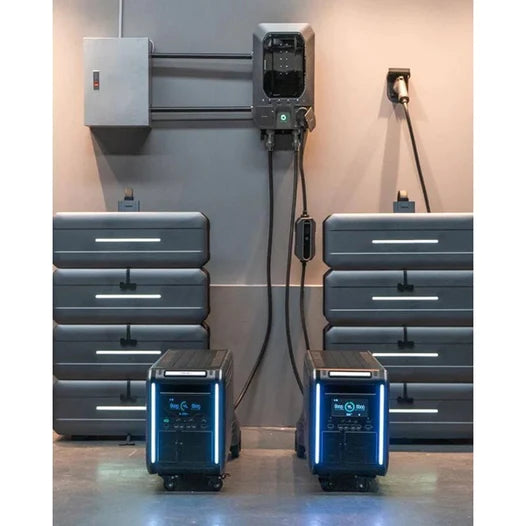

Our Home Panel with EV Outlets connects SuperBase V to your home’s electrical circuits to supply power throughout the house. The Zendure app gives you tools to monitor, manage, and customize your energy use. Using Zendure’s Time of Use tools, you can significantly reduce your energy bill.

What's Included with Your Zendure SuperBase V6400 Quad Kit Order?

• 1 x SuperBase V6400 Solar Generator
• 4 x 200W 12V Monocrystalline Solar Panels - 25-Year Power Output Warranty
• 1 x 10AWG PV Cable Set, 50ft.
• 1 x Satellite Battery Cable
• 1 x AC Cable 1.5m
• 1 x Car Charger Cable 1.5m
• 1 x Accessory Pouch
• 1 x User Manual
• 1 x Warranty Card
• 1 x Universal Wheel
• 1 x Free Digital Copy of our 10,000 word solar generator setup & maintenance guide
• Free Shipping
• Lifetime Customer Support (Via phone, live chat & email)

EV-Grade Semi-Solid State Batteries

SuperBase V is the world's first home energy storage system with semi-solid state batteries. At more than 228Wh/kg, our semi-solid state batteries have up to 42% more energy per pound compared to lithium iron phosphate (LiFePO4) batteries. And with our battery management software, internal battery life can be an amazing 10 years or more.

6.4 to 64kWh Capacity

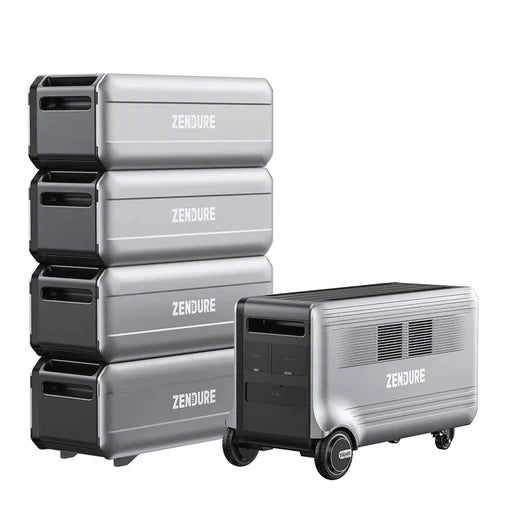

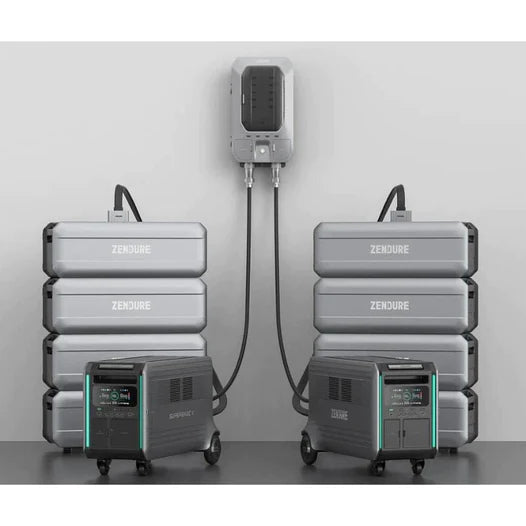

The SuperBase V6400 has a storage capacity of 6.4 kWh (6,438Wh). The maximum configuration for SuperBase V6400 includes two base units and eight Satellite Batteries for a total capacity of 64kWh. This is enough energy to power a typical household for a week or more

3800W to 7600W AC Output

A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.

6600W Multicharge

Combining AC and solar power, SuperBase V can charge up to 5,150W on its own, or 6,600W when connected to a Satellite Battery. Whether you're planning for an emergency or using SuperBase V to manage your household energy consumption, faster is always better.

3000W solar Input

SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.

A Full Charge in 2 Hours

You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.

Plug-and-Play Energy Storage/Use

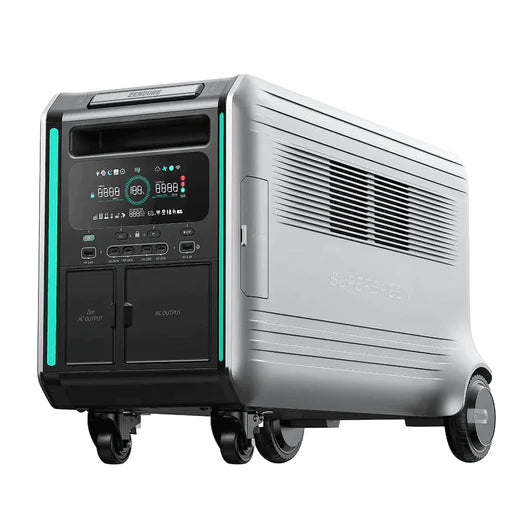

Home batteries can be quite heavy. SuperBase V’s rear wheels are motorized to help lighten the load. Simply pull the handle and enjoy true portability, even on inclined surfaces.

Kit Specifications

Kit Specifications

Zendure Superbase V6400 Specifications

• Capacity: 6,438Wh（Semi-Solid State）
• Dimensions & Weight: 28.7" x 13.6" x 17.4" (73 x 32 x 44.7cm); 130lbs (59kg)
• Extra Battery: Up to 4 (6,438Wh*5=32,190Wh); Up to 64380Wh(2xV6400+8xB6400)
• AC Input: 1,800W 120V; 3,600W 240V
• Solar Input: XT90 x 1:3,000W 10-150Voc
• Car Input: XT90 x 1: 12/24V, 10A
• Battery Input: Yes
• EV Input: ZenT2 Port

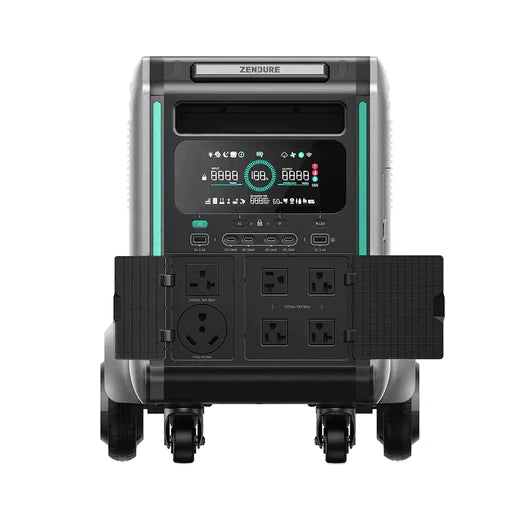

• Output: 4 x 5-20: 15A 1,800W Max (120V AC);
  1 x 6-20: 16A 3,800W Max (240V AC);
  1 x TT-30: 30A 3,600W Max (120V AC)
• Output: 1 x Car Outlet: 12.6V/10A Max;
  2 x DC5521: 12.6C/3A Max;
  1 x Andersen: 12.6V/30A
• Output: USB-C(1)/(2): 5V-20V, 100W Max each;
  USB-C(3)/(4): 5V-12V,20W Max each;
  USB-A(1) (2): 5V/2.4A total
• Charge Temperature: -20°C to 45°C
• Discharge Temperature: -20°C to 45°C
• Connection Type: WIFI/Bluetooth
• APP: Smart App Compatible
• No-Load Power Consumption:
• Standby: 10-11W
• DC ON/AC OFF: 13W
• DC OFF/ AC ON: 60W
• DC ON/AC ON: About 62W

4 x 200 Watts Solar Panel Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 20.4V
• Maximum Power Current(Imp): 9.80A
• Open Circuit Voltage(Voc): 24.3V
• Short Circuit Current(Isc): 10.2A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40°C ~ 90°C
• Max Series Fuse Rating: 15A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in

4 x 200 Watts Solar Panel Features

• 5 bus bar solar cell configuration
• Mono PERC Technology - 19.98% Efficiency
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables (PV) work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings

Built-in Components

• Panel leads (pair): 3 feet each
• IP65 rated waterproof junction box
• IP67 rated waterproof PV connectors
• Bypass diodes built-in the junction box

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25 year limited power output.
• 5 years materials and workmanship.
